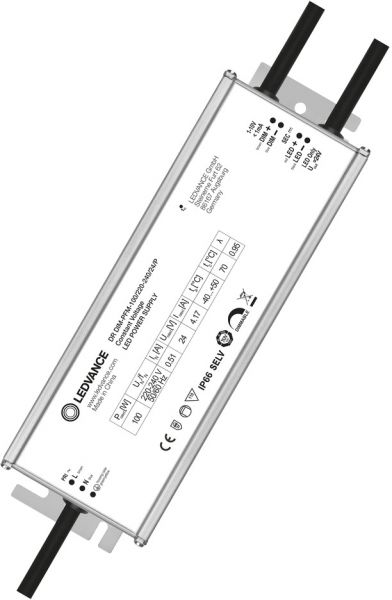

LEDVANCE LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE -100/220-240/24/P
€78.97 *
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Item number: 101402285
EAN: 4058075240070
Constant voltage outdoor LED driver with 1-10 V dimming interface. Product features: Available... more
All information about the product:
"LEDVANCE LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE -100/220-240/24/P"
Constant voltage outdoor LED driver with 1-10 V dimming interface. Product features:
- Available in 20 W, 40 W, 60 W, 100 W, 150 W and 250 W
- Dimmable via 1…10 V dimming control
- Dimmable from 10…100 %
- Lifetime: up to 50,000 h (at max. tc temperature)
- Type of protection: IP66
- Operating temperature range at ta: -40…50 °C
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Surge protection: up to 6 kV (L-N), 6 kV (L/N-PE)
- Short-circuit and overlaod protection
- Perfectly matched to 24 V LED flexible strips
- 5 years guarantee
- Very stable output power
- Quick and simple installation due to prewiring
- High efficiency and reliability
- Installation in very cold and hot environments
- Suitable for indoor and outdoor installations
- Facade and building illumination
- Ideal for illuminating public spaces
- Bathrooms, kitchens and outdoor areas
- Offices, shopping centers, hospitals, restaurants, hotels
Length: | 233 mm |
Width: | 74 mm |
Height: | 42 mm |
Net weight: | 1190 g |
Nominal voltage: | 240 V |
Nominal current: | 506 mA |
Rated power: | 100 W |
Energy consumption: | 100 kWh/1000 |
Lifetime: | 50000 h |
Dimmable: | Yes |
Material: | Metal |
Colour: | Aluminum |
EAN: | 4058075240070 |
