SLV LED bridge driver, 42W, 700mA for NUMINOS®, including radio interface for RF module, DALI

SLV LED-Bridge-Treiber, 42W, 700mA für NUMINOS®, inklusive Funkschnittstelle für RF Modul, DALI

€72.45 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 110057170

EAN: 4024163265805

MPN: 1006460

Dimmable DALI LED bridge driver with 700mA constant current and an output of 12 Watts including... more

Back to the overview

All information about the product:

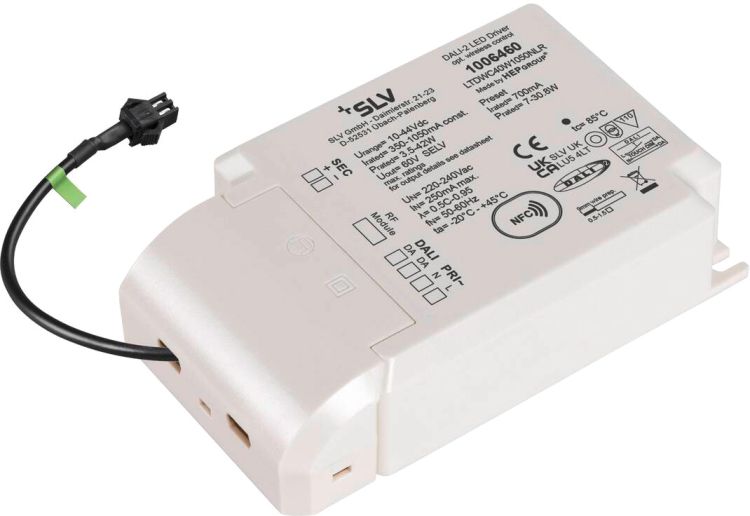

"SLV LED bridge driver, 42W, 700mA for NUMINOS®, including radio interface for RF module, DALI"

Dimmable DALI LED bridge driver with 700mA constant current and an output of 12 Watts including radio interface for the RF module with either Zigbee or Casambi. The LEDs must be connected in series.Technical data:

Product name:	LED Treiber
Colour:	white
Material:	Polycarbonate (PC)
Dimmable:	Yes
Dimming technology:	DALI
Protection category:	II
IP Code:	IP 20
Assembly:	Surface
Length:	123 mm
Width:	79 mm
Height:	30 mm
Output voltage:	10-42
Primary nominal voltage:	220-240V ~50/60Hz
Secondary power / secondary voltage:	500-1050mA
Output current:	700 mA
Number of secondary outputs:	1
Ambient temperature:	-20 - 45 °C
Net weight:	195 g
Inrush current level:	20 A
Inrush current duration:	30 µs
Rated capactiy (Psb):	0.5 W
Efficiency:	87 %
Output Wattage:	5 - 42 W
Rated capacity:	42 W
Rated capactiy (Pnet):	0.5 W
