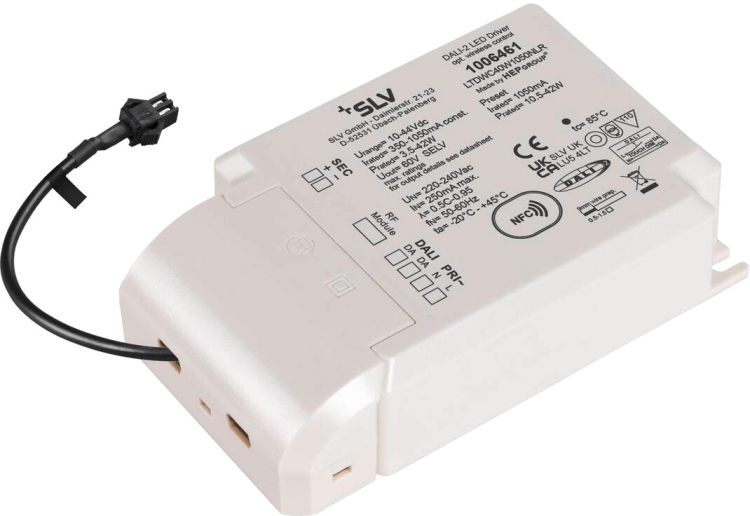

SLV LED bridge driver, 42W, 1050mA for NUMINOS®, including radio interface for RF module, DALI

SLV LED-Bridge-Treiber, 42W, 1050mA für NUMINOS®, inklusive Funkschnittstelle für RF Modul, DALI
€72.45 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110057175
EAN: 4024163265799
Dimmable DALI LED bridge driver with 700mA constant current and an output of 12 Watts including... more
All information about the product:
"SLV LED bridge driver, 42W, 1050mA for NUMINOS®, including radio interface for RF module, DALI"
Dimmable DALI LED bridge driver with 700mA constant current and an output of 12 Watts including radio interface for the RF module with either Zigbee or Casambi. The LEDs must be connected in series.Technical data:
Product name:LED Treiber
Colour:white
Material:Polycarbonate (PC)
Dimmable:Yes
Dimming technology:DALI
Protection category:II
IP Code:IP 20
Assembly:Surface
Length:123 mm
Width:79 mm
Height:30 mm
Output voltage:10-40
Primary nominal voltage:220-240V ~50/60Hz
Secondary power / secondary voltage:500-1050mA
Output current:1050 mA
Number of secondary outputs:1
Ambient temperature:-20 - 45 °C
Net weight:195 g
Inrush current level:20 A
Inrush current duration:30 µs
Rated capactiy (Psb):0.5 W
Rated capactiy (Pnet):0.5 W
Rated capacity:42 W
Efficiency:87 %
Output Wattage:5 - 42 W
Further links
We will be happy to advise you!
You can reach us:
Mon-Fri: 08:00 am – 05:00 pm
You can find answers to frequently asked questions here: Service & help
Including buyer protection
Verified identity
Protection of personal data
Learn more about us! Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads for the product:
"SLV LED bridge driver, 42W, 1050mA for NUMINOS®, including radio interface for RF module, DALI"
Document type File size
Operating instructions
(0.54 MB)
0.54 MB
Data sheet
(0.10 MB)
0.10 MB
Certificate
(0.28 MB)
0.28 MB
