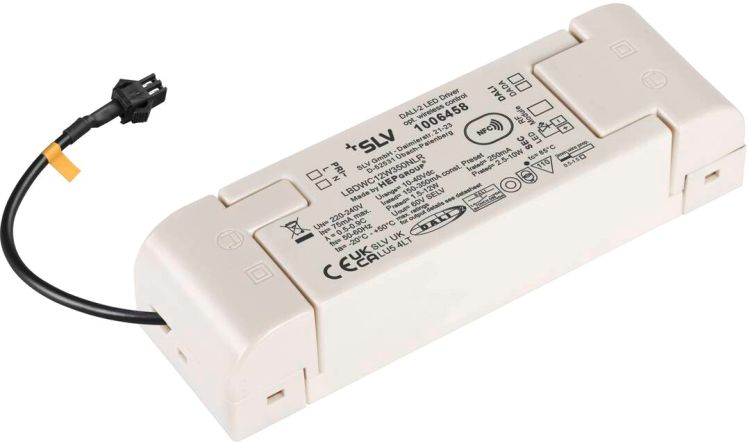

SLV LED bridge driver, 12W, 250mA for NUMINOS®, including radio interface for RF module, DALI
€62.09 *
Availability:
Delivery time: 5-7 days
Delivery time: approx. 5-7 days
Item number: 110057160
EAN: 4024163265829
Dimmable DALI LED bridge driver with 250mA constant current and an output of 12 watts including... more
All information about the product:
"SLV LED bridge driver, 12W, 250mA for NUMINOS®, including radio interface for RF module, DALI"
Dimmable DALI LED bridge driver with 250mA constant current and an output of 12 watts including radio interface for the RF module with either Zigbee or Casambi. The LEDs must be connected in series.Technical data:
| Product name: | LED Treiber |
| Colour: | white |
| Material: | Polycarbonate (PC) |
| Dimmable: | Yes |
| Dimming technology: | DALI |
| Protection category: | II |
| IP Code: | IP 20 |
| Assembly: | Surface |
| Length: | 141.8 mm |
| Width: | 43.8 mm |
| Height: | 30 mm |
| Output voltage: | 10-40 |
| Primary nominal voltage: | 220-240V ~50/60Hz |
| Secondary power / secondary voltage: | 150-350mA |
| Output current: | 250 mA |
| Number of secondary outputs: | 1 |
| Ambient temperature: | -20 - 50 °C |
| Net weight: | 140 g |
| Inrush current level: | 15.8 A |
| Inrush current duration: | 25.6 µs |
| Rated capactiy (Psb): | 0.5 W |
| Efficiency: | 80 % |
| Output Wattage: | 1.5 - 12 W |
| Rated capacity: | 12 W |
| Rated capactiy (Pnet): | 0.5 W |
Further links
- Do you have any questions concerning this product?
- Further products by SLV
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:SLV GmbH
Daimlerstraße 21-23
DE-52531 Übach-Palenberg
info@slv.de -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"SLV LED bridge driver, 12W, 250mA for NUMINOS®, including radio interface for RF module, DALI"
| Document type | File size | |
|
Operating instructions | 0.57 MB |
|
|
Data sheet | 0.10 MB |
|
|
Certificate | 0.28 MB |
