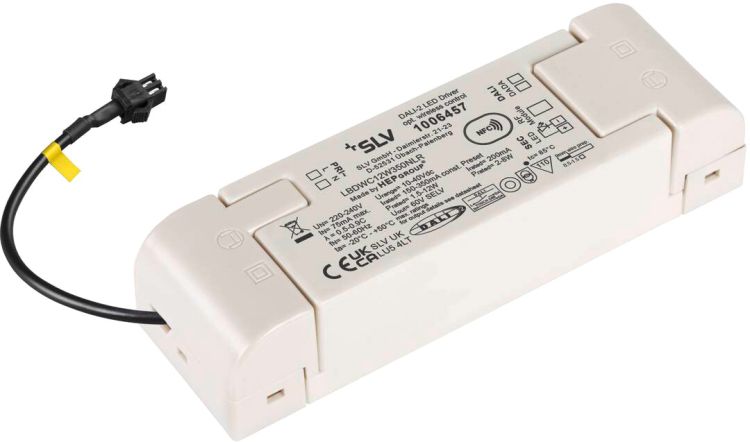

SLV LED bridge driver, 12W, 200mA for NUMINOS®, including radio interface for RF module, DALI
€62.09 *
Availability:
Delivery time: 5-7 days
Delivery time: approx. 5-7 days
Item number: 110057155
EAN: 4024163265836
Dimmable DALI LED bridge driver with 200mA constant current and an output of 12 Watts including... more
All information about the product:
"SLV LED bridge driver, 12W, 200mA for NUMINOS®, including radio interface for RF module, DALI"
Dimmable DALI LED bridge driver with 200mA constant current and an output of 12 Watts including radio interface for the RF module with either Zigbee or Casambi. The LEDs must be connected in series.Technical data:
| Product name: | LED Treiber |
| Colour: | white |
| Material: | Polycarbonate (PC) |
| Dimmable: | Yes |
| Dimming technology: | DALI |
| Protection category: | II |
| IP Code: | IP 20 |
| Assembly: | Surface |
| Length: | 141.8 mm |
| Width: | 43.8 mm |
| Height: | 30 mm |
| Output voltage: | 10-40 |
| Primary nominal voltage: | 220-240V ~50/60Hz |
| Secondary power / secondary voltage: | 150-350mA |
| Output current: | 200 mA |
| Number of secondary outputs: | 1 |
| Ambient temperature: | -20 - 50 °C |
| Net weight: | 140 g |
| Inrush current level: | 15.8 A |
| Inrush current duration: | 25.6 µs |
| Rated capactiy (Psb): | 0.5 W |
| Efficiency: | 80 % |
| Output Wattage: | 1.5 - 12 W |
| Rated capacity: | 12 W |
| Rated capactiy (Pnet): | 0.5 W |
