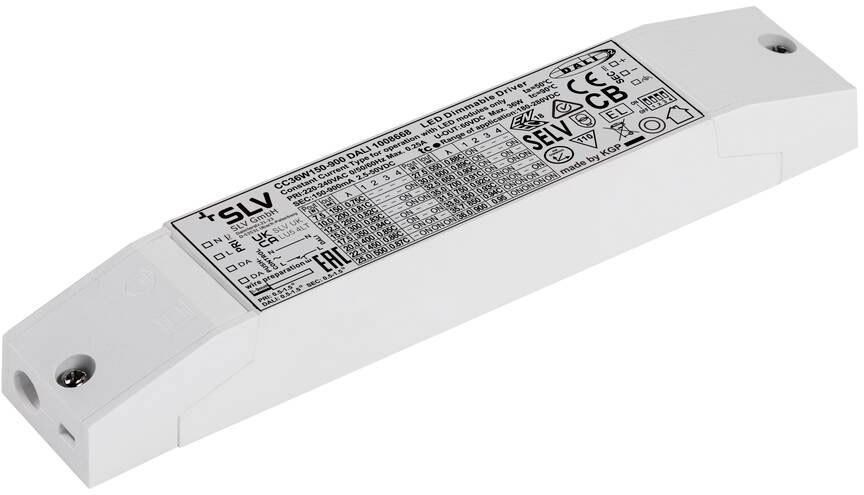

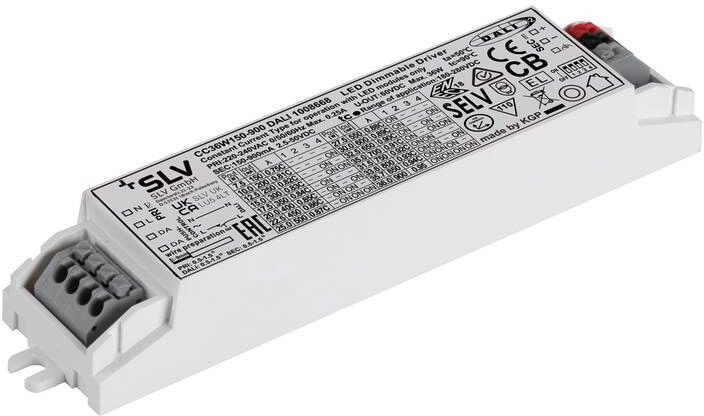

SLV LED driver 36W, 100-900mA, DALI
NEW
€60.14 *
Availability:
Currently not available.
Expected to be available again in 4 days.
Expected to be available again in 4 days.
Currently not available
Item number: 110063770
EAN: 4024163297318
NEW
This DALI and push-dim capable constant current driver with 36W output offers an adjustable... more
All information about the product:
"SLV LED driver 36W, 100-900mA, DALI"

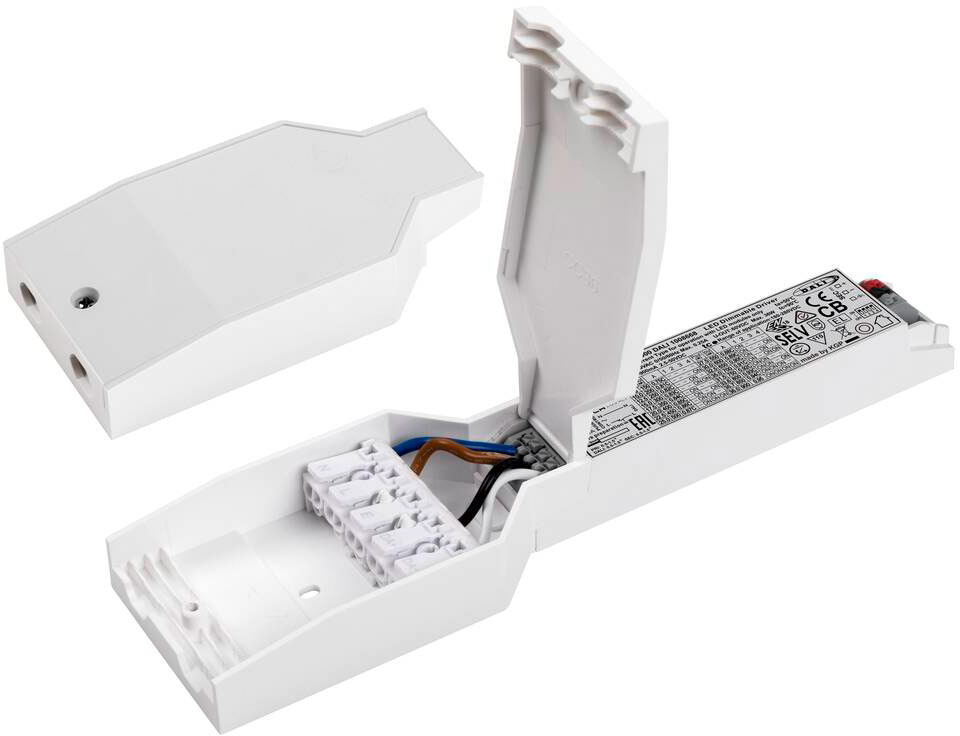

This DALI and push-dim capable constant current driver with 36W output offers an adjustable current via DIP: 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA, 800mA, 850mA, 900mA. A strain relief is optionally availableTechnical data:
Product name: | Driver |
Colour: | white |
Material: | Plastic PC |
electrical power: | 40.9 W |
Dimmable: | Yes |
Dimming technology: | Touch |
IP Code: | IP20 |
Length: | 128 mm |
Width: | 300 mm |
Height: | 21 mm |
Output voltage: | 2.5 50 |
Primary nominal voltage: | 220-240V ~50/60 Hz |
Output current: | 150 900 mA |
Number of secondary outputs: | 1 |
Ambient temperature: | 90 °C |
Ambient temperature: | -20 - 50 °C |
Net weight: | 100 g |
Inrush current level: | 8.5 A |
Inrush current duration: | 16 µs |
Efficiency: | 88 % |
Rated capacity: | 40.9 W |
Output Wattage: | 0.37 - 36 W |
