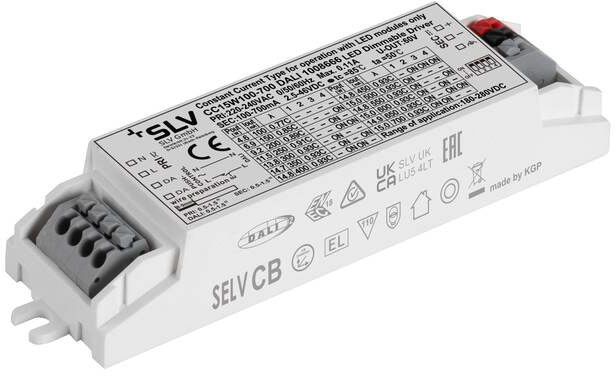

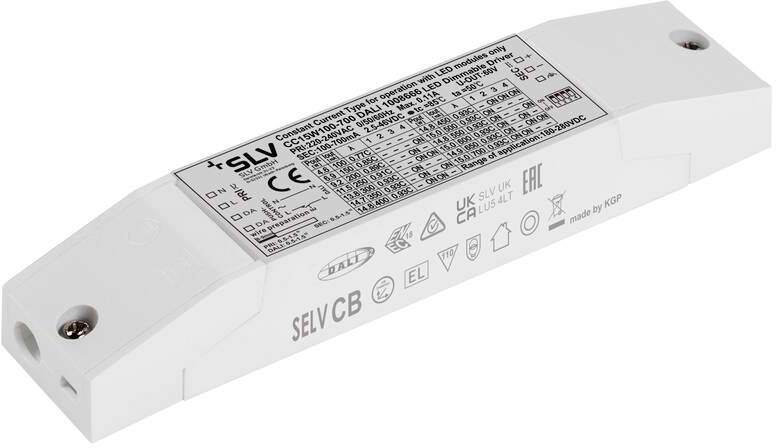

SLV LED driver 15W, 100-700mA, DALI
NEW
€51.45 *
Availability:
Currently not available.
Expected to be available again in 6 days.
Expected to be available again in 6 days.
Currently not available
Item number: 110063760
EAN: 4024163297332
NEW
This DALI and push-dim capable constant current driver with 15W output offers an adjustable... more
All information about the product:
"SLV LED driver 15W, 100-700mA, DALI"

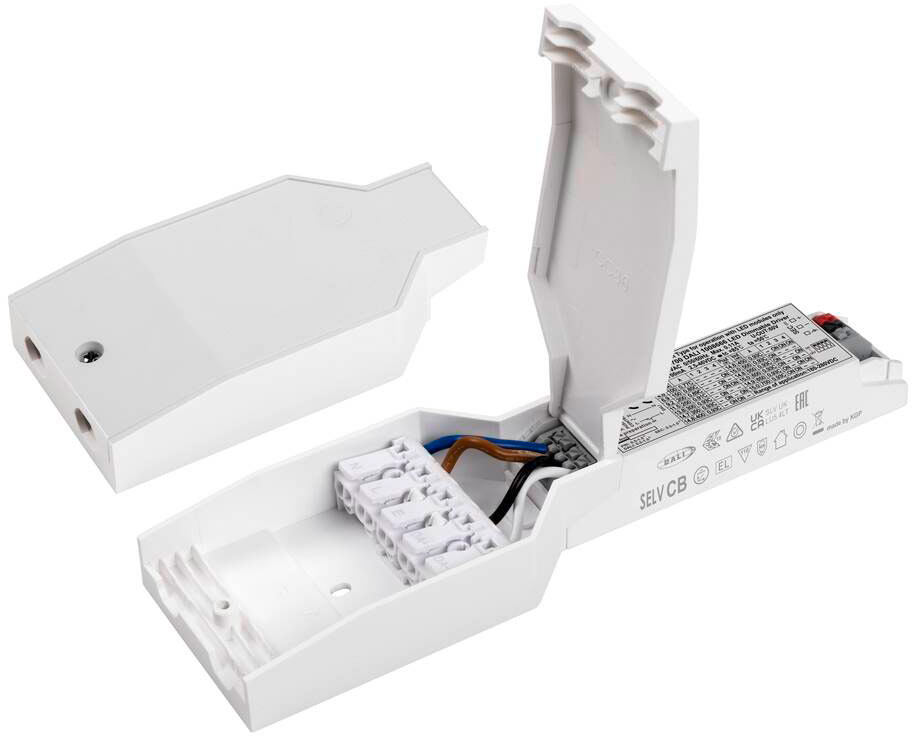

This DALI and push-dim capable constant current driver with 15W output offers an adjustable current via DIP: 100mA, 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA. A strain relief is optionally availableTechnical data:
Product name: | Driver |
Colour: | white |
Material: | Plastic PC |
electrical power: | 17.7 W |
Dimmable: | Yes |
Dimming technology: | Touch |
IP Code: | IP20 |
Length: | 103.4 mm |
Width: | 30 mm |
Height: | 21 mm |
Output voltage: | 2.5 46 |
Primary nominal voltage: | 220-240V ~50/60 Hz |
Secondary power / secondary voltage: | 100-700mA |
Output current: | 100 700 mA |
Number of secondary outputs: | 1 |
Ambient temperature: | 85 °C |
Ambient temperature: | -20 - 50 °C |
Net weight: | 76 g |
Inrush current level: | 7.2 A |
Inrush current duration: | 2.6 µs |
Efficiency: | 87 % |
Output Wattage: | 0.25 - 15 W |
Rated capacity: | 17.7 W |
Further links
We will be happy to advise you!
You can reach us:
Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Downloads for the product:
"SLV LED driver 15W, 100-700mA, DALI"
Document type | File size | |
Operating instructions
(0.31 MB)
|
0.31 MB | |
Certificate
(0.10 MB)
|
0.10 MB | |
Certificate
(0.46 MB)
|
0.46 MB |
We will be happy to advise you!
You can reach us:
Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
NEW
SLV Strain relief, standard, for DALI-dimmable drivers: 1008666, 1008667, 1008668
€0.62
*
incl. tax,
plus shipping costs
Availability:
Currently not available
Currently not available
NEW
SLV Strain relief through-wirable, for DALI dimmable drivers: 1008666, 1008667, 1008668
€1.67
*
incl. tax,
plus shipping costs
Availability:
Currently not available
Currently not available
