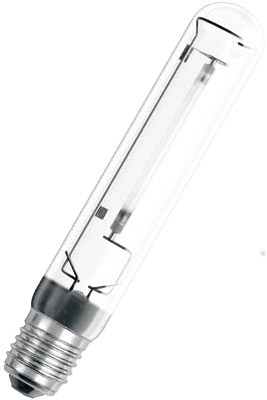

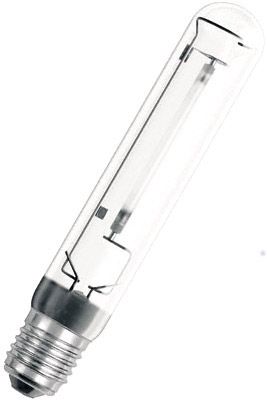

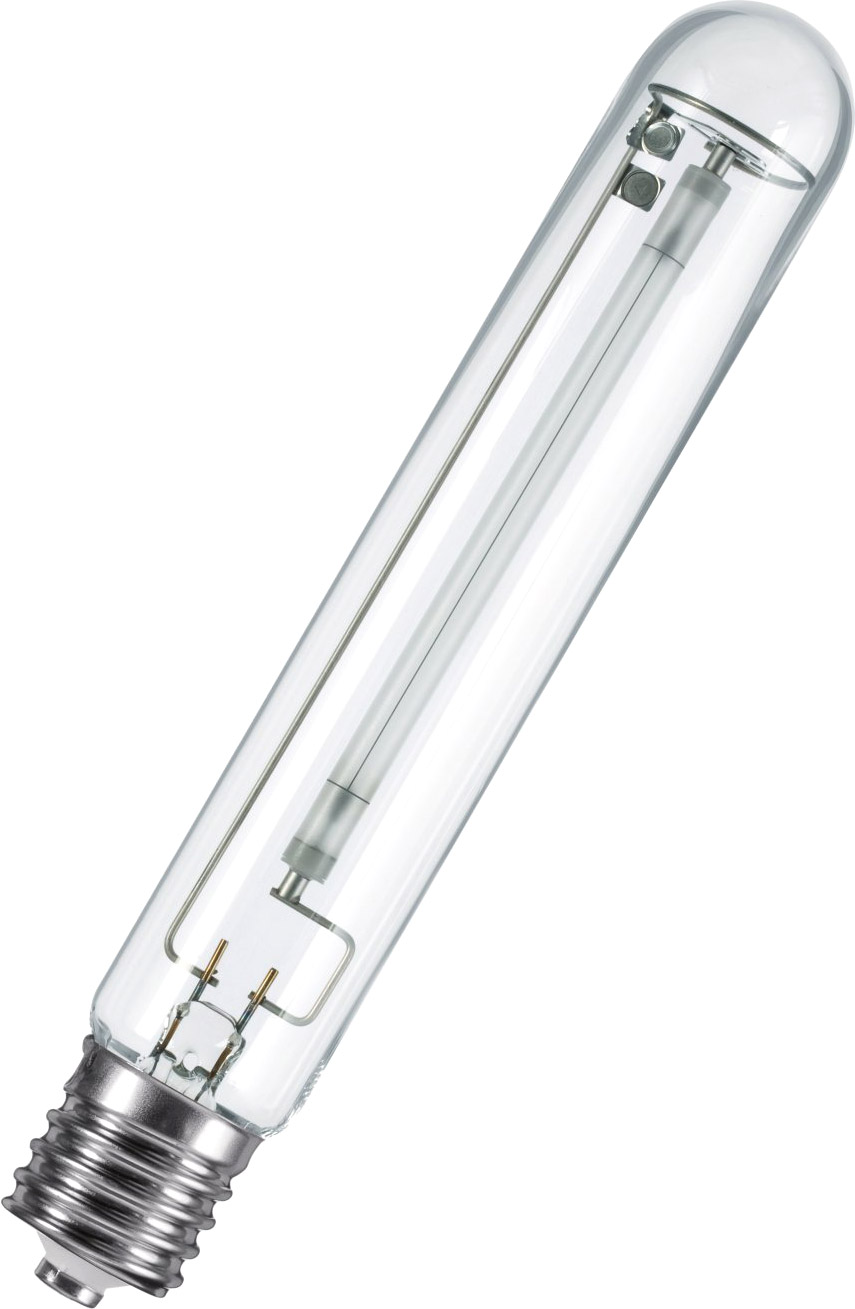

OSRAM VIALOX® NAV®-T SUPER 4Y® 50…400 W 100 W SUPER 4Y
€10.58 *
€13.14 *
(19.48% Saved)
incl. tax,
plus shipping costs
Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 100211290
EAN: 4050300015743
High-pressure sodium vapor lamps for open and enclosed luminaires. Product features: Lamp... more
All information about the product:
"OSRAM VIALOX® NAV®-T SUPER 4Y® 50…400 W 100 W SUPER 4Y"
High-pressure sodium vapor lamps for open and enclosed luminaires. Product features:
- Lamp survival factor: 95 % after 16,000 h burning time
- Lamp maintenance factor: = 80 % after 16,000 h burning time (according to DIN 13201)
- Service lifetime: 4 years (at approx
- 11 h/day)
- Dimmable on conventional control gears and electronic control gears
- Very high luminous efficacy
- Very good luminous flux maintenance throughout the life of the lamp
- Energy savings of up to 50 % when replacing mercury vapor lamps (HQL)
- Optimum energy efficiency on POWERTRONIC® PTo 3DIM ECGs
- Streets
- Outdoor lighting
- Industrial installations
- Suitable for use in open and enclosed luminaires
- Outdoor applications only in suitable luminaires
| Length: | 211 mm |
| Width: | 47 mm |
| Diameter: | 47 mm |
| Net weight: | 110 g |
| Socket: | E40 |
| Nominal voltage: | 100 V |
| Nominal current: | 1200 mA |
| Rated power: | 100 W |
| Energy consumption: | 106 kWh/1000 |
| Colour temperature: | 2000 K |
| Luminous flux: | 10300 lm |
| Colour rendering: | 25 CRI |
| Lifetime: | 32000 h |
| Energy efficiency class: | F |
| Dimmable: | Yes |
| EAN: | 4050300015743 |
