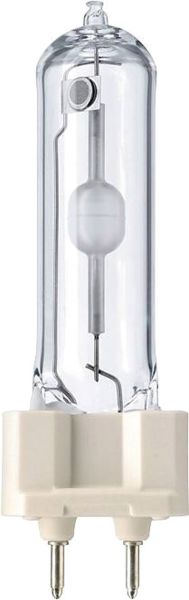

Philips MASTERColour CDM-T Elite G12 70W/930 7750lm

Specifications

Cap-Base:

G12 [ G12]

Operating Position:

UNIVERSAL [ Any or Universal (U)]

Life to 5% Failures (Nom):

12000 h

Life to 10% Failures (Nom):

14000 h

Life to 20% Failures (Nom):

16000 h

Life to 50% Failures (Nom):

20000 h

ANSI Code HID:

C139/E

Color Code:

930 [ CCT of 3000K]

Luminous Flux (Rated) (Nom):

7800 lm

Color Designation:

Warm White (WW)

Lumen Maintenance 1000 h (Nom):

97 %

Lumen Maintenance 12000 h (Nom):

82 %

Lumen Maintenance 10000 h (Nom):

83 %

Lumen Maintenance 2000 h (Nom):

95 %

Lumen Maintenance 4000 h (Nom):

90 %

Lumen Maintenance 5000 h (Nom):

88 %

Chromaticity Coordinate X (Nom):

0.435

Chromaticity Coordinate Y (Nom):

0.396

Correlated Color Temperature (Nom):

3000 K

Luminous Efficacy (Rated) (Nom):

103 lm/W

Color Rendering Index (Min):

87

Color Rendering Index (Nom):

90

Power (Rated) (Nom):

73 W

Lamp Current Run-Up (Max):

2 A

Lamp Current (EM) (Nom):

1 A

Ignition Supply Voltage (Max):

198 V

Ignition Peak Voltage (Max):

5000 V

Ignition Supply Voltage (Min):

198 V

Re-Ignition Time (Min) (Max):

15 min

Ignition Time (Max):

30 s

Voltage (Max):

90 V

Voltage (Min):

79 V

Voltage (Nom):

85 V

Dimmable:

No

Run-Up Time 90% (Max):

3 min

Run-Up Time 90% (Nom):

1.5 min

Bulb Finish:

Clear

Energy Efficiency Label (EEL):

A+

Mercury (Hg) Content (Nom):

6.6 mg

Energy Consumption kWh/1000 h:

80 kWh

Pet (Niosh) (Min):

8 h/500lx

Damage Factor D/fc (Max):

0.3

Bulb Temperature (Max):

500 °C

Cap-Base Temperature (Max):

250 °C

Pinch Temperature (Max):

350 °C

Net Weight (Piece):

0.029 kg
