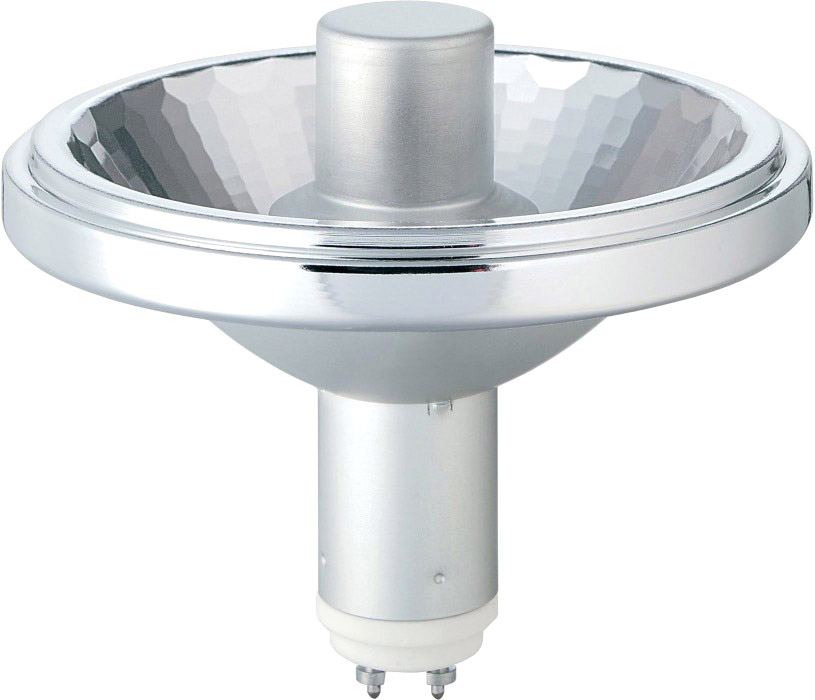

Philips MASTERColour CDM-R111 70W 24° 942
Quantity | Unit price | You save |
---|---|---|
From 6 | €51.00 * | 6.52 % |
Specifications | |
General Information | |
Cap-Base: | GX8.5 [ GX8.5] |
Operating Position: | UNIVERSAL [ Any or Universal (U)] |
Life to 5% Failures (Nom): | 7500 h |
Life to 10% Failures (Nom): | 8500 h |
Life to 20% Failures (Nom): | 9500 h |
Life to 50% Failures (Nom): | 11000 h |
ANSI Code HID: | M139/O |
Switching Cycle: | 1000X |
Light Technical | |
Color Code: | 942 [ CCT of 4200K] |
Beam Angle (Nom): | 24 ° |
Beam Angle Technical (Nom): | 23 ° |
Beam Angle Technical (Max): | 28 ° |
Beam Angle Technical (Min): | 18 ° |
Luminous Flux (Rated) (Nom): | 2850 lm |
Luminous Intensity (Min): | 11000 cd |
Luminous Intensity (Nom): | 14500 cd |
Beam Description: | Narrow Flood |
Color Designation: | Cool White (CW) |
Chromaticity Coordinate X (Nom): | 0.381 |
Chromaticity Coordinate Y (Nom): | 0.370 |
Correlated Color Temperature (Nom): | 4200 K |
Color Rendering Index (Nom): | 96 |
LLMF At End Of Nominal Lifetime (Nom): | 60 % |
Luminous Flux in 90° Cone (Rated): | 2800 lm |
Operating and Electrical | |
Power (Rated) (Nom): | 73 W |
Ignition Supply Voltage (Max): | 198 V |
Ignition Supply Voltage (Min): | 198 V |
Re-Ignition Time (Min) (Max): | 15 min |
Warm Up Time to 60% Light (Nom): | 120 s |
Ignition Time (Max): | 30 s |
Voltage (Max): | 114 V |
Voltage (Min): | 79 V |
Voltage (Nom): | 92 V |
Controls and Dimming | |
Dimmable: | No |
Run-Up Time 90% (Max): | 3 min |
Mechanical and Housing | |
Bulb Finish: | Reflector |
Approval and Application | |
Energy Efficiency Label (EEL): | B |
Mercury (Hg) Content (Nom): | 6.3 mg |
Energy Consumption kWh/1000 h: | 80 kWh |
UV | |
Pet (Niosh) (Min): | 8 h/500lx |
Damage Factor D/fc (Max): | 0.3 |
Product Data | |
Net Weight (Piece): | 0.095 kg |
