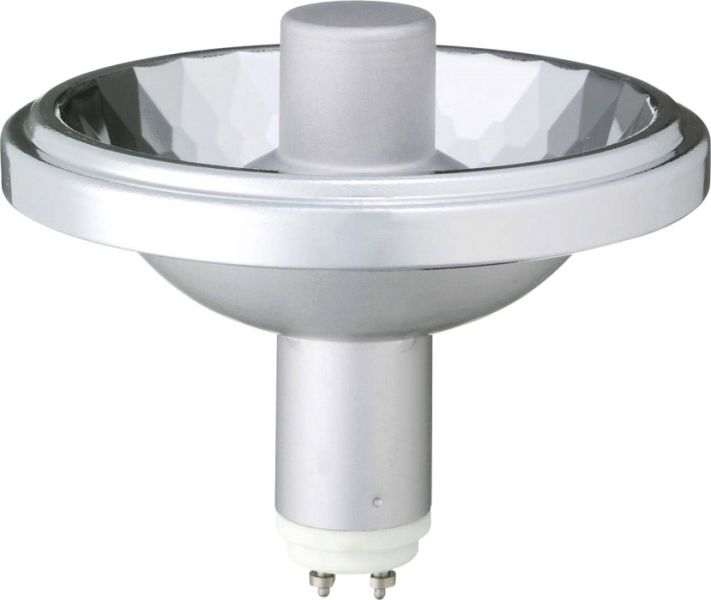

PHILIPS MASTERC CDM-R111 Elite 70W/930 GX8.5 10D

Specifications

Cap-Base:

GX8.5 [ GX8.5]

Operating Position:

UNIVERSAL [ Any or Universal (U)]

Life to 5% Failures (Nom):

8000 h

Life to 10% Failures (Nom):

9500 h

Life to 20% Failures (Nom):

10500 h

Life to 50% Failures (Nom):

12000 h

ANSI Code HID:

C139/O

Switching Cycle:

1050X

Color Code:

930 [ CCT of 3000K]

Beam Angle (Nom):

10 °

Beam Angle Technical (Nom):

11 °

Beam Angle Technical (Max):

13 °

Beam Angle Technical (Min):

9 °

Luminous Intensity (Min):

34000 cd

Luminous Intensity (Nom):

45000 cd

Beam Description:

Spot

Color Designation:

Warm White (WW)

Lumen Maintenance 12000 h (Nom):

70 %

Lumen Maintenance 2000 h (Nom):

90 %

Lumen Maintenance 4000 h (Nom):

85 %

Design Mean Lumens:

2400 lm

Chromaticity Coordinate X (Nom):

0.441

Chromaticity Coordinate Y (Nom):

0.397

Correlated Color Temperature (Nom):

3000 K

Luminous Efficacy (Rated) (Nom):

39 lm/W

Color Rendering Index (Min):

89

Color Rendering Index (Nom):

92

LLMF At End Of Nominal Lifetime (Nom):

70 %

Luminous Flux in 90° Cone (Rated):

2750 lm

Power (Rated) (Nom):

73.0 W

Re-Ignition Time (Min) (Max):

15 min

Warm Up Time to 60% Light (Nom):

120 s

Ignition Time (Max):

30 s

Voltage (Max):

98 V

Voltage (Min):

80 V

Voltage (Nom):

89 V

Dimmable:

No

Run-Up Time 90% (Max):

3 min

Bulb Finish:

Reflector

Energy Efficiency Label (EEL):

B

Mercury (Hg) Content (Nom):

6.6 mg

Energy Consumption kWh/1000 h:

80 kWh

Net Weight (Piece):

96.000 g
