PHILIPS CorePro LED PLL HF 8W 830 4P 2G11
NEW
€13.09 *
incl. tax,
plus shipping costs
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Item number: 100425960
EAN: 8719514486768
MPN: 929003578802
NEW
PHILIPS CorePro LED PLL HF 8W 830 4P 2G11 Philips CorePro LED PLL is the ideal uplamping... more
All information about the product:
"PHILIPS CorePro LED PLL HF 8W 830 4P 2G11"

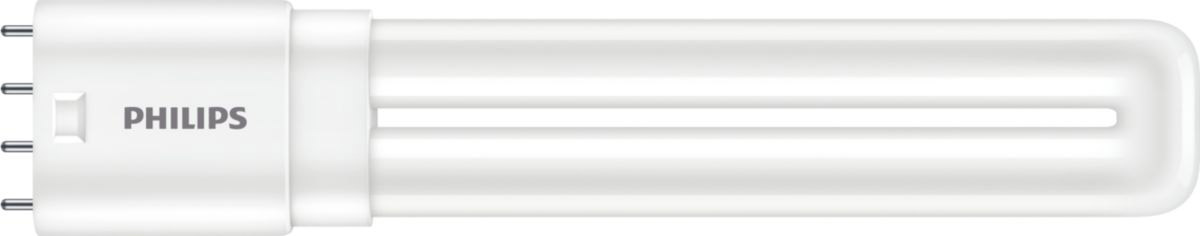

PHILIPS CorePro LED PLL HF 8W 830 4P 2G11
Philips CorePro LED PLL is the ideal uplamping solution for downlights & luminaires in a wide range of general lighting applications. It integrates a LED light source into a traditional fluorescent form factor to offer superb energy savings over a lifetime that’s twice as long as fluorescent alternatives.

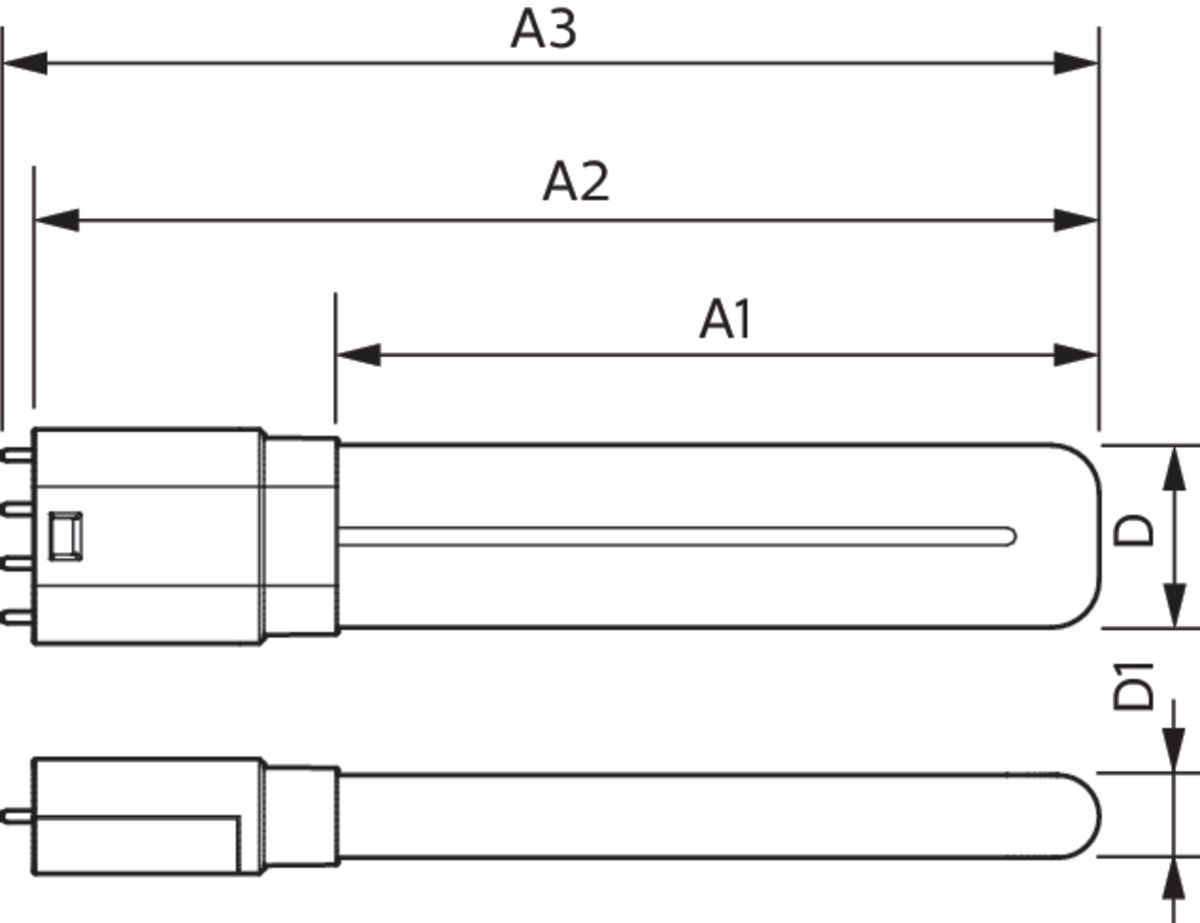

Technical data:| Length: | 224 mm |
| Width: | 38 mm |
| Height: | 38 mm |
| Diameter: | 38 mm |
| Socket: | 2G11 |
| Nominal voltage: | 20-60 V |
| Nominal power: | 8 W |
| Nominal current: | 150-500 mA |
| Energy consumption: | 8 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | Warm white |
| Beam angle: | 160° |
| Luminous flux: | 960 lm |
| Luminous efficacy: | 120 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 30000 h |
| Switching cycles: | 50000 |
| Protection class: | IP20 |
| Energy efficiency class: | E |
| Colour: | White |
| Lamp shape: | Tube, single-ended |
| Filament lamp: | no |
| Type of glass/cover: | Frosted |
| Colour consistency (McAdam ellipse): | SDCM6 |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Power factor: | 0.9 |
| Energy Efficiency Index (EEI): | 0.1336 |
| Total harmonic distortion: | 0.15 |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| With twilight switch: | no |
| Photobiological safety according to EN 62471: | RG0 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
| Voltage type: | AC |
| Suitable for electronic ballast: | yes |
| Suitable for magnetic ballast: | no |
