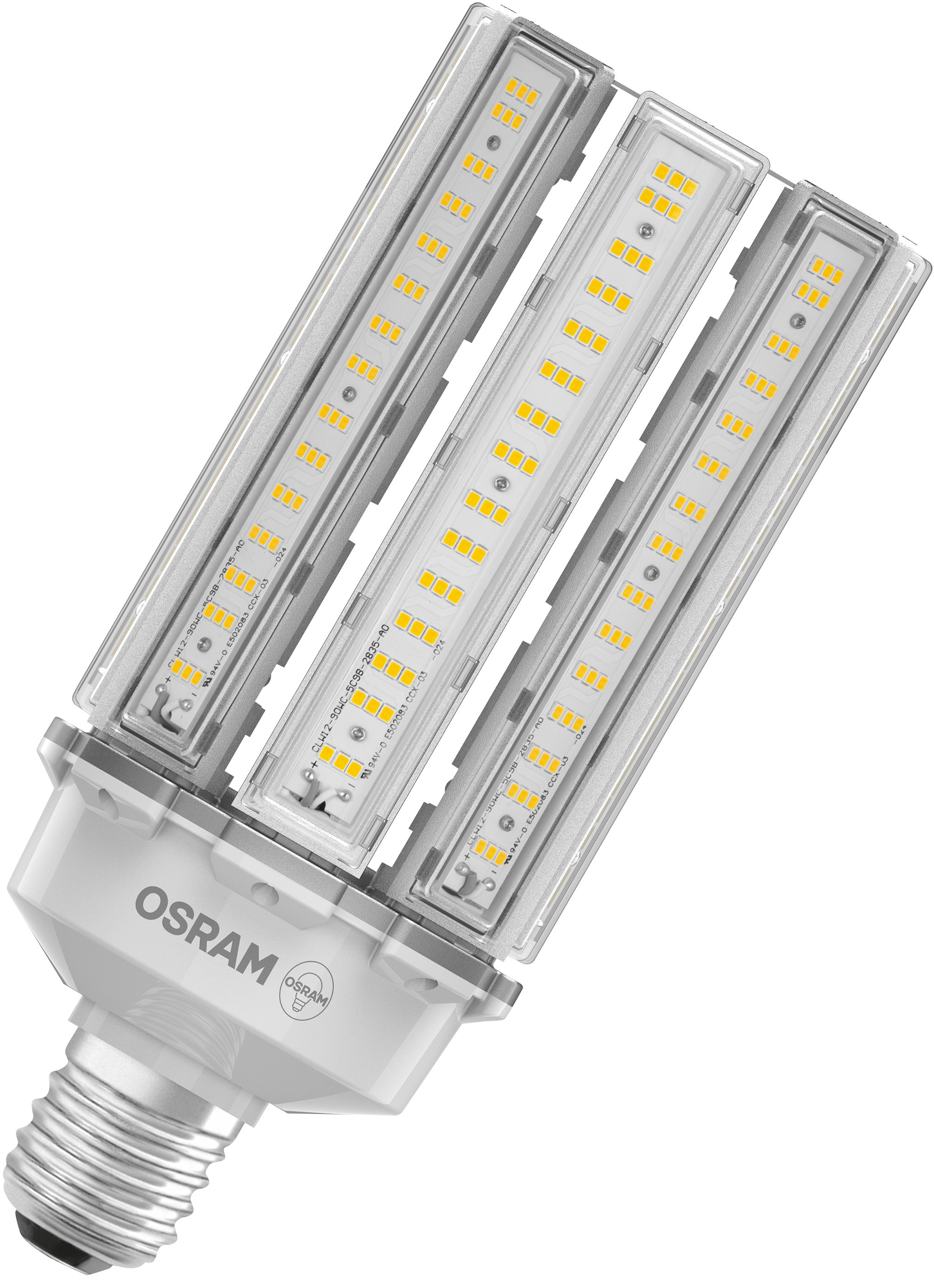

OSRAM HQL LED PRO 13000 lm 90 W/4000 K E40
NEW
€132.09 *
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Item number: 100232555
EAN: 4058075612570
MPN: 4058075612570
NEW
OSRAM HQL LED PRO 13000 lm 90 W/4000 K E40 LED replacement for HID lamps for outdoor... more
All information about the product:
"OSRAM HQL LED PRO 13000 lm 90 W/4000 K E40"
OSRAM HQL LED PRO 13000 lm 90 W/4000 K E40
LED replacement for HID lamps for outdoor application. Product features: Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains. Replacement for other HID: Suitable for operation with line voltage without control gear. Power factor: 0.9. Type of protection: IP65. High surge protection: up to 6 kV (L-N). Product benefits: Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL). Low maintenance costs thanks to long lifetime. Instant 100 % light, no warm-up time. Areas of application: Streets. Area lighting. Pedestrian zones. Parks. Outdoor applications only in suitable luminaires.

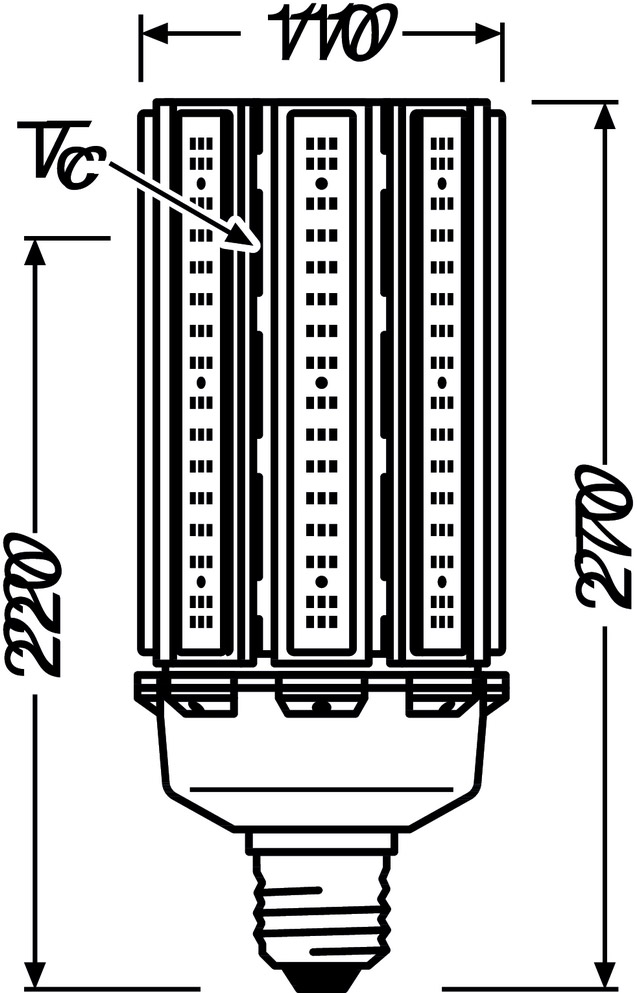

Technical data:| Length: | 270 mm |
| Width: | 110 mm |
| Height: | 110 mm |
| Diameter: | 110 mm |
| Weight: | 1380 g |
| Socket: | E40 |
| Nominal voltage: | 220 V |
| Nominal power: | 90 W |
| Nominal current: | 410 mA |
| Energy consumption: | 90 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Neutral white |
| Beam angle: | 360° |
| Luminous flux: | 13000 lm |
| Luminous efficacy: | 144 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 50000 h |
| Switching cycles: | 100000 |
| Protection class: | IP65 |
| Energy efficiency class: | D |
| Colour: | Grey |
| Power factor: | 0.90 |
| Voltage type: | AC |
| Filament lamp: | no |
| Type of glass/cover: | Clear |
| Colour consistency (McAdam ellipse): | SDCM6 |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Total harmonic distortion: | 20 |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| Photobiological safety according to EN 62471: | RG0 |
| IFTTT support available: | no |
