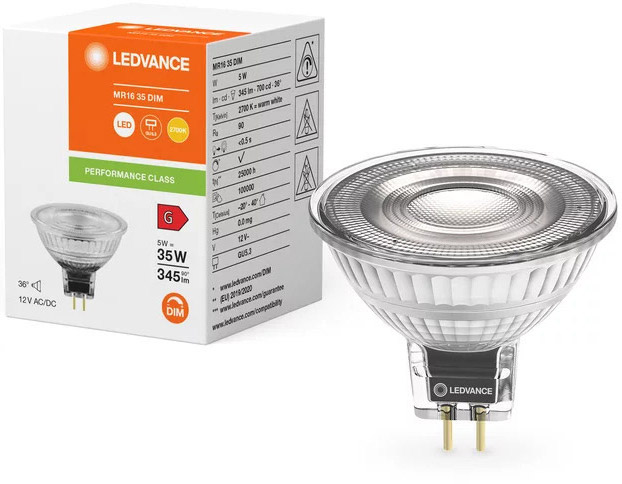

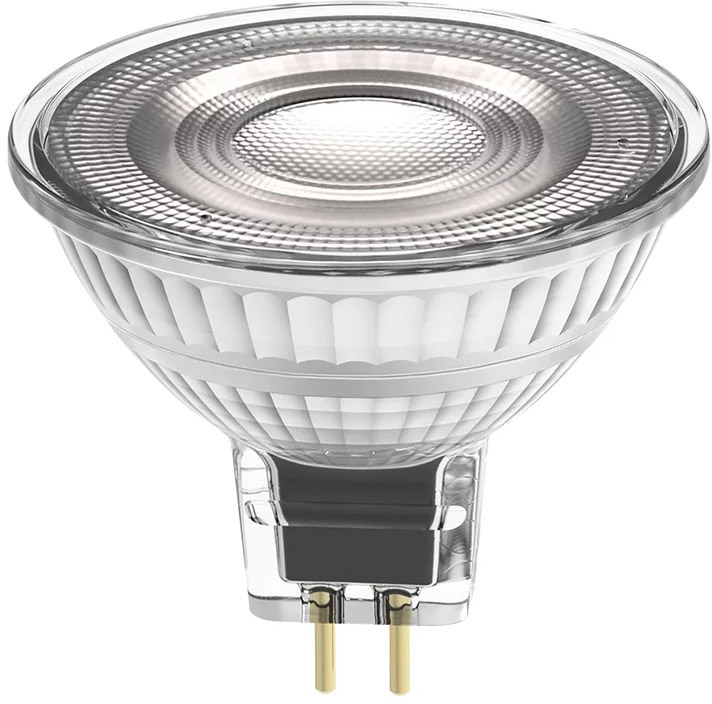

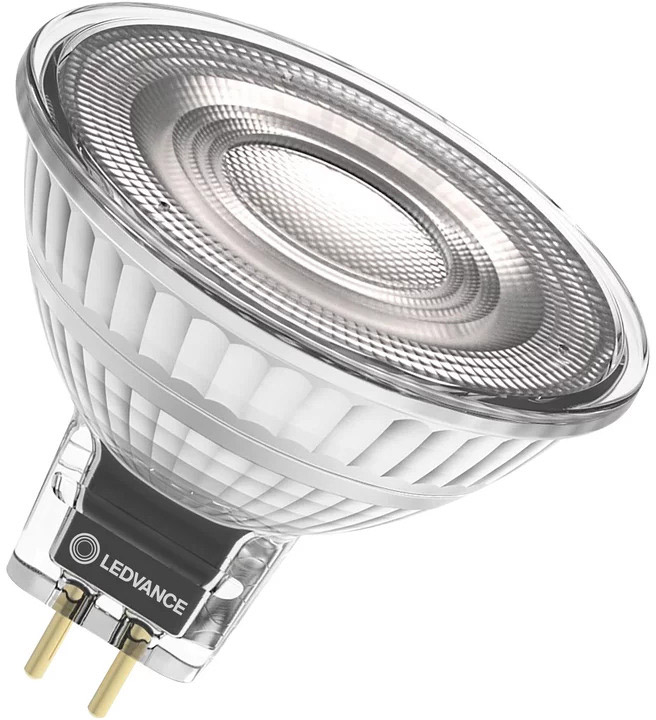

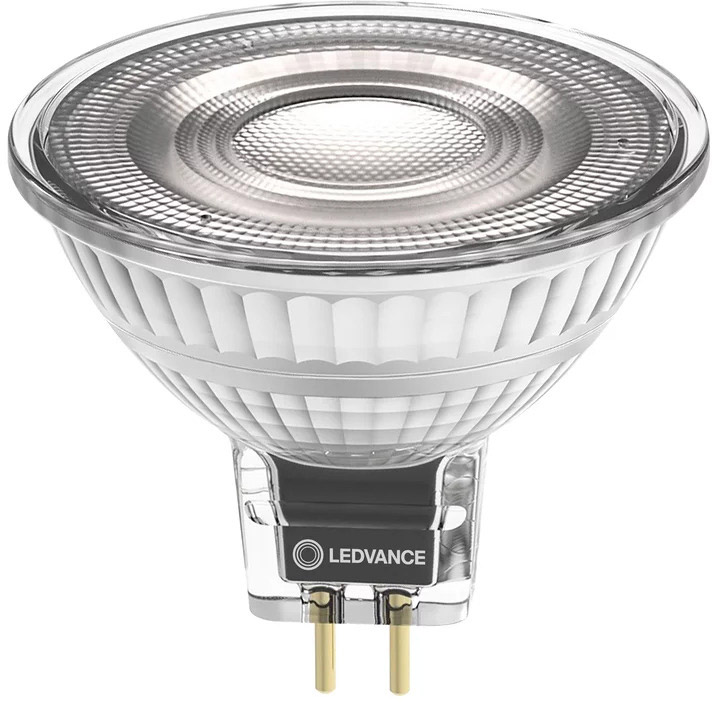

Ledvance LED MR16 DIM P 5W 927 GU5.3

€5.84 *

incl. tax, plus shipping costs

Express delivery possible

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 101408745

EAN: 4099854059698

Product benefits Quick, simple and safe replacement without rewiring Design,... more

Back to the overview

All information about the product:

"Ledvance LED MR16 DIM P 5W 927 GU5.3"

Product benefits

Quick, simple and safe replacement without rewiring
Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Low maintenance costs thanks to long lifetime
No UV and near-IR radiation in the light beam
Stepless dimming
Very high dimmer compatibility, see also www.ledvance.com/dim
Compatible with many common conventional and electronic control gears (see also compatibility list)
Instant 100 % light, no warm-up time

Technical Data
Electrical data
Nominal wattage	5 W
Construction wattage	5.00 W
Nominal voltage	12 V
Operating mode	12V AC/DC
Claimed equiv. conventional lamp power	35 W
Nominal current	450 mA
Type of current	AC/DC
Inrush current	12.8 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Total harmonic distortion	150 %
Power factor λ	> 0.50

Photometrical data
Luminous intensity	700 cd
Luminous flux	345 lm
Nominal useful luminous flux 90°	345 lm
Luminous efficacy	69 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	90
Light color	927
Standard deviation of color matching	≤5 sdcm
Rated peak intensity	700 cd
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	<0.4

Light technical data
Beam angle	36 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight
Overall length	44.00 mm
Diameter	50.00 mm
Maximum diameter	50 mm
Product weight	42.00 g

Temperatures & operating conditions
Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	99 °C

Lifespan
Lifespan L70/B50 at 25 °C	25000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data
Base (standard designation)	GU5.3
Mercury content	0.0 mg
Mercury-free	Yes
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities
Dimmable	Yes ¹⁾

Certificates & Standards
Energy efficiency class	G ¹⁾
Energy consumption	5.00 kWh/1000h
Type of protection	IP20
Standards	CE, EAC
Photobiological safety group acc. to EN62778	RG1

Country-specific categorizations
Order reference	LED MR163536 DI

LOGISTICAL DATA
Temperature range at storage	-20…+80 °C

Energy labelling regulation data acc EU 2019/2015
Lighting technology used	LED
Non-directional or directional	DLS
Mains or non-mains	NMLS
Light source cap-type (or other electric interface)	GU5.3
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Networked standby power for CLS	0 W
Claim of equivalent power	Yes
Length	44.00 mm
Height	50.00 mm
Width	50.00 mm
Chromaticity coordinate x	0.458
Chromaticity coordinate y	0.410
R9 Colour rendering index	0.00
Beam angle correspondence	NARROW_CONE_90
Survival factor	0.90
Displacement factor	>0.5
LED light source replaces a fluorescent light source	No
EPREL ID	1368276,1842008
Model number	AC45743,AC57996
