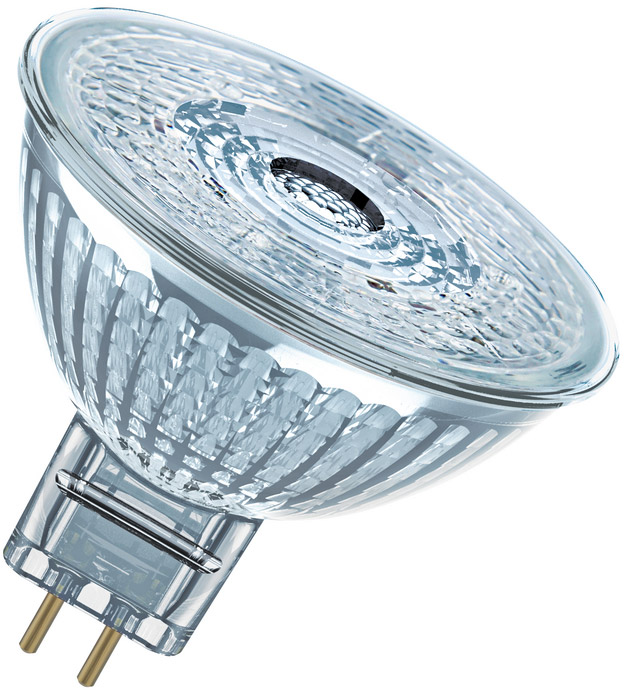

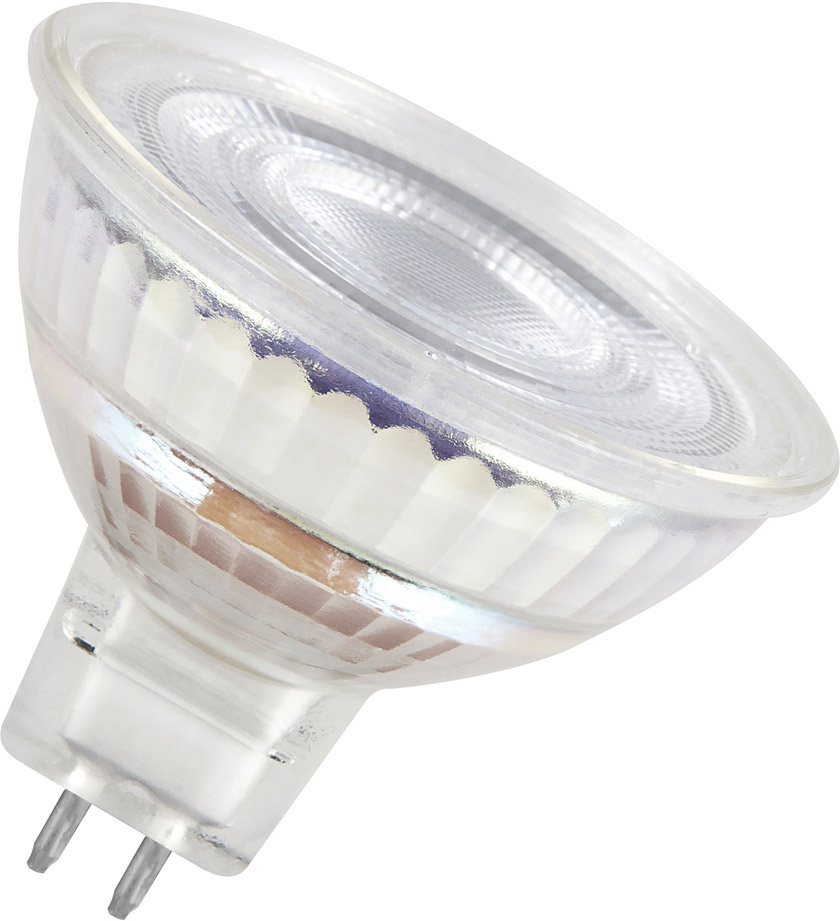

OSRAM LED BASE MR16 50 36 ° 8 W/2700 K GU5.3
LED reflector lamps MR16 with retrofit pin base. Product features: LED lamps for low voltage. Not dimmable. Base: GU10. Mercury-free lamps. Product benefits: Ideal for economical spotlighting. Alternative to line-voltage halogen lamps. Very low energy consumption. No UV and near-IR radiation in the light beam. Shockproof and vibration-proof thanks to LED technology. Professional thermal management. Areas of application: Spotlighting for accents. Domestic applications. Spotlighting heat-sensitive objects such as food, plants, etc.. Outdoor use in suitable outdoor luminaires only. As a downlight for marking walkways, doors, stairs, etc.. Atmospheric accent lighting throughout the home. All domestic rooms, especially where the lamps are visible.
Technical data:| Length: | 46 mm |
| Width: | 51 mm |
| Height: | 51 mm |
| Diameter: | 51 mm |
| Weight: | 46 g |
| Socket: | GU5.3 |
| Nominal voltage: | 12 V |
| Nominal power: | 8 W |
| Nominal current: | 720 mA |
| Energy consumption: | 9 kWh/1000 |
| Colour temperature: | 2700 K |
| Light colour: | Warm white |
| Beam angle: | 36° |
| Luminous flux: | 621 lm |
| Light intensity: | 1000 cd |
| Luminous efficacy: | 77 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 15000 h |
| Switching cycles: | 100000 |
| Protection class: | IP20 |
| Energy efficiency class: | G |
| Colour: | White |
| Power factor: | 0.90 |
| Voltage type: | AC/DC |
| Lamp shape: | Reflector |
| Filament lamp: | no |
| Type of glass/cover: | Clear |
| Colour consistency (McAdam ellipse): | SDCM6 |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Energy Efficiency Index (EEI): | 0.16 |
| Lamp designation: | MR16 |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| Photobiological safety according to EN 62471: | RG1 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
