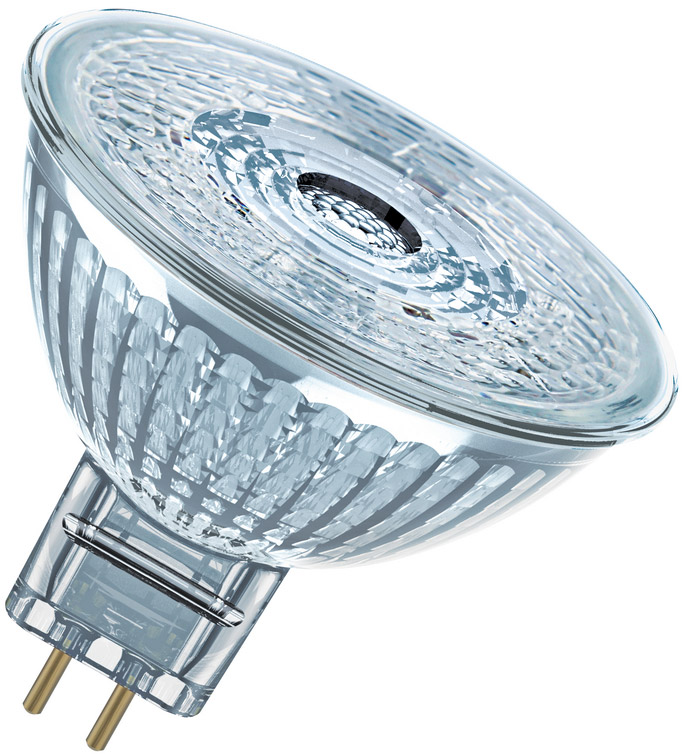

OSRAM PARATHOM® MR16 20 36 ° 2.6 W/4000 K GU5.3
Low-voltage LED reflector lamps MR16 with retrofit pin base. Product features: LED alternative to low voltage halogen lamps. High color consistency: = 6 SDCM. Not dimmable. Base: GU5.3. Lamp made of glass. Good quality of light; color rendering index Ra: = 80. Lifetime: up to 15,000 h. Product benefits: Quick, simple and safe replacement without rewiring. Design, dimensions, luminous flux comparable to an incandescent or halogen lamp. Low maintenance costs thanks to long lifetime. No UV and near-IR radiation in the light beam. Instant 100 % light, no warm-up time. Areas of application: Shops and exhibition rooms. Domestic applications. Commercial applications. Accent lighting. Outdoor use in suitable outdoor luminaires only. Equipment / Accessories: Equipped with high-power LEDs.
Technical data:| Length: | 46 mm |
| Width: | 51 mm |
| Height: | 51 mm |
| Diameter: | 51 mm |
| Weight: | 34 g |
| Socket: | GU5.3 |
| Nominal voltage: | 12 V |
| Nominal power: | 2,60 W |
| Nominal current: | 340 mA |
| Energy consumption: | 3 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Neutral white |
| Beam angle: | 36° |
| Luminous flux: | 230 lm |
| Light intensity: | 680 cd |
| Luminous efficacy: | 88 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 15000 h |
| Switching cycles: | 100000 |
| Protection class: | IP20 |
| Energy efficiency class: | F |
| Colour: | Other |
| Power factor: | 0.50 |
| Voltage type: | AC/DC |
| Lamp shape: | Reflector |
| Filament lamp: | no |
| Type of glass/cover: | Clear |
| Colour consistency (McAdam ellipse): | SDCM6 |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Energy Efficiency Index (EEI): | 0.12 |
| Lamp designation: | MR16 |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| Photobiological safety according to EN 62471: | RG1 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
