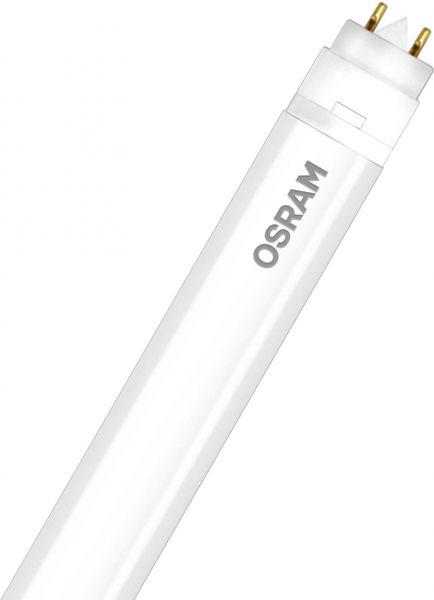

Osram ST8A-HF 8.9 W/840 600 mm

Osram ST8A-HF 8.9 W/840 600 mm
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 100217640
EAN: 4052899943018
Product benefits Quick, simple and safe replacement without rewiring Instant-on light,... more
All information about the product:
"Osram ST8A-HF 8.9 W/840 600 mm"
Product benefits
  • Quick, simple and safe replacement without rewiring
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Maximum resistance to switching loads
  • Correct operation even at low temperatures
  • Extremely break resistant thanks to aluminum heat sink and polycarbonate cover

Areas of application
  • General illumination within ambient temperatures from –20…+50 °C
  • Illumination of production areas
  • Traffic zones and corridors
  • Supermarkets and department stores
  • Industry

Product features
  • Bright, robust and durable
  • Uniform illumination
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
  • Integrated ECG with high power factor

Electrical data

Nominal wattage
8.90 W

Rated wattage
8.90 W

Nominal voltage
32.0 V

Nominal current
0.34 A

Type of current
AC

Power factor λ
> 0.80

Rated lamp efficacy (standard condition)
124 lm/W


Photometrical data

Light color (designation)
Cool White

Color temperature
4000 K

Nominal luminous flux
1100 lm

Rated luminous flux
1100 lm

Color rendering index Ra
>80

Standard deviation of color matching
≤4 sdcm


Light technical data

Starting time
< 0.5 s

Warm-up time (60 %)
< 2.00 s

Rated beam angle (half peak value)
160.00 °


Dimensions & weight

Overall length
590.0 mm

Length with base excl. base pins/connection
590.00 mm

Tube diameter
27.5 mm

Base diameter
25.7 mm

Product weight
94.00 g

Maximum diameter
28.0 mm


Temperatures & operating conditions


Ambient temperature range
-20…+50 °C

Temperature range in operation
-20…50 °C


Lifespan

Nominal lamp life time
50000 h

Rated lamp life time
50000 h

Lumen main.fact.at end of nom.life time
0.70

Number of switching cycles
200000


Additional product data

Base (standard designation)
G13

Mercury-free
Yes


Capabilities

Dimmable
No


Certificates & Standards

Type of protection
IP20

Standards
CE

Energy efficiency class
A+

Energy consumption
11 kWh/1000h
