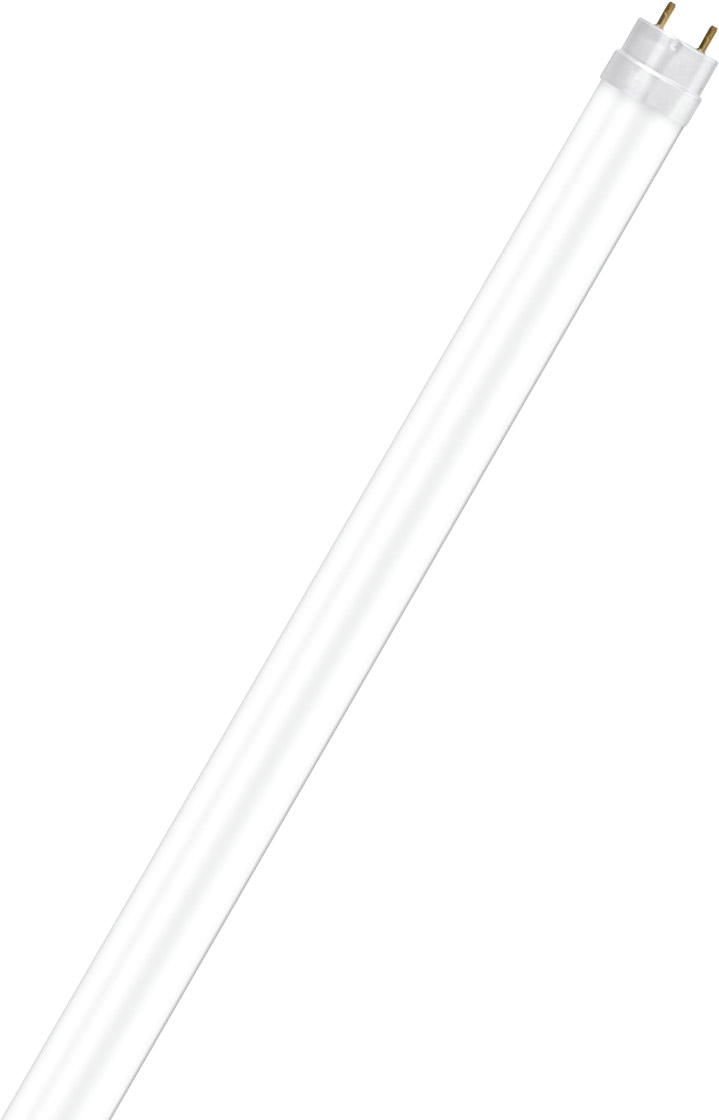

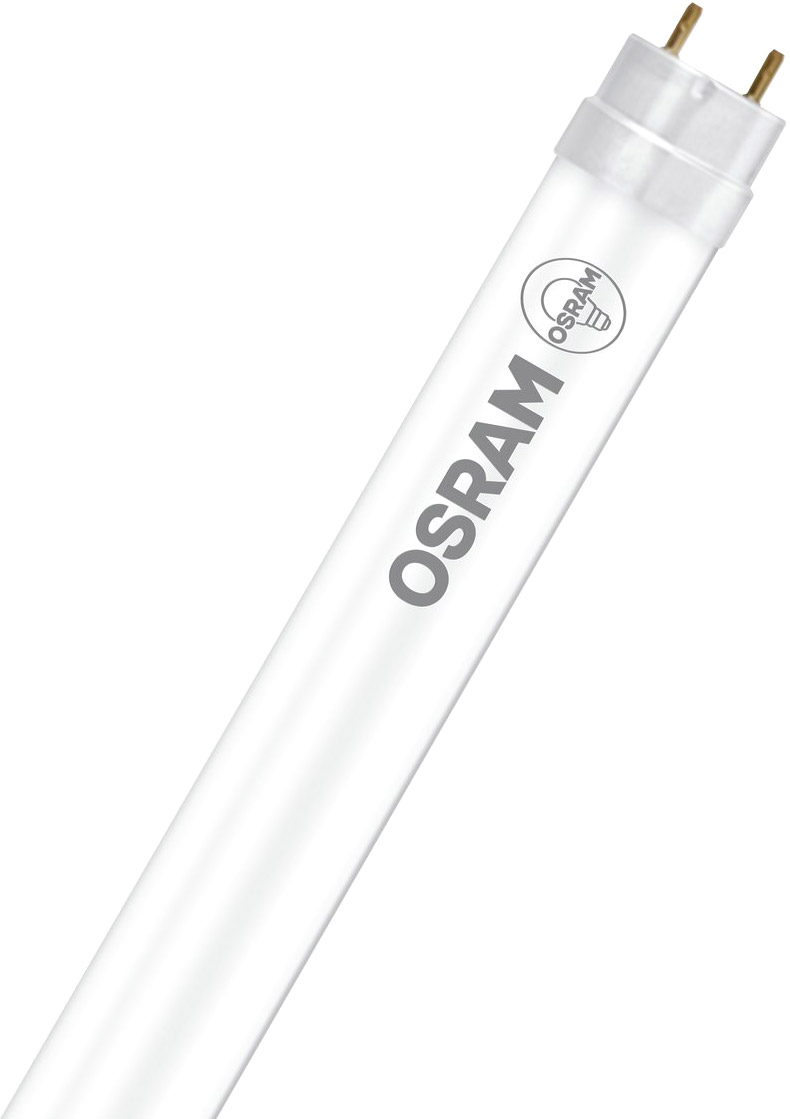

OSRAM SubstiTUBE® PRO Ultra Output EM 23.4 W/4000 K 1500 mm

This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 101003950
EAN: 4058075612112
High performance LED tubes for electromagnetic control gears (CCG), shatterproof. Product... more
All information about the product:
"OSRAM SubstiTUBE® PRO Ultra Output EM 23.4 W/4000 K 1500 mm"
High performance LED tubes for electromagnetic control gears (CCG), shatterproof. Product features:
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
  • Low flicker according to EU 2019-2020 (SVM =0,4 / PstLM = 1)
  • Lamp tube made of glass with splinter protection e.g
  • for food industry applications
  • VDE certified according to IEC62776
  • For especially uniform illumination
  • Lifetime: up to 75,000 h
  • Type of protection: IP20
  • Mercury-free and RoHS compliant
Product benefits:
  • No bending thanks to glass tube
  • Shatter protection thanks to special PET coating
  • Support the implementation of the HACCP concepts from production through to presentation
  • Very high resistance to switching loads
  • High luminous flux for sophisticated lighting tasks
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 60 % (compared to T8 fluorescent lamp on CCG)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
Areas of application:
  • General illumination within ambient temperatures from -20…+50 °C
  • Illumination of production areas
  • Traffic zones and corridors
  • Supermarkets and department stores
  • Industry
  • Equipment / Accessories: Suitable for operation with low-loss and conventional control gears
Technical data:
Length:1513 mm
Width:26,70 mm
Diameter:26,70 mm
Net weight:267 g
Socket:G13
Nominal voltage:240 V
Nominal current:110 mA
Rated power:23,40 W
Energy consumption:24 kWh/1000
Colour temperature:4000 K
Light colour:Cool white
Beam angle:190 °
Luminous flux:4100 lm
Colour rendering:83 CRI
Lifetime:75000 h
Switching cycles:200000
Energy efficiency class:C
Dimmable:No
Material:Glass with shatter protection
Colour:White
EAN:4058075612112
