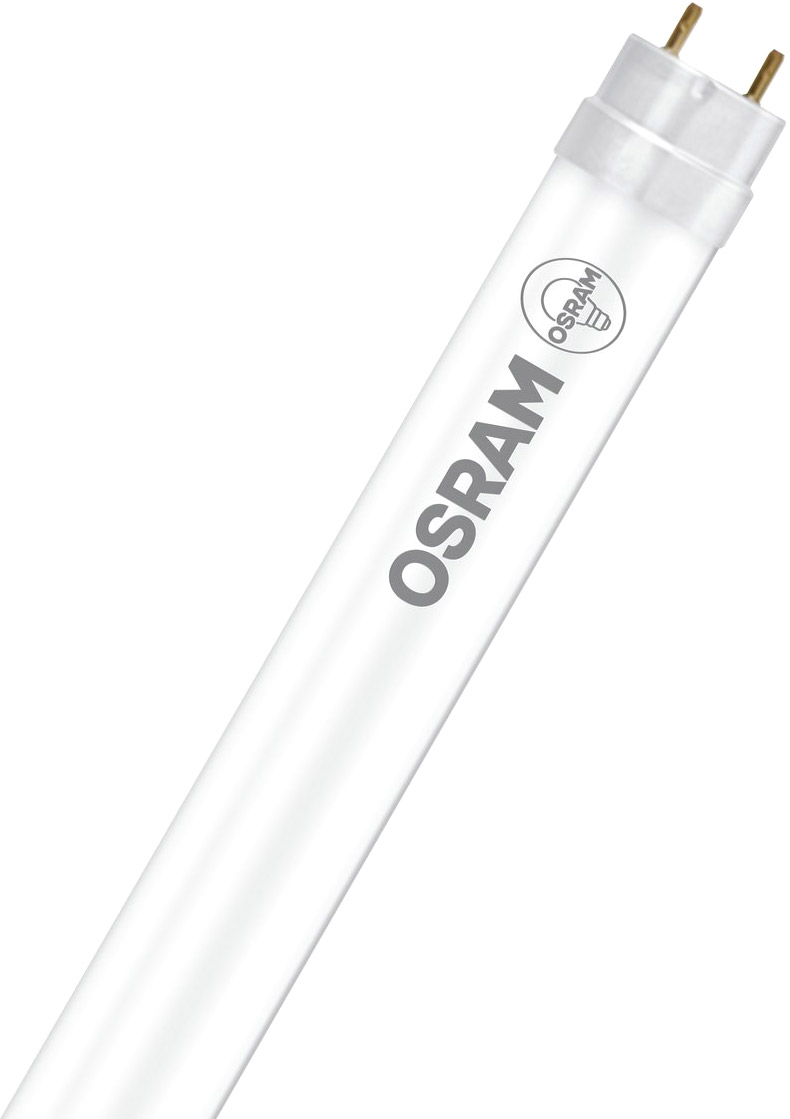

OSRAM SubstiTUBE® PRO EM 5.4 W/4000K 438 mm
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 101004080
EAN: 4058075614499
High performance LED tubes for electromagnetic control gears (CCG), shatterproof. Product... more
All information about the product:
"OSRAM SubstiTUBE® PRO EM 5.4 W/4000K 438 mm"
High performance LED tubes for electromagnetic control gears (CCG), shatterproof. Product features:
- LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
- Low flicker according to EU 2019-2020 (SVM =0,4 / PstLM = 1)
- Lamp tube made of glass with splinter protection e.g
- for food industry applications
- VDE certified according to IEC62776
- Single and tandem operation on conventional control gear (0.6 m version)
- Lifetime: up to 75,000 h
- Type of protection: IP20
- No bending thanks to glass tube
- Shatter protection thanks to special PET coating
- Support the implementation of the HACCP concepts from production through to presentation
- Very high resistance to switching loads
- High luminous flux for sophisticated lighting tasks
- Quick, simple and safe replacement without rewiring
- Energy savings of up to 68 % (compared to T8 fluorescent lamp on CCG)
- Instant-on light, therefore ideally suitable in combination with sensor technology
- Also suitable for operation at low temperatures
- General illumination within ambient temperatures from -20…+50 °C
- Illumination of production areas
- Traffic zones and corridors
- Supermarkets and department stores
- Industry
- Equipment / Accessories: Suitable for operation with low-loss and conventional control gears
| Length: | 450 mm |
| Width: | 26,70 mm |
| Diameter: | 26,70 mm |
| Net weight: | 78 g |
| Socket: | G13 |
| Nominal voltage: | 240 V |
| Nominal current: | 25 mA |
| Rated power: | 5,40 W |
| Energy consumption: | 6 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Cool White |
| Beam angle: | 190 ° |
| Luminous flux: | 900 lm |
| Colour rendering: | 83 CRI |
| Lifetime: | 75000 h |
| Switching cycles: | 200000 |
| Energy efficiency class: | C |
| Dimmable: | No |
| Material: | Glass with shatter protection |
| Colour: | White |
| EAN: | 4058075614499 |
