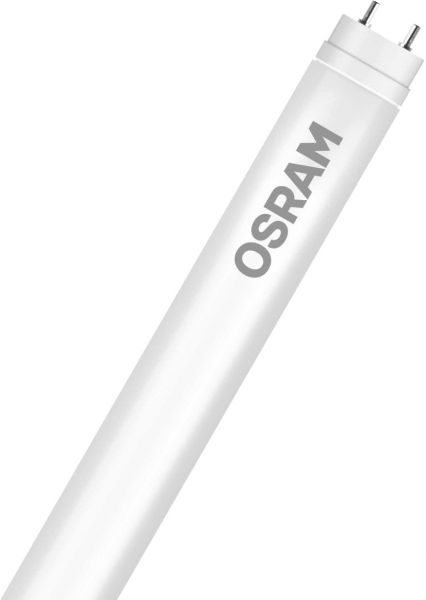

Osram ST8A-EM 18.4 W/840 1200 mm EM

Osram ST8A-EM 18.4 W/840 1200 mm EM
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 100217820
EAN: 4052899937574
Product benefits Quick, simple and safe replacement without rewiring Energy savings of up... more
All information about the product:
"Osram ST8A-EM 18.4 W/840 1200 mm EM"
Product benefits
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 60 % (compared to T8 fluorescent lamp on CCG)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Very high resistance to switching loads
  • Also suitable for operation at low temperatures
  • Extremely break resistant thanks to aluminum heat sink and polycarbonate cover

Areas of application
  • General illumination within ambient temperatures from –20…+50 °C
  • Illumination of production areas
  • Traffic zones and corridors
  • Supermarkets and department stores
  • Industry

Product features
  • LED alternative to classic T8 fluorescent lamps in CCG luminaires
  • Bright, robust and durable
  • Uniform illumination
  • Wide beam angle: 160° (0.6 m), 150° (1.2 m, 1.5 m)
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
  • Integrated ECG with high power factor
  • Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears

Safety advice
  • Not suitable for operation with electronic control gear.

Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Electrical data

Nominal wattage
18.40 W

Rated wattage
18.40 W

Nominal voltage
220…240 V

Operating frequency
50…60 Hz

Type of current
AC

Max. tube no. on circuit break. 10 A (B)
85 / 14 / 85

Max. tube no. on circuit break. 16 A (B)
125 / 23 / 125

Power factor λ
> 0.90


Photometrical data

Light color (designation)
Cool White

Color temperature
4000 K

Nominal luminous flux
2300 lm

Rated luminous flux
2300 lm

Color rendering index Ra
>80

Standard deviation of color matching
≤4 sdcm


Light technical data

Starting time
< 0.5 s

Warm-up time (60 %)
< 2.00 s

Rated beam angle (half peak value)
160.00 °


Dimensions & weight

Overall length
1213 mm

Tube diameter
27.5 mm

Base diameter
27.5 mm

Product weight
165.00 g


Temperatures & operating conditions

Ambient temperature range
-20…+50 °C

Temperature range in operation
-20…70 °C


Lifespan

Nominal lamp life time
50000 h

Rated lamp life time
50000 h

Lumen main.fact.at end of nom.life time
0.70

Number of switching cycles
200000


Additional product data

Base (standard designation)
G13

Mercury-free
Yes

Product remark
When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system/Not usable in luminaires with serial lamp connection, i.e. more than one tube at one magnetic ballast (tandem circuitry)


Capabilities

Dimmable
No


Certificates & Standards

Standards
CE; VDE

Energy efficiency class
A+

Energy consumption
22 kWh/1000h
