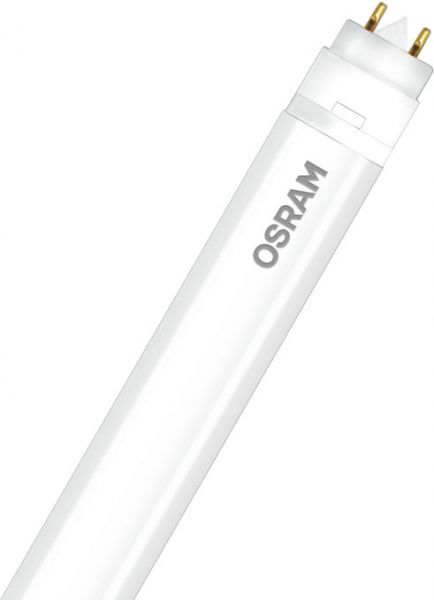

Osram SubstiTUBE Advanced HF 21 W/865 1500 mm
Product benefits
- Quick, simple and safe replacement without rewiring
- Instant-on light, therefore ideally suitable in combination with sensor technology
- Maximum resistance to switching loads
- Correct operation even at low temperatures
- Extremely break resistant thanks to aluminum heat sink and polycarbonate Cover
Areas of application
- General illumination within ambient temperatures from –20…+50 °C
- Illumination of production areas
- Traffic zones and corridors
- Supermarkets and department stores
- Industry
Product features
- Bright, robust and durable
- Uniform illumination
- Mercury-free and RoHS compliant
- Type of protection: IP20
- Integrated ECG with high power factor
Technical Data | |
| Electrical data | |
Nominal wattage: | 21.00 W |
Rated wattage: | 21.00 W |
Rated lamp efficacy (standard condition): | 150 lm/W |
Nominal voltage: | 220…240 V |
Nominal current: | 0.125 A |
Type of current: | AC |
Power factor λ: | > 0.90 |
| Photometrical data | |
Light color (designation): | Cool Daylight |
Color temperature: | 6500 K |
Nominal luminous flux: | 3150 lm |
Rated luminous flux: | 3150 lm |
Color rendering index Ra: | >80 |
| Light technical data | |
Starting time: | < 0.5 s |
Rated beam angle (half peak value): | 180.00 ° |
| Dimensions & weight | |
Overall length: | 1513 mm |
Tube diameter: | 27.5 mm |
Base diameter: | 25.7 mm |
Product weight: | 335.00 g |
| Temperatures & operating conditions | |
Ambient temperature range: | -20…+50 °C |
| Lifespan | |
Nominal lamp life time: | 50000 h |
Rated lamp life time: | 50000 h |
Lifespan: | 50000 h |
Lumen main.fact.at end of nom.life time: | 0.70 |
Number of switching cycles: | 200000 |
| Additional product data | |
Base (standard designation): | G13 |
Mercury-free: | Yes |
| Capabilities | |
Dimmable: | No |
| Certificates & standards | |
Type of protection: | IP20 |
Standards: | CE |
Energy efficiency class: | A++ |
Energy consumption: | 23 kWh/1000h |
| Logistical data | |
Temperature range at storage: | -20…80 °C |
