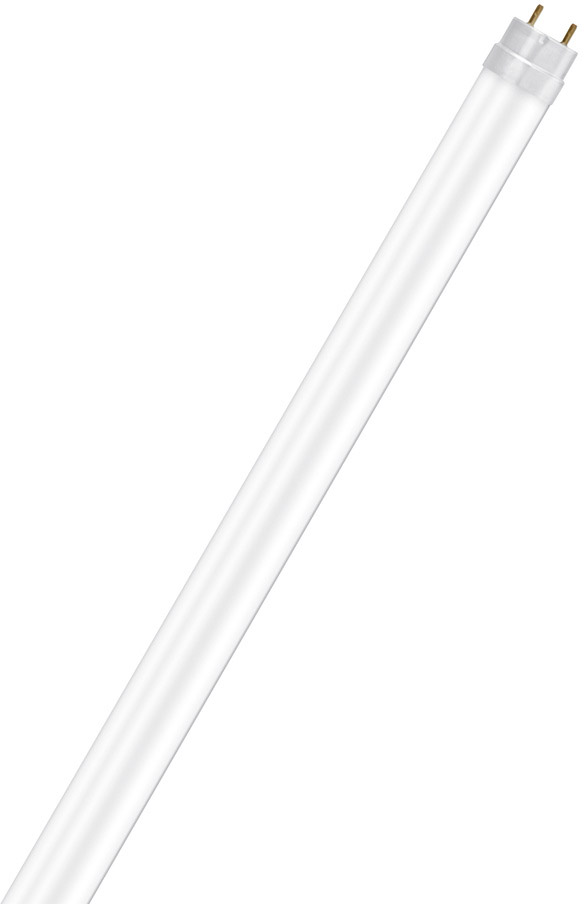

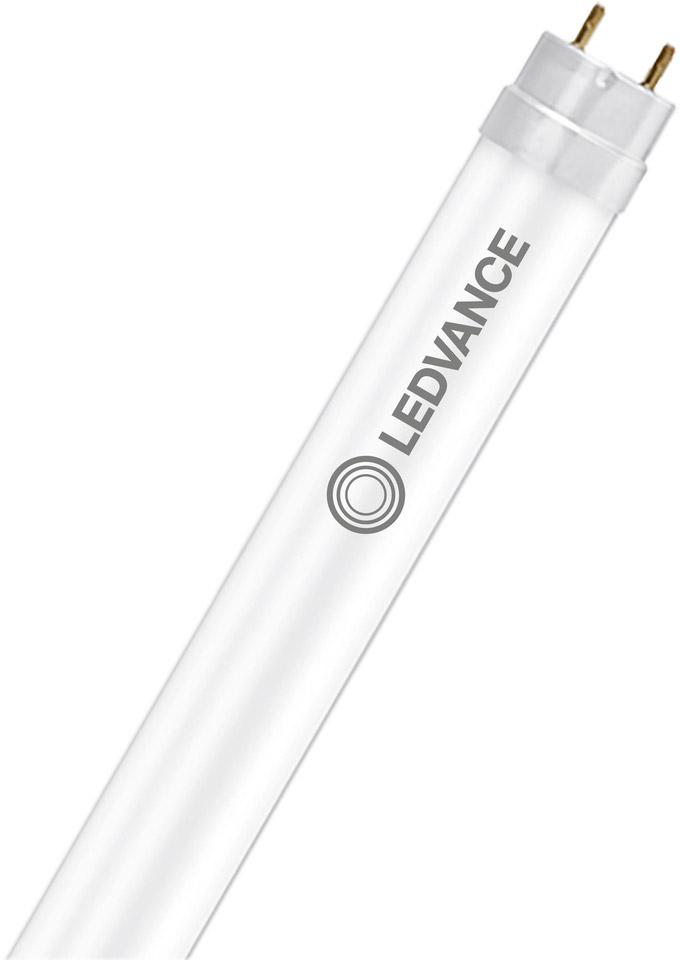

LEDVANCE LED TUBE T8 EM S 1200 mm 12W 865
€8.93 *
incl. tax,
plus shipping costs
Availability:
Delivery time: 5-7 days
Delivery time: approx. 5-7 days
Item number: 101410885
EAN: 4099854037610
High performance LED tubes for electromagnetic control gear (CCG) and AC mains, shatterproof.... more
All information about the product:
"LEDVANCE LED TUBE T8 EM S 1200 mm 12W 865"
High performance LED tubes for electromagnetic control gear (CCG) and AC mains, shatterproof. Product features:
- LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
- Low flicker according to EU 2019-2020 (SVM =0,4 / PstLM = 1)
- Lamp tube made of glass with splinter protection e.g
- for food industry applications
- ENEC 10 VDE mark
- Single and tandem operation on conventional control gear (=0.9 m versions)
- Lifetime: up to 75,000 h
- Type of protection: IP20
- Mercury-free and RoHS compliant
- No bending thanks to glass technology
- Shatter protection thanks to special PET coating
- Support the implementation of the HACCP concepts from production through to presentation
- Very high resistance to switching loads
- Quick, simple and safe replacement without rewiring
- Energy savings of up to 70 % (compared to T8 fluorescent lamp)
- Instant-on light, therefore ideally suitable in combination with sensor technology
- Also suitable for operation at low temperatures
- General illumination within ambient temperatures from -20…+50 °C
- Illumination of production areas
- Traffic zones and corridors
- Supermarkets and department stores
- Industry
- Equipment / Accessories: Suitable for operation with low-loss and conventional control gears
| Length: | 1212 mm |
| Width: | 26,70 mm |
| Height: | 26,70 mm |
| Diameter: | 26,70 mm |
| Net weight: | 183 g |
| Socket: | G13 |
| Nominal voltage: | 240 V |
| Nominal current: | 54 mA |
| Rated power: | 12 W |
| Energy consumption: | 12 kWh/1000 |
| Colour temperature: | 6500 K |
| Light colour: | Cool Daylight |
| Beam angle: | 190° |
| Luminous flux: | 2100 lm |
| Luminous efficacy: | 175 lm/W |
| Colour rendering: | 80 CRI |
| Lifetime: | 75000 h |
| Switching cycles: | 200000 |
| Energy efficiency class: | C |
| Material: | Glass with shatter protection |
| EAN: | 4099854037610 |
