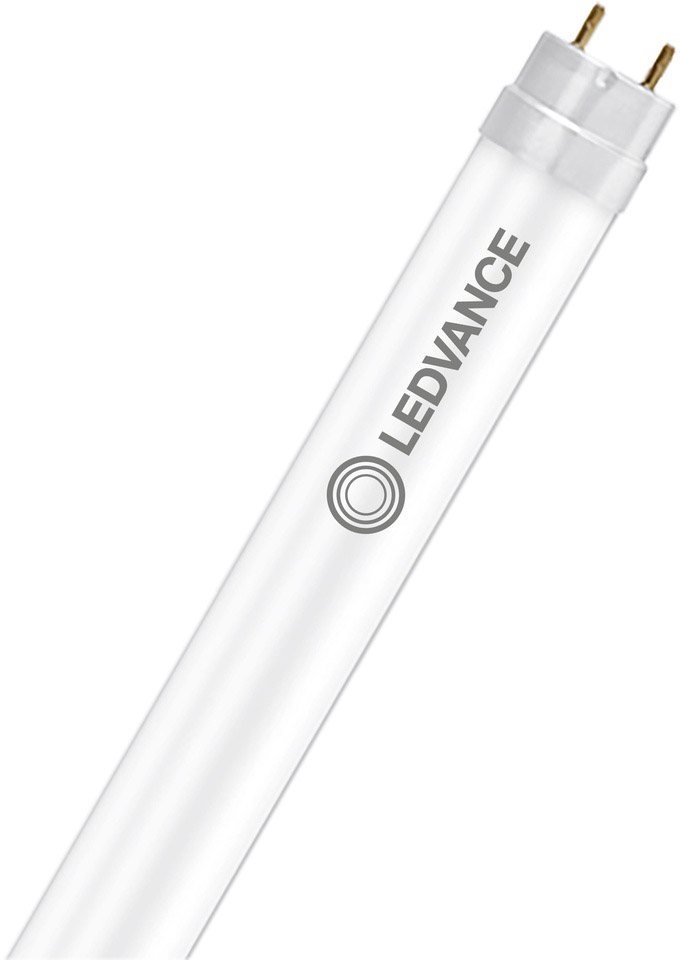

LEDVANCE LED TUBE T8 EM PLASTIC V 1800 mm 23W 865
Article is coming soon
Economic LED tubes for electromagnetic control gears (CCG). Product features: LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains. T8 LED tube made of plastic with G13 base. Low flicker according to EU 2019-2020 (SVM =0,4 / PstLM = 1). Mercury-free and RoHS compliant. Single and tandem operation on conventional control gear (0.6 m version). Type of protection: IP20. Product benefits: Extremely break resistant thanks to cover made of polycarbonate. High color homogeneity. Energy savings of up to 68 % compared to conventional T8 fluorescent lamps. Instant flickerfree starting. Areas of application: General illumination within ambient temperatures from -20…+45 °C. Corridors, stairways, parking garages. Domestic applications. Equipment / Accessories: Suitable for operation on magnetic control gear.
Technical data:| Length: | 1777 mm |
| Width: | 26,80 mm |
| Height: | 26,80 mm |
| Diameter: | 26,80 mm |
| Weight: | 165 g |
| Socket: | G13 |
| Nominal voltage: | 220 V |
| Nominal power: | 23 W |
| Nominal current: | 120 mA |
| Energy consumption: | 23 kWh/1000 |
| Colour temperature: | 6500 K |
| Light colour: | Daylight white |
| Luminous flux: | 2600 lm |
| Luminous efficacy: | 113 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 30000 h |
| Switching cycles: | 200000 |
| Protection class: | IP20 |
| Energy efficiency class: | E |
| Colour: | White |
| Power factor: | 0.90 |
| Voltage type: | AC |
| Lamp shape: | Tube, double-ended |
| Filament lamp: | no |
| Type of glass/cover: | Frosted |
| Colour consistency (McAdam ellipse): | SDCM6 |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Lamp designation: | T8 |
| Total harmonic distortion: | 55 |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| Photobiological safety according to EN 62471: | RG0 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
