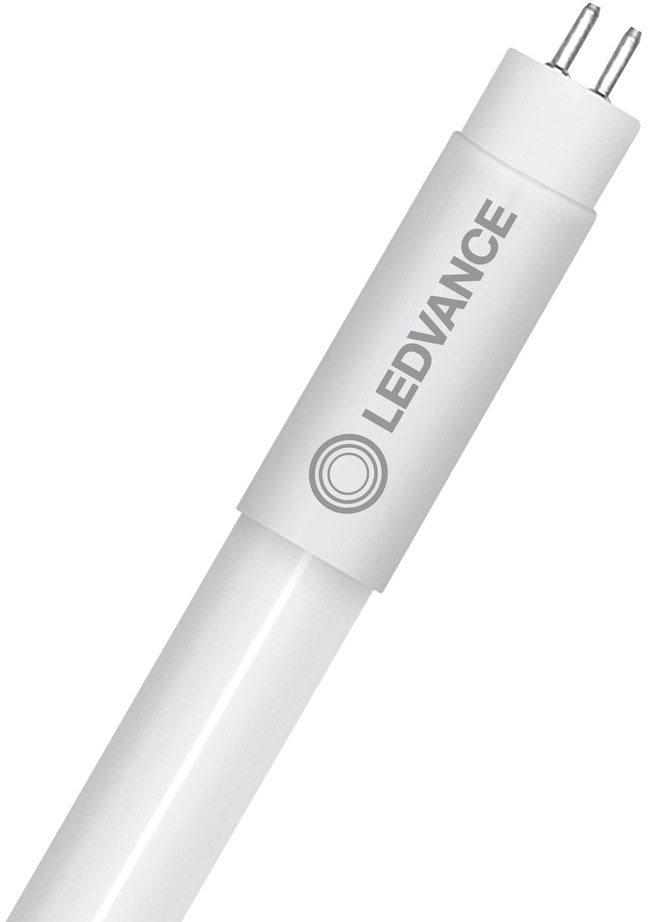

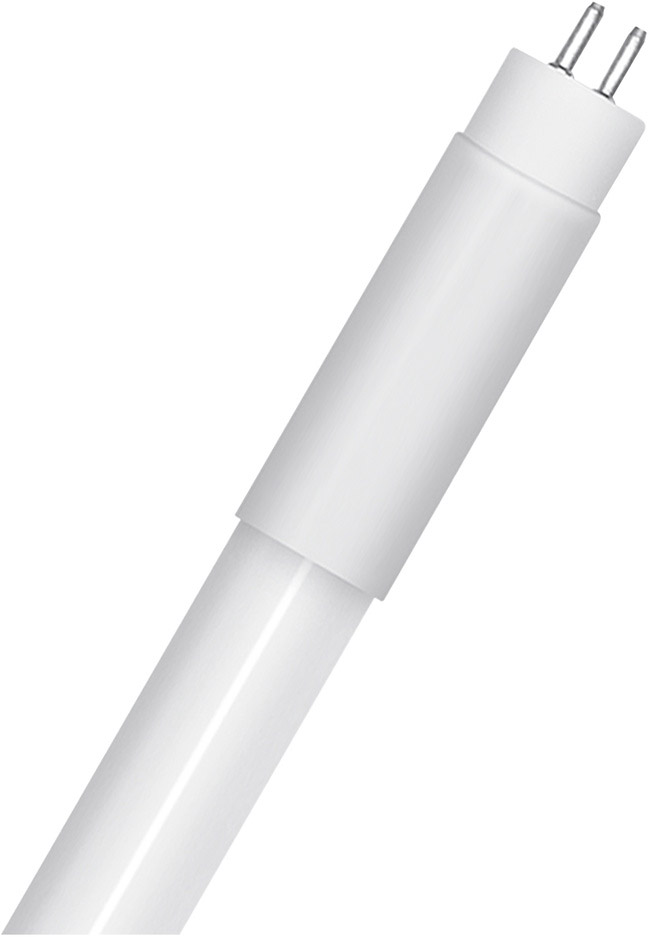

LEDVANCE LED TUBE T5 HF P 1149 mm 16W 830
€19.53 *
incl. tax,
plus shipping costs
Express delivery possible
Availability:
Low stock; Delivery time: 1-3 days
Delivery time: approx. 1-3 days
Item number: 101411450
EAN: 4099854029325
LED tubes for electronic high frequency control gear (ECG), shatterproof. Product features:... more
All information about the product:
"LEDVANCE LED TUBE T5 HF P 1149 mm 16W 830"
LED tubes for electronic high frequency control gear (ECG), shatterproof. Product features:
- Retrofit replacement of existing T5 lamps on HF ballast installations
- Lamp tube made of glass with splinter protection e.g
- for food industry applications
- High color consistency: = 5 SDCM
- Lifetime: up to 50,000 h
- Low flicker according to EU 2019-2020 (SVM =0,4 / PstLM = 1)
- Type of protection: IP20
- Compatible with many common electronic control gears (see also compatibility list)
- No bending thanks to glass technology
- Quick, simple and safe replacement without rewiring
- High luminous flux for sophisticated lighting tasks
- Also suitable for operation at low temperatures
- General illumination within ambient temperatures from -20…+45 °C
- Offices, public buildings
- Supermarkets and department stores
- Industry
| Length: | 1163 mm |
| Width: | 18,50 mm |
| Height: | 18,50 mm |
| Diameter: | 18,50 mm |
| Net weight: | 147 g |
| Socket: | G5 |
| Nominal voltage: | 160 V |
| Nominal current: | 210 mA |
| Rated power: | 16 W |
| Energy consumption: | 16 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | Warm White |
| Beam angle: | 190° |
| Luminous flux: | 2160 lm |
| Luminous efficacy: | 135 lm/W |
| Colour rendering: | 80 CRI |
| Lifetime: | 50000 h |
| Switching cycles: | 200000 |
| Energy efficiency class: | E |
| Material: | Glass with shatter protection |
| Colour: | White |
| EAN: | 4099854029325 |
