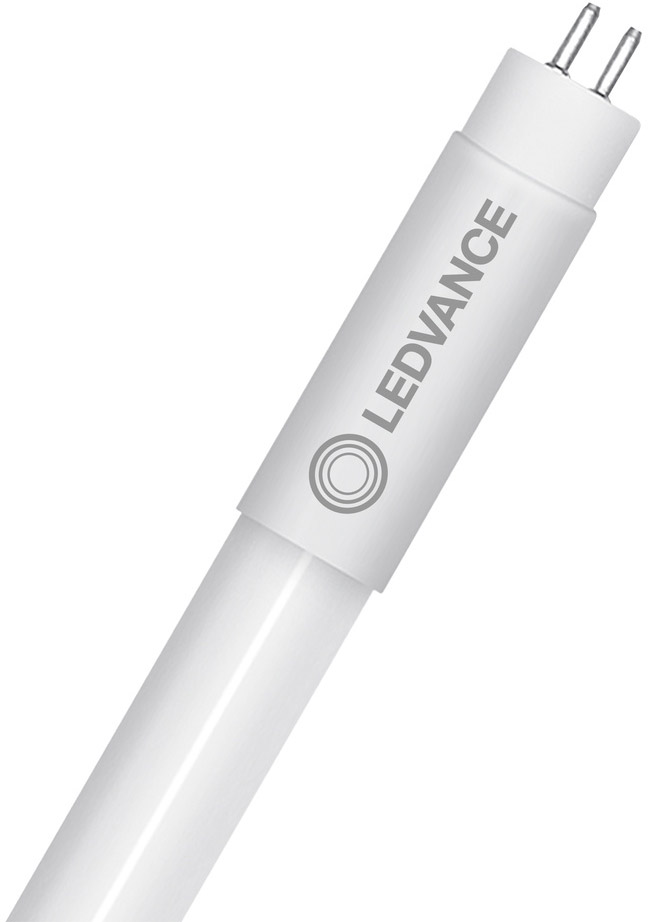

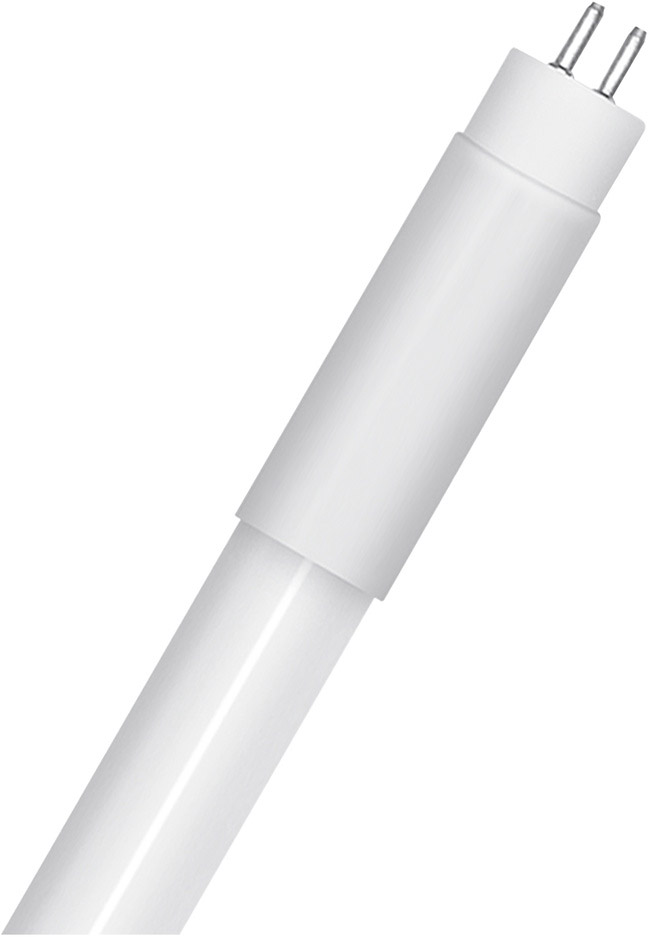

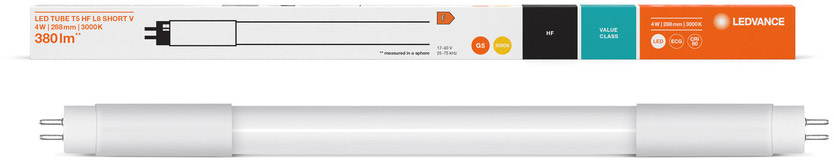

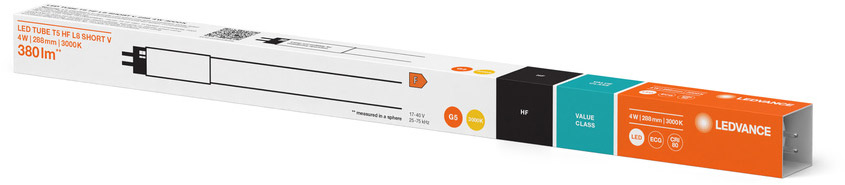

LEDVANCE LED TUBE T5 HF SHORT V 288 mm 4W 830
€14.77 *
incl. tax,
plus shipping costs
Availability:
Currently not available.
Expected to be available again in 2 weeks.
Expected to be available again in 2 weeks.
Currently not available
Item number: 101411555
EAN: 4058075823617
LED tubes for electronic high frequency control gear (ECG), shatterproof. Product features:... more
All information about the product:
"LEDVANCE LED TUBE T5 HF SHORT V 288 mm 4W 830"
LED tubes for electronic high frequency control gear (ECG), shatterproof. Product features:
- Retrofit replacement of existing T5 lamps on HF ballast installations
- Lamp tube made of glass with splinter protection
- High color consistency: = 5 SDCM
- Lifetime: up to 30,000 h
- Low flicker according to EU 2019-2020 (SVM =0,4 / PstLM = 1)
- Type of protection: IP20
- Compatible with many common electronic control gears (see also compatibility list)
- No bending thanks to glass technology
- Quick, simple and safe replacement without rewiring
- Also suitable for operation at low temperatures
- Please follow all safety advices
- General illumination within ambient temperatures from -20…+45 °C
- Public buildings
- Kitchens
- Under-cabinet lighting
| Length: | 302 mm |
| Width: | 18,50 mm |
| Height: | 18,50 mm |
| Diameter: | 18,50 mm |
| Net weight: | 42 g |
| Socket: | G5 |
| Nominal voltage: | 40 V |
| Nominal current: | 223 mA |
| Rated power: | 4 W |
| Energy consumption: | 4 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | Warm White |
| Beam angle: | 190° |
| Luminous flux: | 380 lm |
| Luminous efficacy: | 95 lm/W |
| Colour rendering: | 80 CRI |
| Lifetime: | 30000 h |
| Switching cycles: | 200000 |
| Energy efficiency class: | F |
| Material: | Glass with shatter protection |
| Colour: | White |
| EAN: | 4058075823617 |
