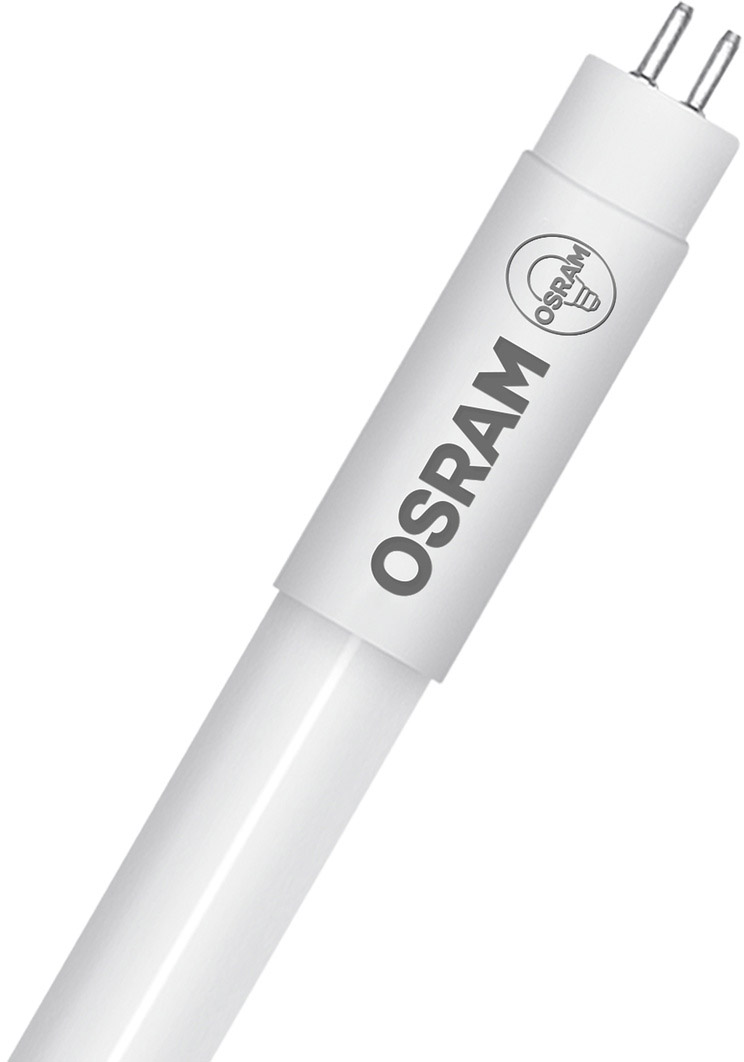

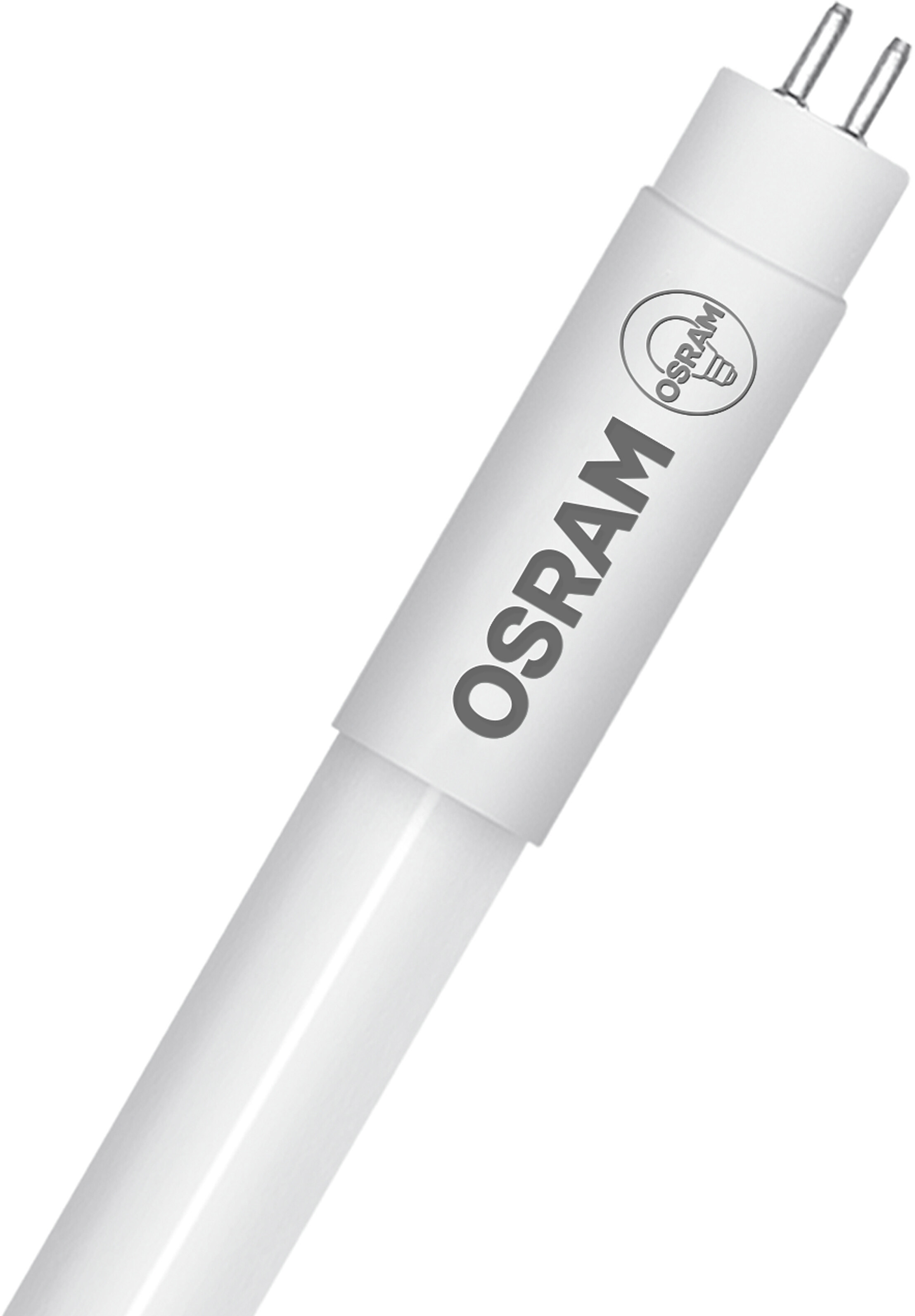

LEDVANCE SubstiTUBE T5 HF 1149 mm 16W 830
Delivery time: approx. 2 weeks
LED tubes for electronic high frequency control gears. Product features: Retrofit replacement of existing T5 lamps on HF ballast installations. Lamp tube made of glass with splinter protection e.g. for food industry applications. High color consistency: = 5 SDCM. Lifetime: up to 50,000 h. Low flicker according to EU 2019-2020 (SVM =0,4 / PstLM = 1). Type of protection: IP20. Compatible with many common electronic control gears (see also compatibility list). Product benefits: No bending thanks to glass technology. Quick, simple and safe replacement without rewiring. High luminous flux for sophisticated lighting tasks. Also suitable for operation at low temperatures. Areas of application: General illumination within ambient temperatures from -20…+45 °C. Offices, public buildings. Supermarkets and department stores. Industry.

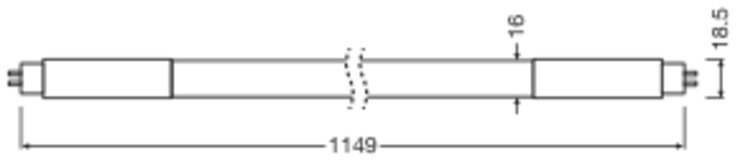

Technical data:| Length: | 1163 mm |
| Width: | 16 mm |
| Height: | 16 mm |
| Diameter: | 16 mm |
| Weight: | 147 g |
| Socket: | G5 |
| Nominal voltage: | 110 V |
| Nominal power: | 16 W |
| Nominal current: | 210 mA |
| Energy consumption: | 16 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | Warm white |

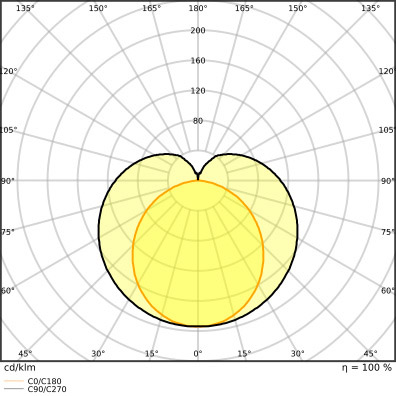

| Beam angle: | 190° |
| Luminous flux: | 2160 lm |
| Luminous efficacy: | 135 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 30000 h |
| Switching cycles: | 200000 |
| Protection class: | IP20 |
| Energy efficiency class: | E |
| Colour: | White |
| Power factor: | 0.90 |
| Voltage type: | AC |
| Lamp shape: | Tube, double-ended |
| Filament lamp: | no |
| Type of glass/cover: | Frosted |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Total harmonic distortion: | 15 |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| Photobiological safety according to EN 62471: | RG0 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
