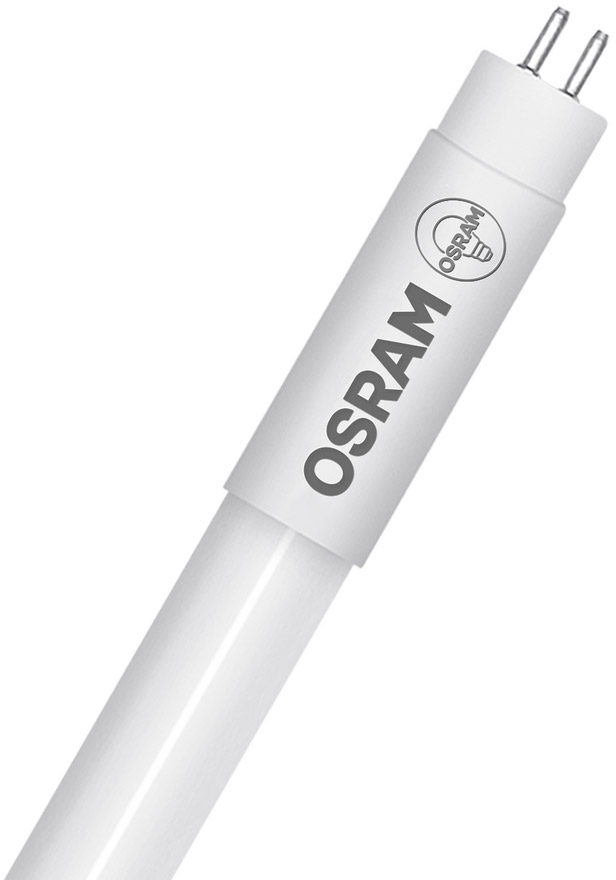

OSRAM SubstiTUBE T5 220-240V AC 10 W/4000 K 549 mm
NEW
€36.07 *
incl. tax,
plus shipping costs
Availability:
Currently not available
Currently not available
Item number: 100233630
EAN: 4058075771703
NEW
OSRAM SubstiTUBE T5 220-240V AC 10 W/4000 K 549 mm LED tubes for operation on AC mains... more
All information about the product:
"OSRAM SubstiTUBE T5 220-240V AC 10 W/4000 K 549 mm"
OSRAM SubstiTUBE T5 220-240V AC 10 W/4000 K 549 mm
LED tubes for operation on AC mains connection. Product features: LED replacement for T5 fluorescent lamps with G5 base on AC mains. Lamp tube made of glass with splinter protection e.g. for food industry applications. High color consistency: = 5 SDCM. Lifetime: up to 50,000 h. Low flicker according to EU 2019/2020. Type of protection: IP20. Product benefits: No bending thanks to glass technology. Shatter protection thanks to special PET coating. High luminous flux for sophisticated lighting tasks. Areas of application: Offices, public buildings. Supermarkets and department stores. Industry. General illumination within ambient temperatures from -20…+45 °C.
Technical data:| Length: | 549 mm |
| Width: | 19 mm |
| Height: | 19 mm |
| Diameter: | 19 mm |
| Weight: | 78 g |
| Socket: | G5 |
| Nominal voltage: | 220 V |
| Nominal power: | 10 W |
| Nominal current: | 47 mA |
| Energy consumption: | 10 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Neutral white |

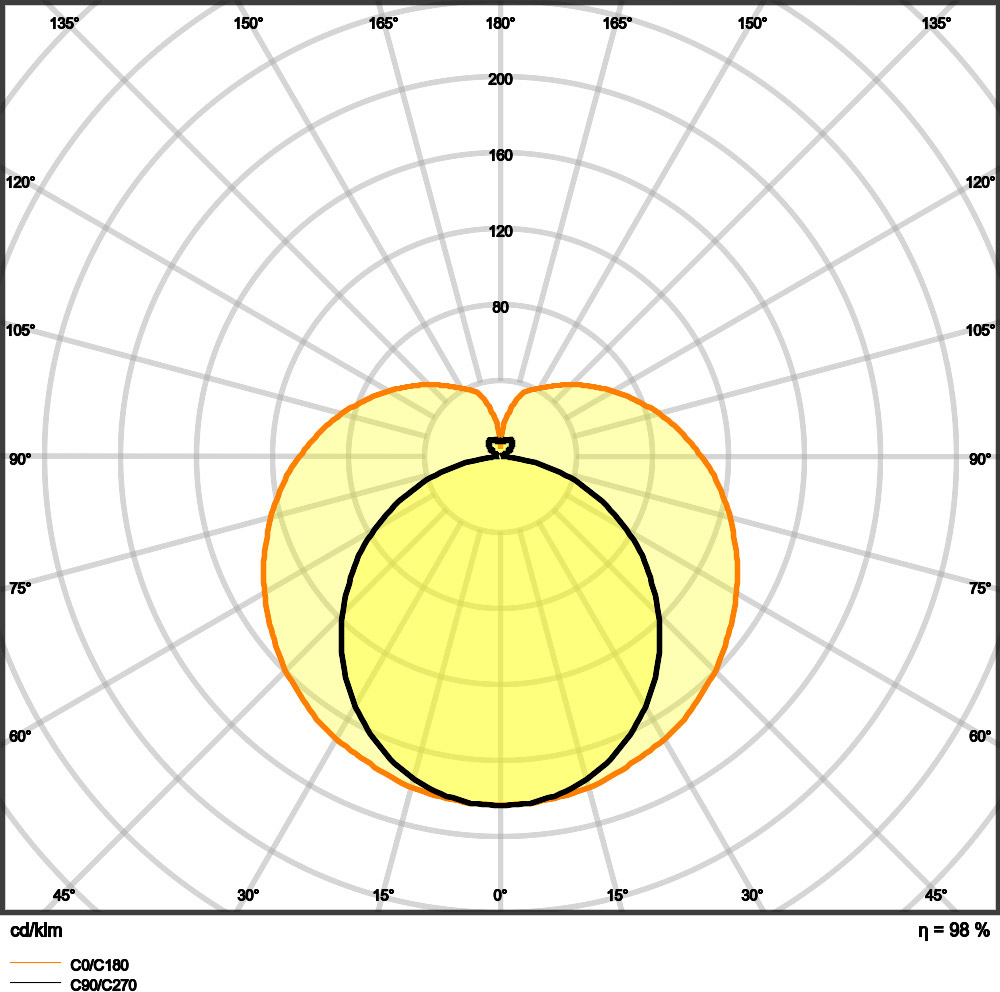

| Beam angle: | 160° |
| Luminous flux: | 1500 lm |
| Luminous efficacy: | 150 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 50000 h |
| Switching cycles: | 50000 |
| Protection class: | IP20 |
| Energy efficiency class: | D |
| Colour: | White |
| Power factor: | 0.90 |
| Voltage type: | AC |
| Lamp shape: | Tube, double-ended |
| Filament lamp: | no |
| Type of glass/cover: | Frosted |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| Photobiological safety according to EN 62471: | RG0 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
