OSRAM DRAGONeye® -W4F-830-G3

OSRAM DRAGONeye® -W4F-830-G3
This article is currently not available.
€22.70 *
incl. tax, plus shipping costs
Availability:
Currently not available
Currently not available
Item number: 101001650
EAN: 4052899474741
LED Spot-Modules with integrated optics. Product features: Type of protection IP65 according... more
All information about the product:
"OSRAM DRAGONeye® -W4F-830-G3"

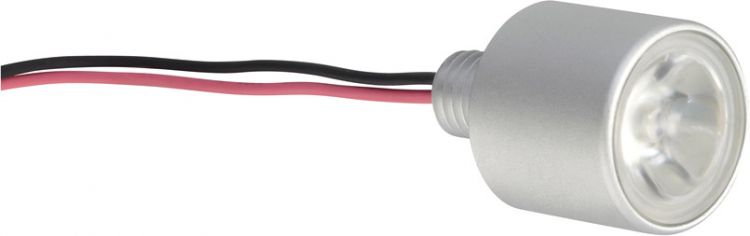

LED Spot-Modules with integrated optics. Product features:
  • Type of protection IP65 according to DIN EN 60529
  • The modules can only be connected in series
  • Two-core connecting cable (500 mm)
  • Dimmable by pulse width modulation (PWM)
Product benefits:
  • Metal package for optimum heat removal
  • Integrated M10x1.5 thread for simple installation
  • No additional heat sink required
  • Narrow beam angle for use as a spot source
  • Perfect centering thanks to flange on the floor of the casing (diameter 12 mm)
  • Low maintenance costs thanks to a lifetime of up to 70,000 h
  • 5 year guarantee
Areas of application:
  • For accent, orientation or route lighting
  • Shelf and furniture lighting
  • Suitable for outdoor use
Technical data:
Length:20 mm
Width:23 mm
Height:23 mm
Diameter:23 mm
Net weight:24 g
Nominal voltage:2 V
Nominal current:350 mA
Rated power:1 W
Energy consumption:2 kWh/1000
Colour temperature:3000 K
Light colour:Warm White
Beam angle:15 °
Luminous flux:95 lm
Light intensity:800 cd
Colour rendering:80 CRI
Lifetime:70000 h
Switching cycles:35000
Energy efficiency class:F
Dimmable:Yes
EAN:4052899474741
