Overview

ISOLED LED T5/T8 retrofit circuit board 830, 115cm MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K

ISOLED
Preview: ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K Preview: ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K Preview: ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K Preview: ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K Preview: ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K Preview: ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K
ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K
ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K
ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K
ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K
ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K
ISOLED LED T5/T8 Umrüstplatine 830, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K

€17.98 *
incl. tax, plus shipping costs
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111016135
EAN: 9009377153990
Product data sheet (PDF)
Description Videos 0 Downloads 1 Accessories 6
Description

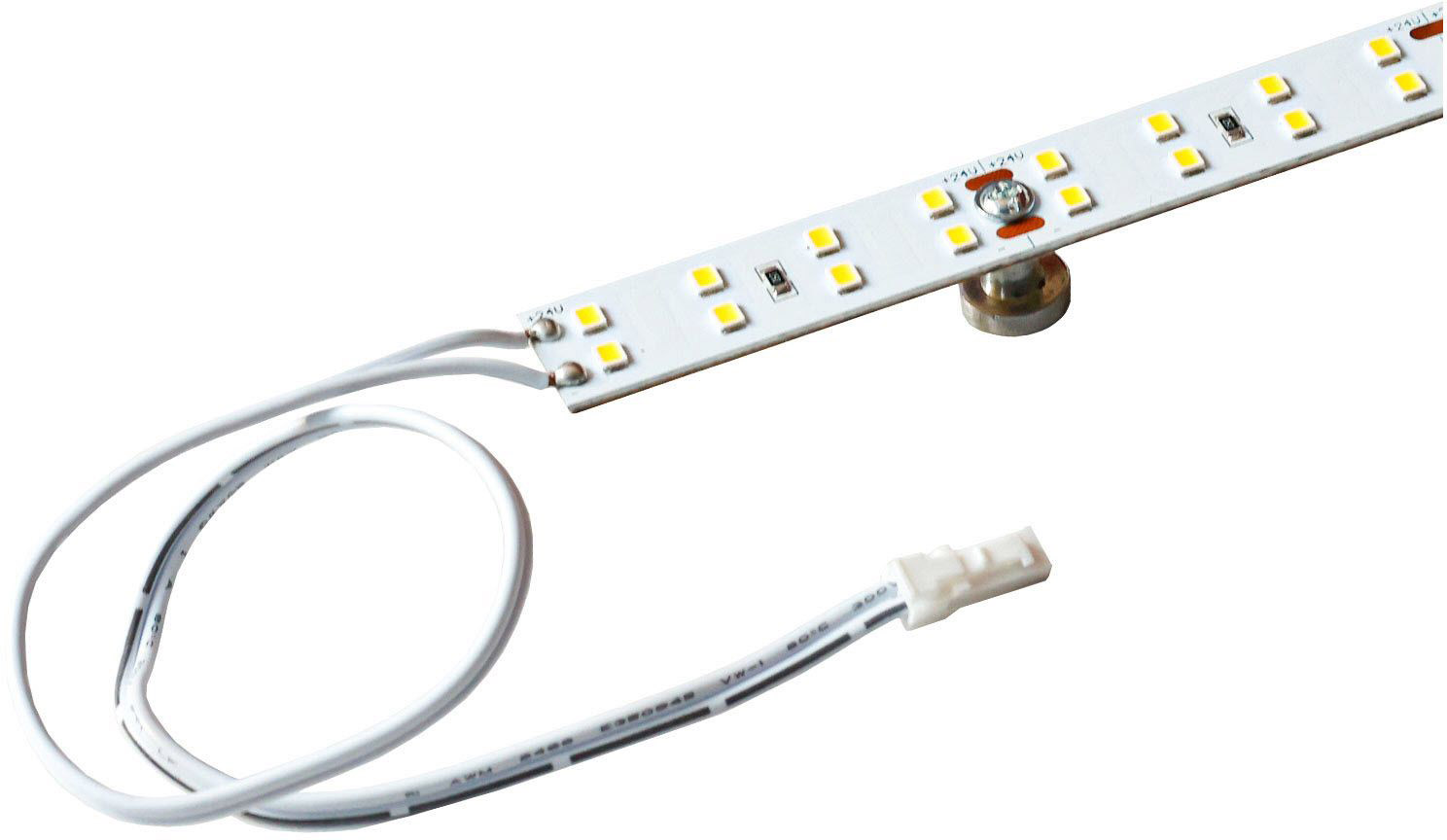

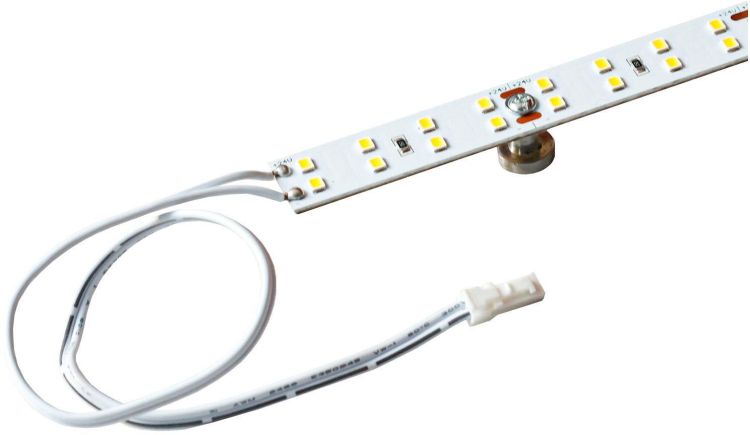

ISOLED LED T5/T8 retrofit circuit board 830, 115cm MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K... more
Back to the overview
All information about the product:
"ISOLED LED T5/T8 retrofit circuit board 830, 115cm MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000K"
ISOLED LED T5/T8 retrofit circuit board 830, 115cm MiniAMP, 184 LED, 24V, 19W, 170 lm/W, 3000KTechnical data:
Length:1450 mm
Width:15 mm
Height:1 mm
Net weight:102 g
LED type:SMD2835
Nominal voltage:24 V
Nominal power:18,80 W
Rated power:19 W
Colour temperature:3000K

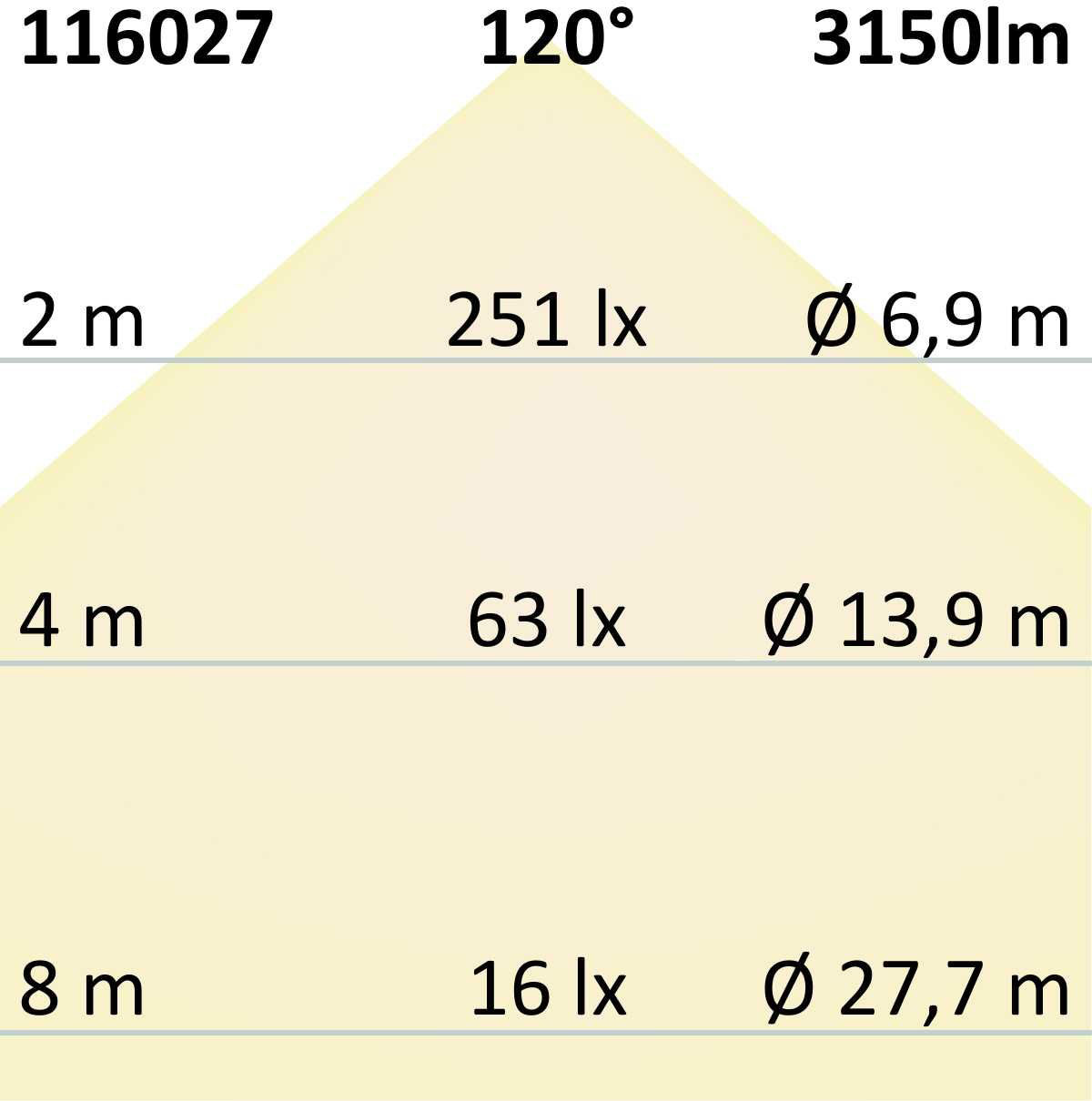

Beam angle:120°
Luminous flux:3150 lm
Light intensity:1003 cd
Colour rendering:80 CRI
Lifetime:50000 h
Protection class:IP20
Energy efficiency class:C
Material:Copper
Incl. illuminant:No

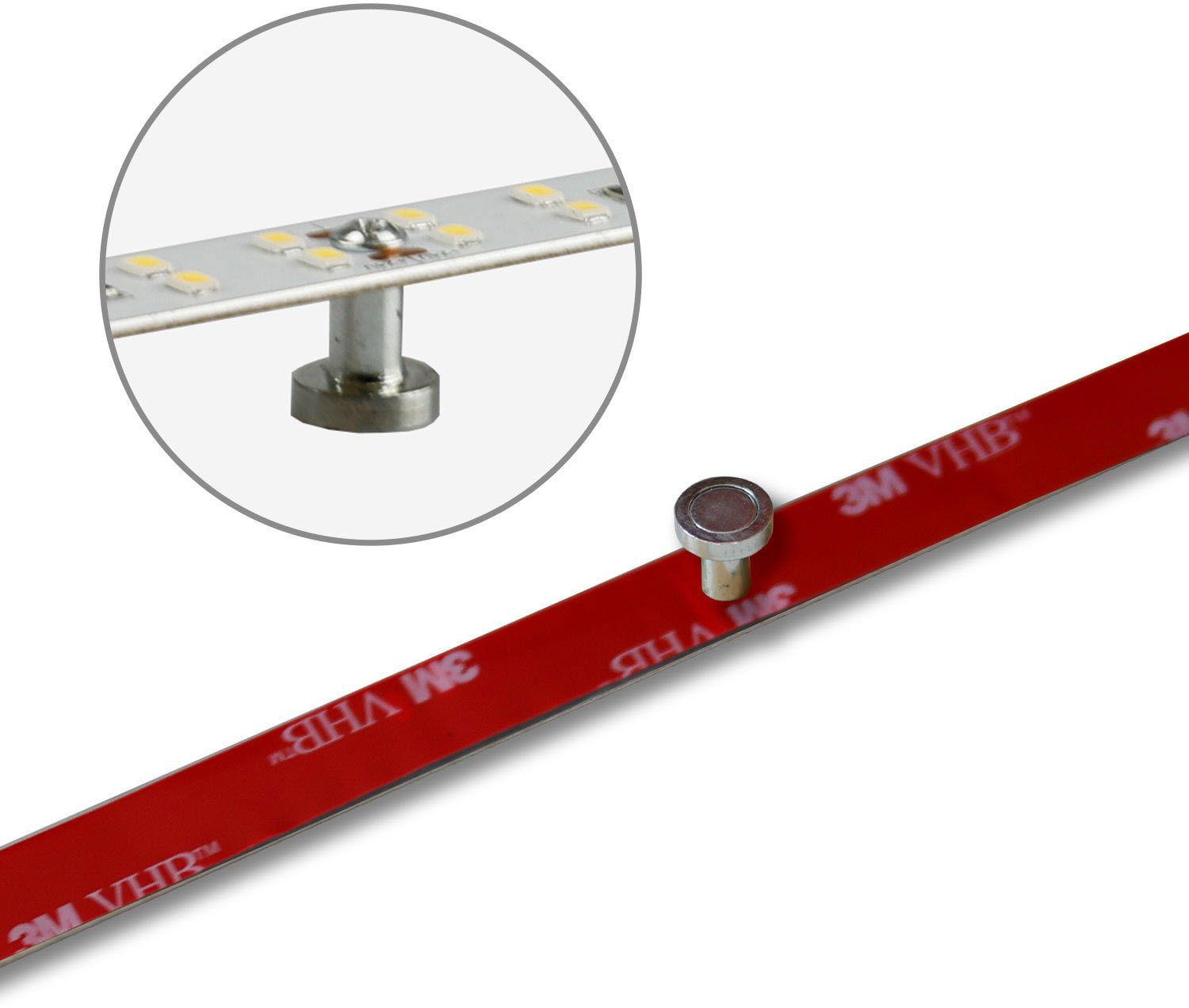

Special features:rigid board incl. 3M VHB adhesive tape on the back and 4 holding magnets for mounting, separation point 50mm with hole drilling, one-sided 30cm connection cable with MiniAMP male plug
