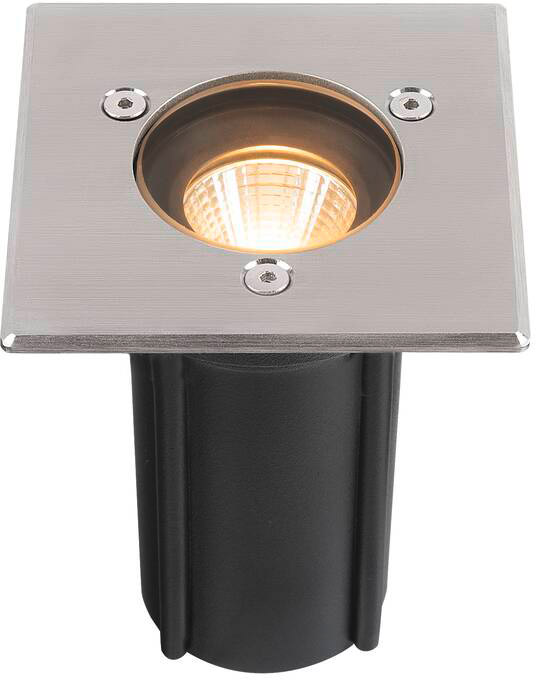

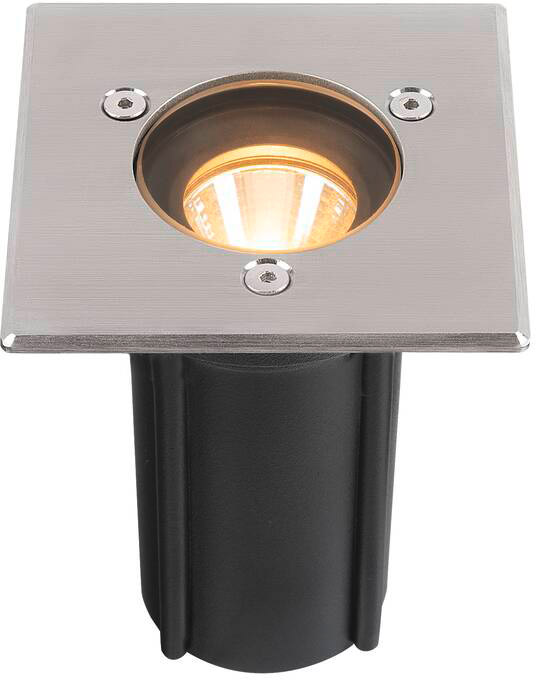

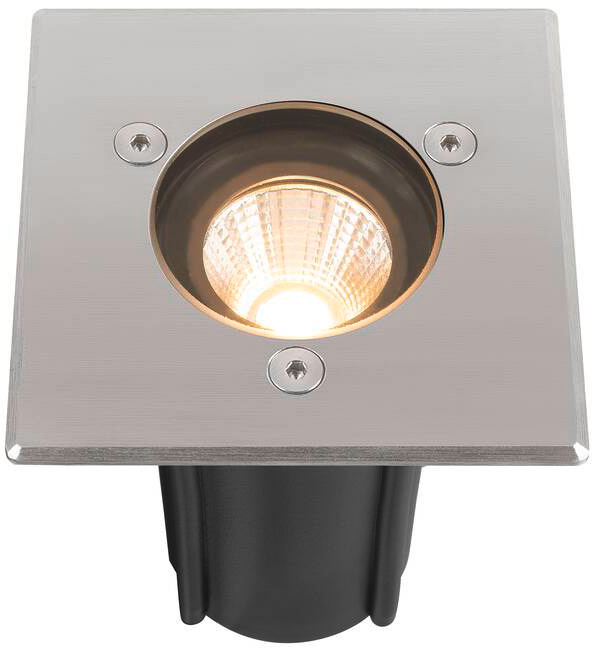

SLV DASAR® S, recessed floor light, square, 4W, 3000K, 24°, IP67, cylindrical, anthracite

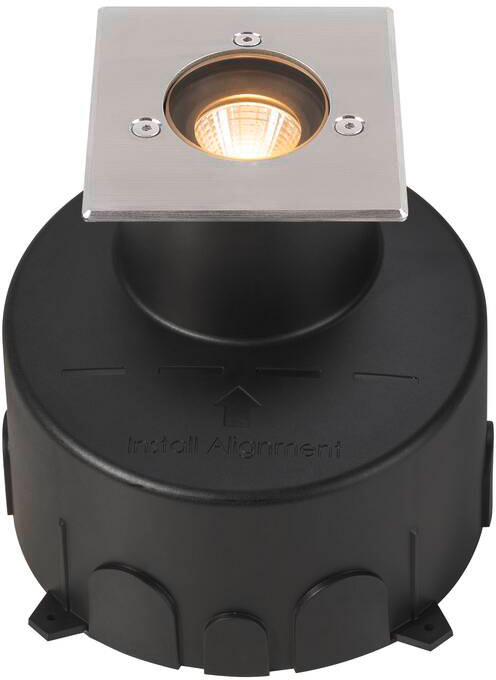

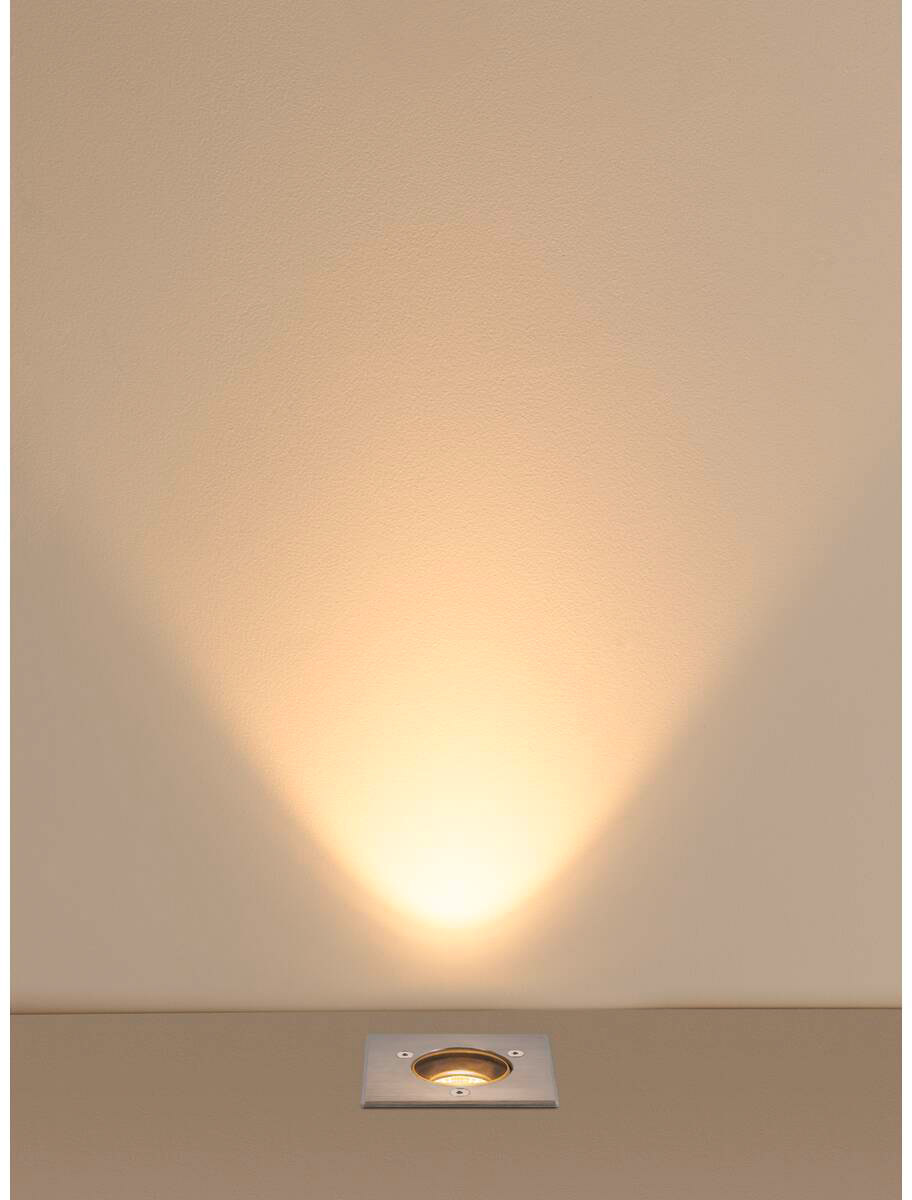

The DASAR® recessed floor lights are characterised by their high quality. The colour temperature of the symmetrical light diffusion can be adjusted via the CCT switch (2700K/3000K). While the mechanical load of the stainless steel-covered light is 2,000 kg, it is protected from all weather conditions thanks to its IP67 rating. The beam angle can be customised with three separately available and interchangeable reflectors (15°, 36°, 60°). The mounting housing, which is available separately, makes installation both quick and easy.Technical data:

Product name:	DASAR® S
Colour:	stainless steel
Material:	aluminium
electrical power:	4 W
Rated value luminous efficacy:	88 lm/W
Luminous flux:	350 lm
Colour temperature:	3000 Kelvin

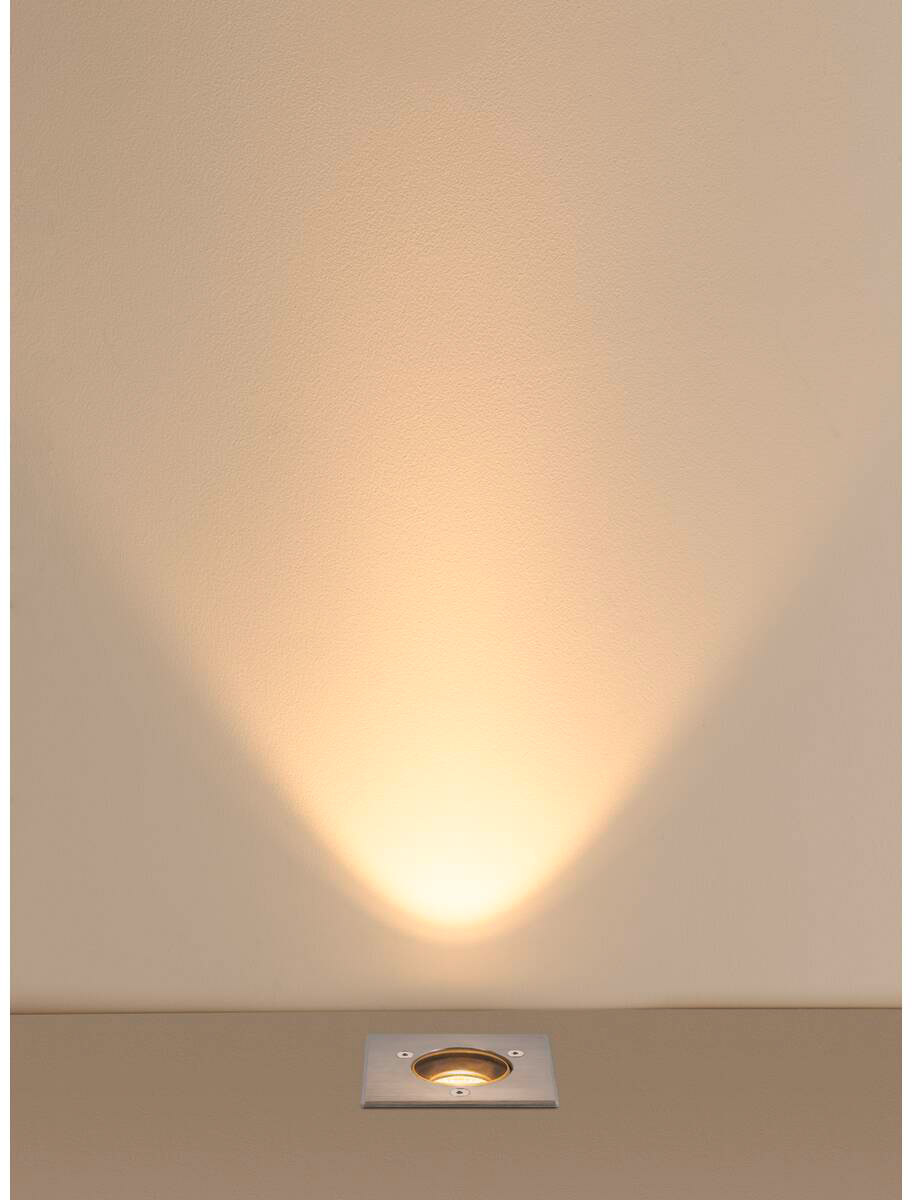

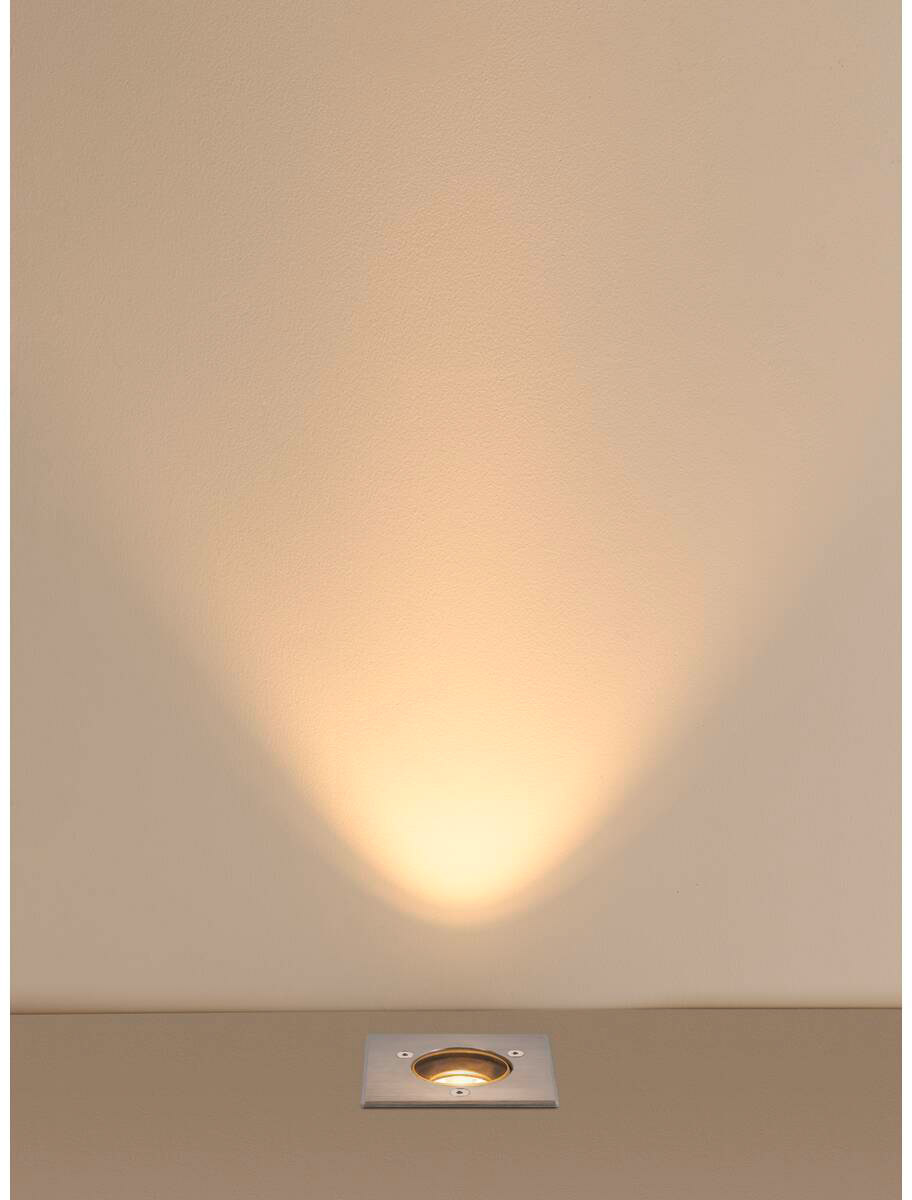

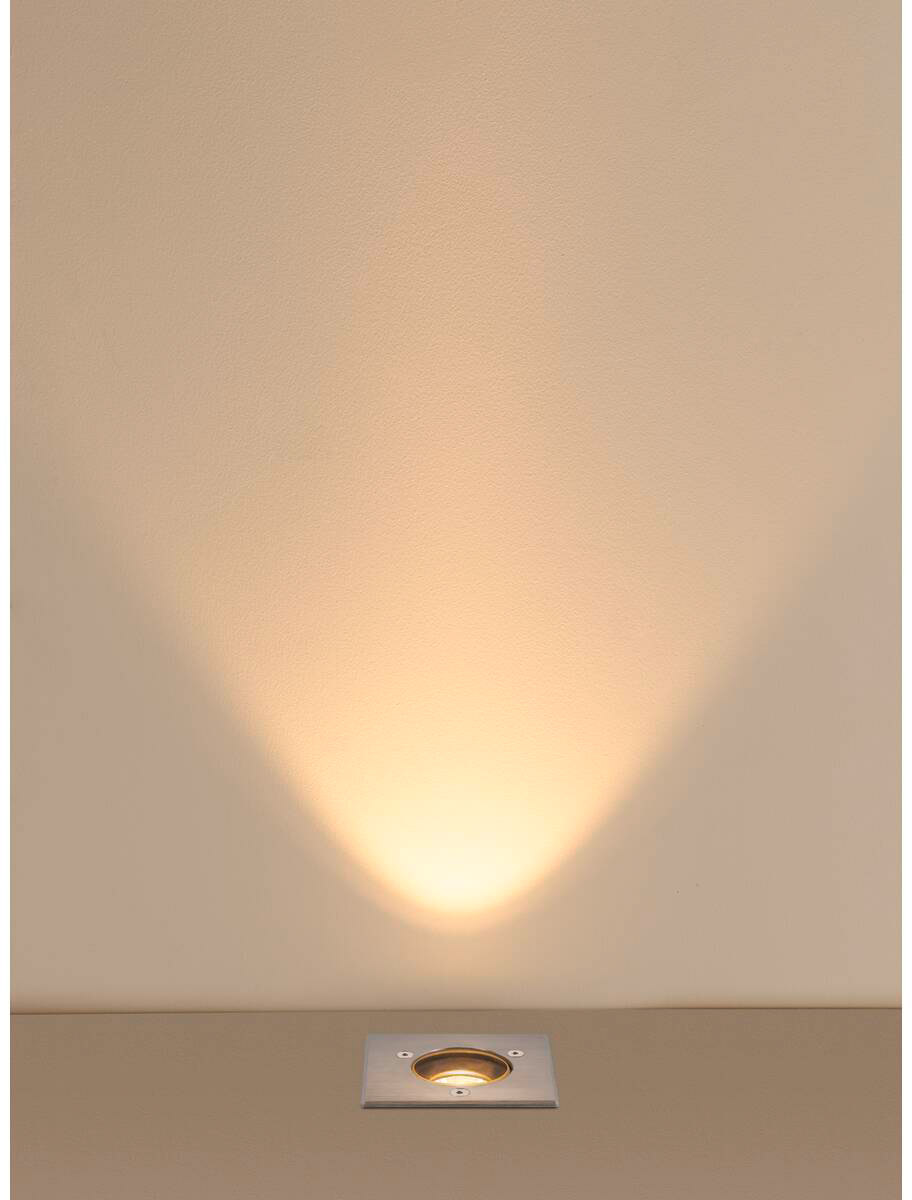

Half beam angle:	24 °
CRI:	80
Protection category:	I
IP Code:	IP67
Assembly:	Recessed
Assembly details:	Ground with Acc.
Shape:	cylindrical

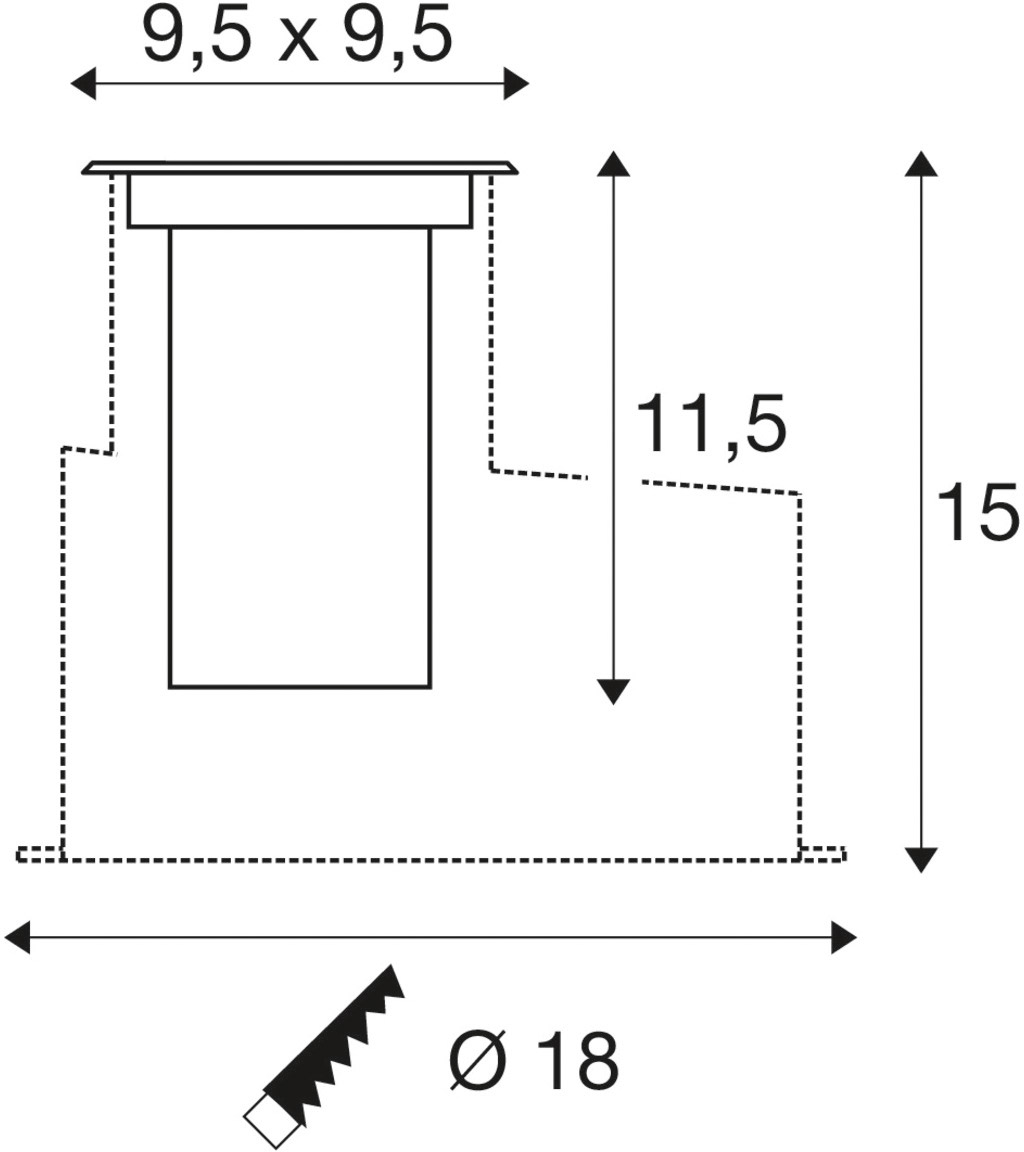

Length:	9.5 cm
Width:	9.5 cm
Depth:	11.5 cm
Shape of cut-out:	round
Installation diameter:	18 cm
Installation depth:	15 cm
Vertical tilting range:	15 °
Shock resistance category:	IK10
Primary nominal voltage:	220-240V ~50/60Hz
Secondary power / secondary voltage:	200mA
Ambient temperature:	-20 - 45 °C
Energy efficiency class:	D
Net weight:	0.6 kg
Weighted consumption:	4 kWh/1.000h
LXXBXX data:	L80B50
Service life:	50000 h
Number of lights on LS B16A:	112 St.
Number of lights on LS C16A:	224 St.
Inrush current level:	10 A
Inrush current duration:	100 µs
Glass temperature (light emission):	60 °C
Stroboscopic visibility measure (SVM):	0.01
Mechanical loading:	2 t

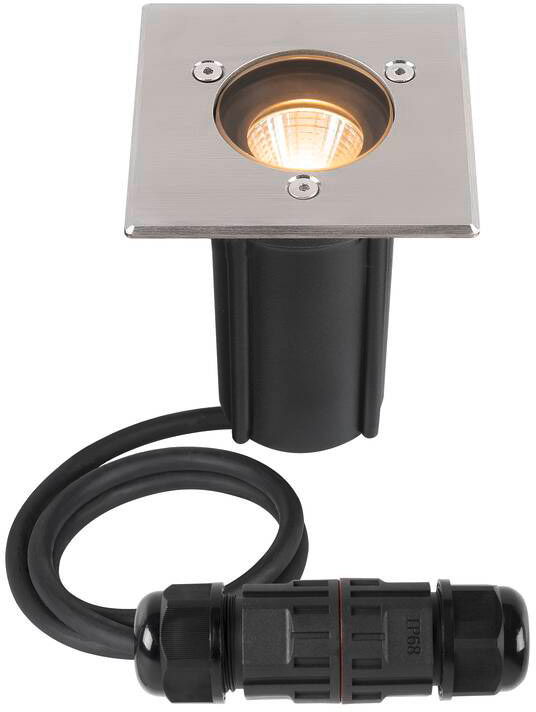

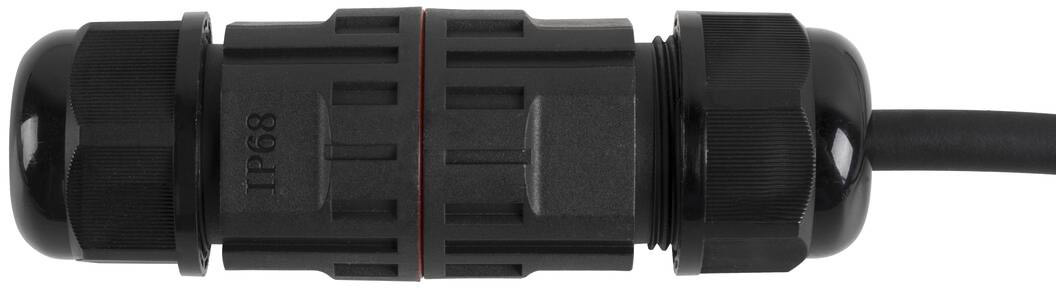

Connection cable length:	50 cm
