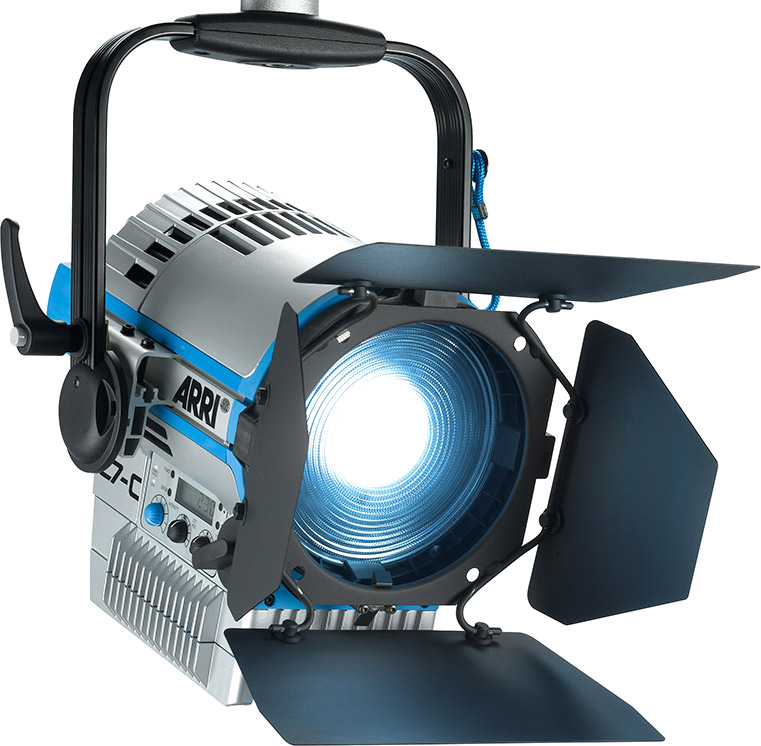

ARRI L7-C LE2, Fresnel, HANGING, RGBW, blue-silver, without plug

Technical Data

Optical System:

Focusable Fresnel

Lens Diameter:

175 mm / 7"

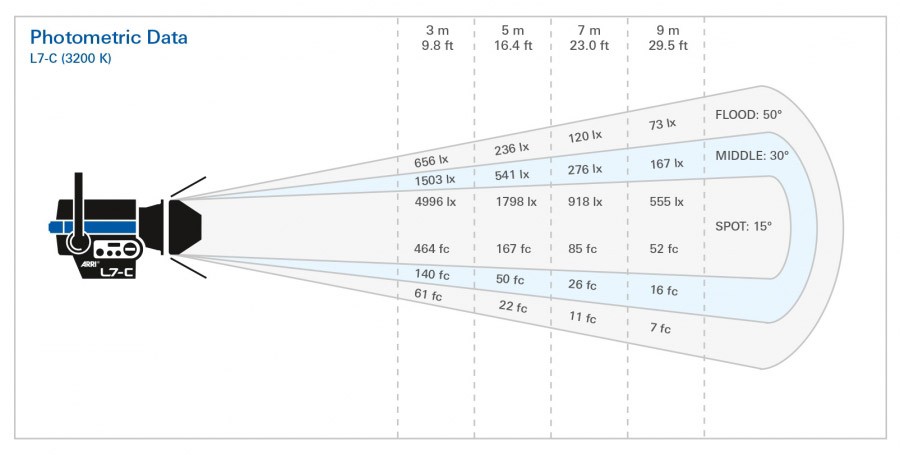

Beam Angle:

15° to 50° (Half Peak Angle)

Weight:

Manual Version

Pole Op Version:

467 x 357 x 351 mm / 18.4 x 14.1 x 13.8"

Packed Weight:

Manual Version

Size w/ spigot (H x W x L):

Manual Version

Size w/o spigot (H x W x L):

Manual Version

Packed Size (H x W x L):

480 x 400 x 400 mm / 18.9 x 15.8 x 15.8"

Handling:

Adjustable Sliding Stirrup, High Strength Tilt Lock,

Mounting:

28 mm Spigot (Junior Pin)

Tilt Angle:

+/- 90°

Power Supply Range:

100 to 250 V AC, 50/60 Hz

Power Consumption:

160 W Nominal, 220 W Maximum

Power Connection:

powerCON TRUE1 (Bare Ends / Schuko / Edison cables available)

White Light :

2,800 K to 10,000 K Continuously Variable Correlated Color Temperature

Colored Light:

Full RGB+W Color Gamut with Hue and Saturation Control

Color Temperature Tolerance:

+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)

Color Rendition:

CRI 94 (3,200 K to 6,500 K), TLCI Average >90

Green-Magenta Adjustment:

Continuously Adjustable (Full Minusgreen to Full Plusgreen)

Dimming:

0 to 100% Continuous

Control:

5-Pin DMX In and Through, Optional On-Board Controller, Mini-USB

Remote Device Management (RDM):

DMX Setup, Hour Counter and Standard RDM Commands

Mini-USB Interface:

DMX Setup, Fixture Status and Firmware Upgrade Through PC Software

Housing Color:

Blue/Sliver, Black

Ambient Temperature Operation:

-20 to 45° C (-4 to 113° F)

Protection Class / IP Rating:

I / IP 20

Estimated LED Lifetime (L70):

50,000 hours

Estimated Color Shift Over Lifetime (L70):

+/- 5% K

Certifications:

CE, CB, GS, cNRTLus, FCC, PSE
