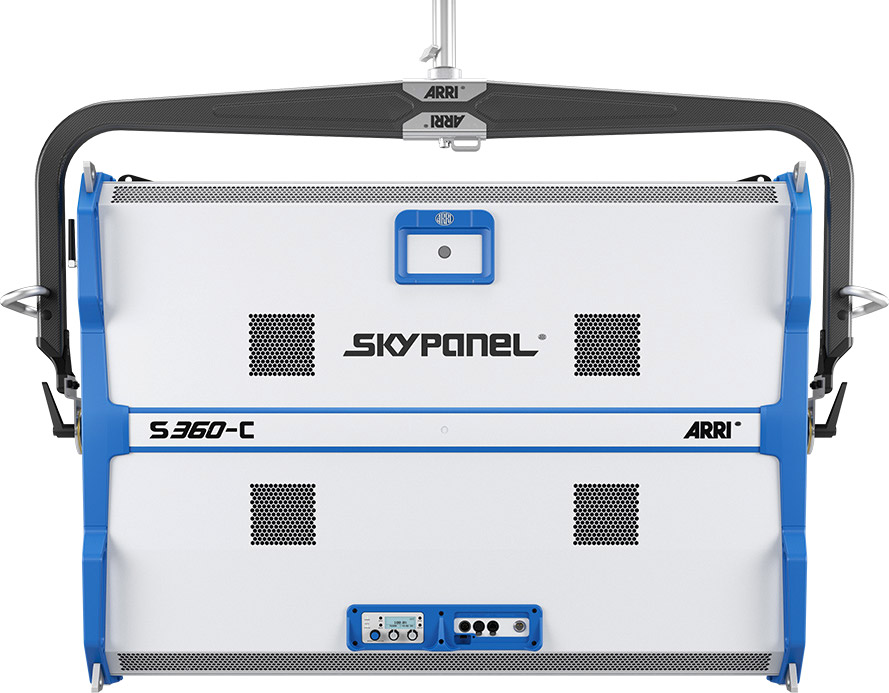

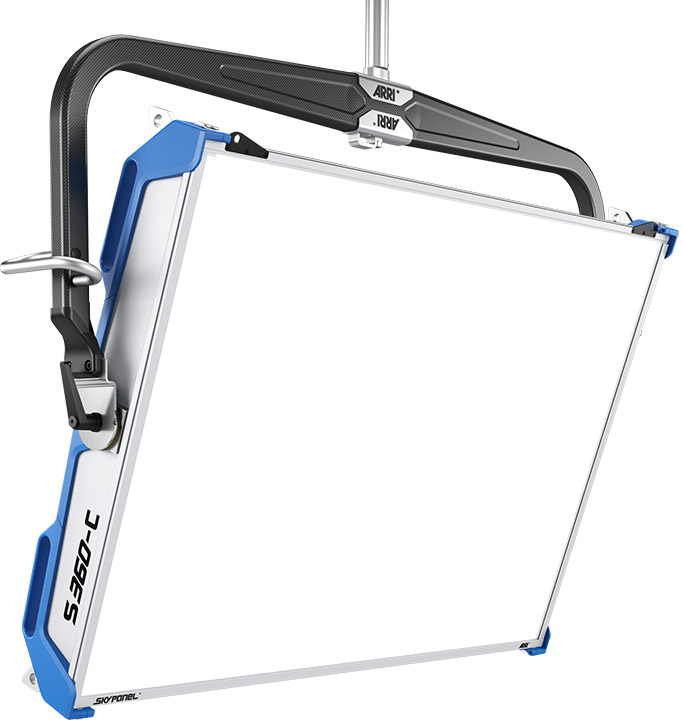

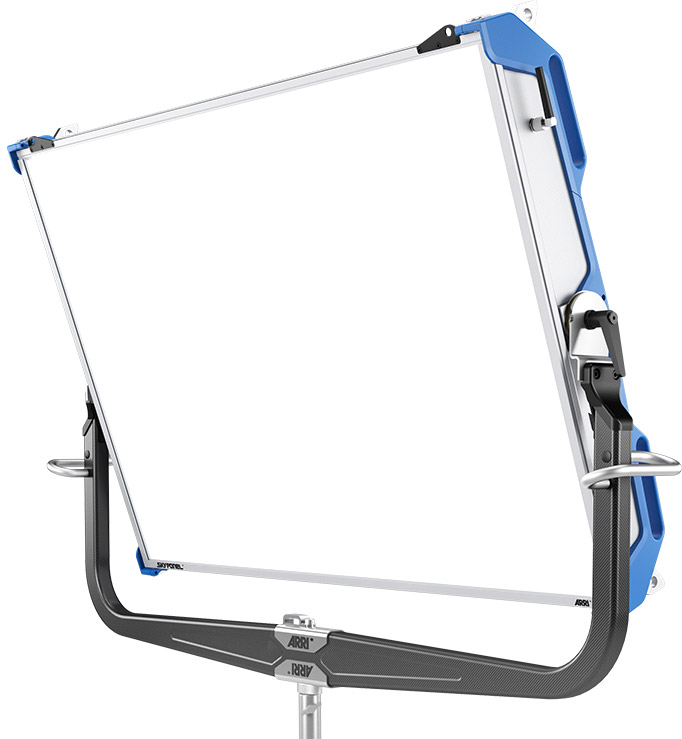

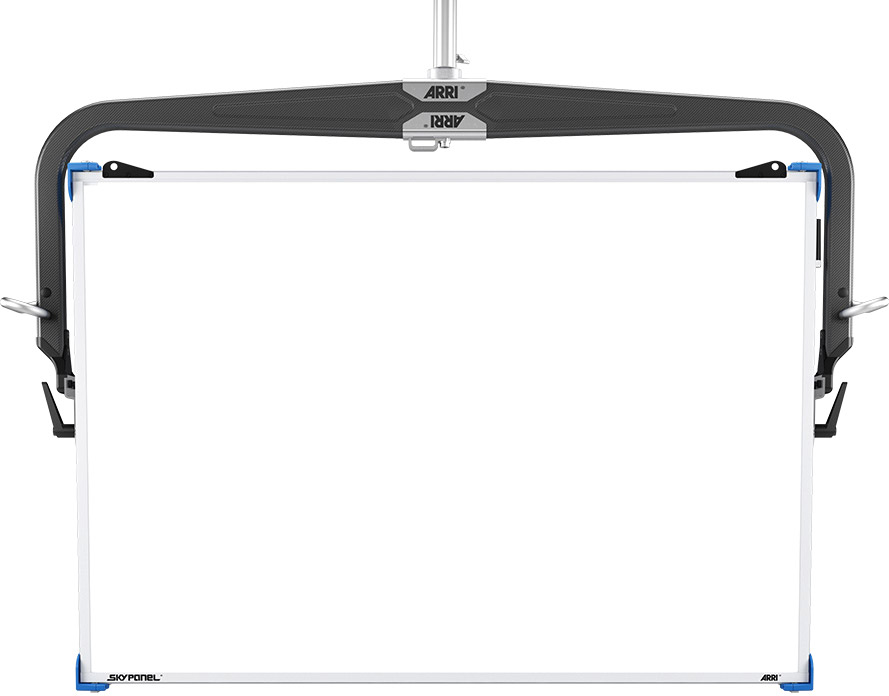

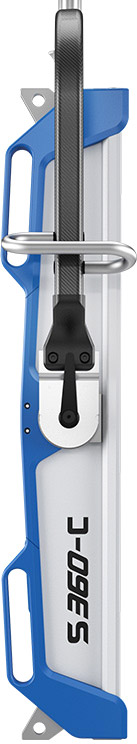

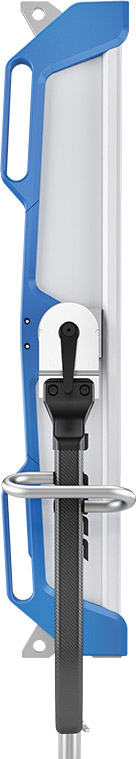

ARRI SkyPanel S360-C LED RGB-W blue-silver, Standard Diff., Schuko

Technical Data

Optical System:

Swappable Soft Diffusion Panels

Light Aperture:

1280 x 870 mm / 50.4 x 34.4“

Beam Angle:

105º (Half Peak Angle)

Weight:

41 kg / 90.4 lbs (incl. Carbon Fiber Yoke and Spigot)

Handling:

Carbon Fiber Yoke, Dual High-Strength Tilt Lock

Mounting:

28 mm Spigot (Junior Pin)

Tilt Angle:

+/- 90°

Lamphead Voltage Input:

54 V DC

Power Consumption:

1,500 W Nominal, 1,600 W Maximum

Lamphead Power Connection:

Male 4-Pin Metal Locking - 30 Amp

White Light:

2,800 K to 10,000 K continuously variable correlated color temperature

Colored Light:

Full RBG+W color gamut with Hue and Saturation control

Color Temperature Tolerance:

+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)

CRI Average:

> 95

TLCI Average:

> 90

Green-Magenta Adjustment:

continuously adjustable (Full Minusgreen to Full Plusgreen)

Dimming:

0 to 100 % continuous

Control:

On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net

Wireless Control:

LumenRadio CRMX (DMX & RDM)

Remote Device Management (RDM):

DMX Setup, Hour Counter and Standard RDM commands

Software Interface Ethernet:

DMX Setup, Fixture Status & Control, and Firmware Upgrade through PC or Mac USB-A Software Upgrade via flash drive

Housing Colour:

Blue/Silver

Ambient Temperature Operation:

-20 to +45º C (minus4 to +113º F)

Protection Class / IP Rating:

III / IP20

Estimated LED Lifetime (L70):

50,000 hours

Estimated Color Shift Over Lifetime (CCT):

+/- 5 %

Certifications:

CE, CB, ENEC, cNRTLus, FCC pending: PSE

Power Supply Input Range:

100 to 240 V ~, 50/60 Hz

Power Supply Output Range:

54 V DC

Power Input Connection:

powerCON 32A (Schuko / Edison / China / Japan / Bare Ends cables available)

Power Output Connection:

Female 4-Pin Metal Locking - 30 Amp

Protection Class / IP Rating:

I / IP20

Weight:

11.2 kg / 24.7 lbs

Dimensions:

451 x 240 x 206 mm / 17.7 x 9.4 x 8.1“

Control:

On-Board On / Off Switch

Mounting SkyPanel:

PSU Super Clamp Adapter

Certifications:

CE, CB, ENEC, cNRTLus pending: PSE
