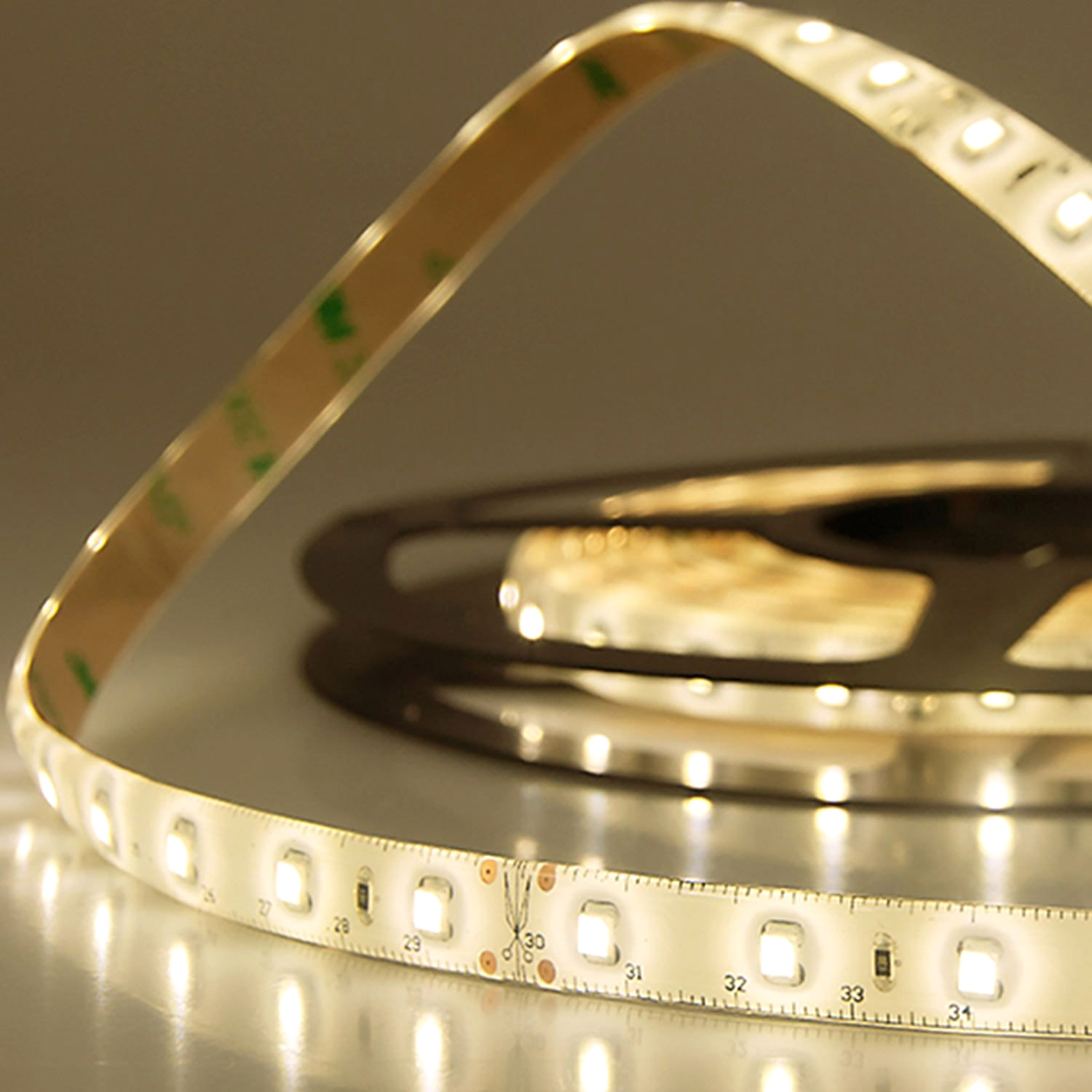

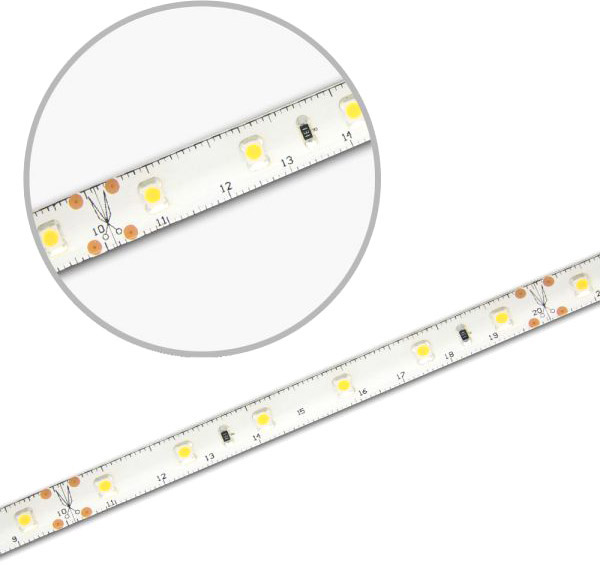

ISOLED LED SIL830 flex stripe, 24V, 4.8W, IP66, warm white
€35.62 *
incl. tax,
plus shipping costs
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111000760
EAN: 9009377019661
LED SIL830 flex stripe, 24V, 4.8W, IP66, warm white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED SIL830 flex stripe, 24V, 4.8W, IP66, warm white"
LED SIL830 flex stripe, 24V, 4.8W, IP66, warm white

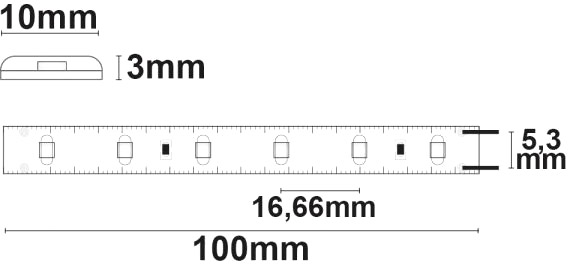

| Length: | 5000mm |
| Width: | 10mm |
| Height: | 3mm |
| Net weight: | 200g |
| LED type: | 300xSMD3528 |
| Nominal voltage: | 24V DC |
| Rated power: | 4,8 W/m |
| Colour temperature: | 3000K |
| Beam angle: | 120° |
| Light intensity: | 532cd |
| Colour rendering: | > 85 CRI |
| Lifetime: | 25000h |
| Switching cycles: | 30000 |
| Protection class: | IP66 |
| Energy efficiency class: | A++ |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white, silicone |
| Indoor and Outdoor: | Yes |
| Incl. illuminant: | No |
| Special features: | Separation point: 50mm | Pitch (chip center-center): 16.66mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 10m | Clean and degrease the substrate before gluing! Do not replace it again! |
