ISOLED LED SIL830 flex stripe, 12V, 9.6W, IP66, warm white

€51.49 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111000770
EAN: 9009377019692
LED SIL830 flex stripe, 12V, 9.6W, IP66, warm white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED SIL830 flex stripe, 12V, 9.6W, IP66, warm white"
LED SIL830 flex stripe, 12V, 9.6W, IP66, warm white
Length:5000mm
Width:10mm
Height:3mm
Net weight:204g
LED type:600xSMD3528
Nominal voltage:12V DC
Rated power:8 W/m
Colour temperature:3000K

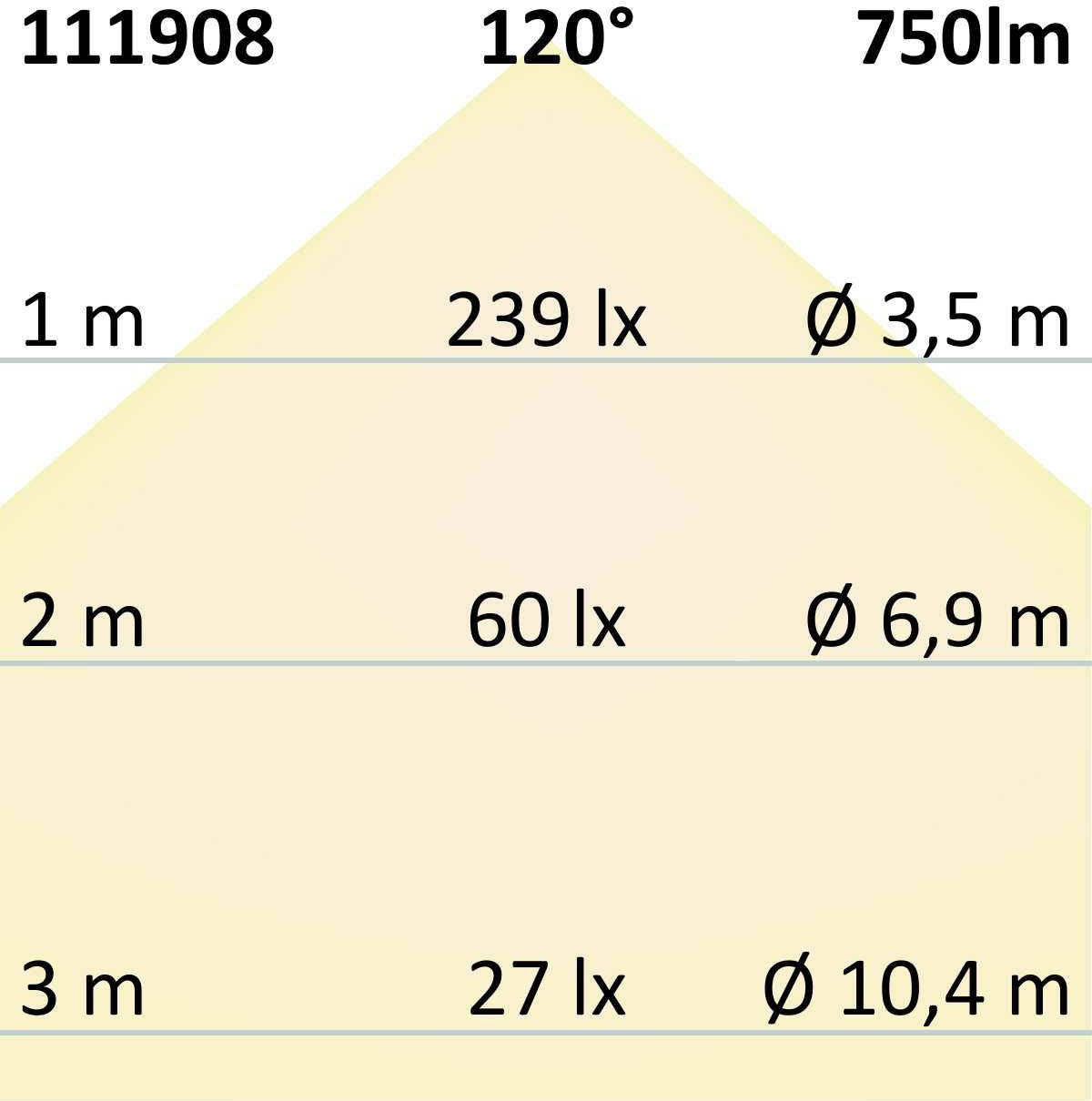

Beam angle:120°
Light intensity:961cd
Colour rendering:> 85 CRI
Lifetime:25000h
Switching cycles:30000
Protection class:IP66
Energy efficiency class:A+
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white, silicone
Indoor and Outdoor:Yes
Incl. illuminant:No

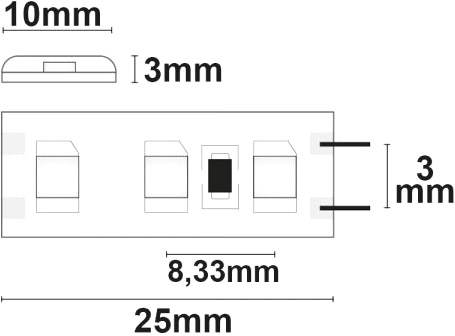

Special features:Separation point: 25mm | Pitch (chip center-center): 8.33mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required!
