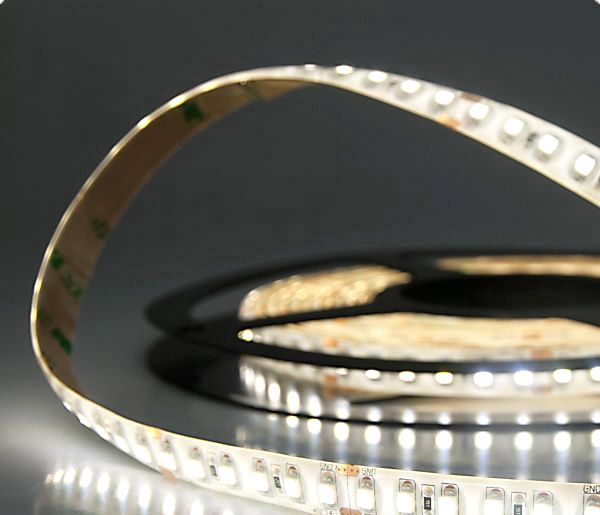

ISOLED LED SIL845 flex stripe, 12V, 9.6W, IP66, neutral white
€32.52 *
€51.49 *
(36.84% Saved)
incl. tax,
plus shipping costs
Availability:
Low stock; Delivery time: 5-7 days
Delivery time: approx. 5-7 days
Item number: 111000775
EAN: 9009377019722
LED SIL845 flex stripe, 12V, 9.6W, IP66, neutral white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED SIL845 flex stripe, 12V, 9.6W, IP66, neutral white"
LED SIL845 flex stripe, 12V, 9.6W, IP66, neutral white
| Length: | 5000mm |
| Width: | 10mm |
| Height: | 3mm |
| Net weight: | 206g |
| LED type: | 600xSMD3528 |
| Nominal voltage: | 12V DC |
| Rated power: | 8 W/m |
| Colour temperature: | 4500K |
| Beam angle: | 120° |
| Light intensity: | 907cd |
| Colour rendering: | > 89 CRI |
| Lifetime: | 25000h |
| Switching cycles: | 30000 |
| Protection class: | IP66 |
| Energy efficiency class: | A+ |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white, silicone |
| Indoor and Outdoor: | Yes |
| Incl. illuminant: | No |

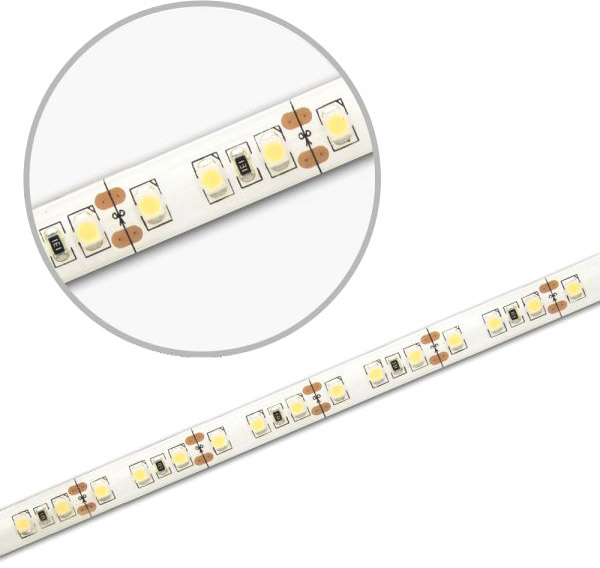

| Special features: | Separation point: 25mm | Pitch (chip center-center): 8.33mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required! |
