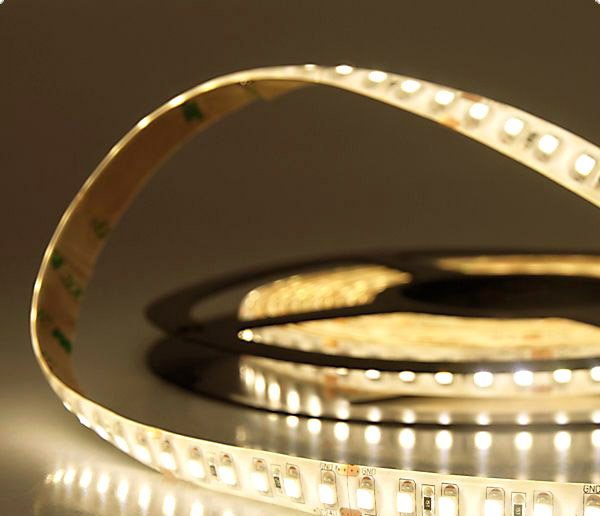

ISOLED LED SIL830 flex stripe, 24V, 9.6W, IP66, warm white
€51.49 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111000780
EAN: 9009377019746
LED SIL830 flex stripe, 24V, 9.6W, IP66, warm white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED SIL830 flex stripe, 24V, 9.6W, IP66, warm white"
LED SIL830 flex stripe, 24V, 9.6W, IP66, warm white

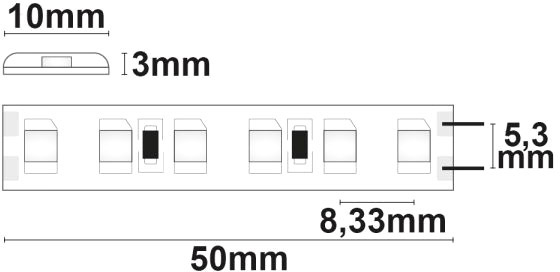

Length: | 5000mm |
Width: | 10mm |
Height: | 3mm |
Net weight: | 196g |
LED type: | 600xSMD3528 |
Nominal voltage: | 24V DC |
Rated power: | 9,6 W/m |
Colour temperature: | 3000K |
Beam angle: | 120° |
Light intensity: | 1041cd |
Colour rendering: | > 85 CRI |
Lifetime: | 25000h |
Switching cycles: | 30000 |
Protection class: | IP66 |
Energy efficiency class: | A+ |
Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
Material: | PCB copper/white, silicone |
Indoor and Outdoor: | Yes |
Incl. illuminant: | No |
Special features: | Separation point: 25mm | Pitch (chip center-center): 8.33mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required! |
