ISOLED LED SIL RGB flex stripe, 12V, 7.2W, IP66

€43.55 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111000790
EAN: 9009377019784
LED SIL RGB flex stripe, 12V, 7.2W, IP66 Length: 5000mm Width: 10mm Height: 3mm... more
All information about the product:
"ISOLED LED SIL RGB flex stripe, 12V, 7.2W, IP66"
LED SIL RGB flex stripe, 12V, 7.2W, IP66

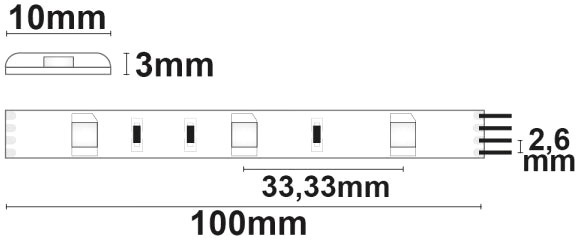

Length:5000mm
Width:10mm
Height:3mm
Net weight:202g
LED type:150xSMD5050
Nominal voltage:12V DC
Rated power:7,2 W/m
Colour temperature:RGB
Beam angle:120°
Luminous flux:RGBlm
Light intensity:302cd
Lifetime:25000h
Switching cycles:30000
Protection class:IP66
Energy efficiency class:A
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white, silicone
Indoor and Outdoor:Yes
Incl. illuminant:No
Special features:Separation point: 100mm | Pitch (chip center-center): 33.33mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 10m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required!
Further links
We will be happy to advise you!
You can reach us:
Mon-Fri: 08:00 am – 05:00 pm
You can find answers to frequently asked questions here: Service & help
Including buyer protection
Verified identity
Protection of personal data
Learn more about us! Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads for the product:
"ISOLED LED SIL RGB flex stripe, 12V, 7.2W, IP66"
Document type File size
EPREL-Product data sheet
(0.22 MB)
0.22 MB
