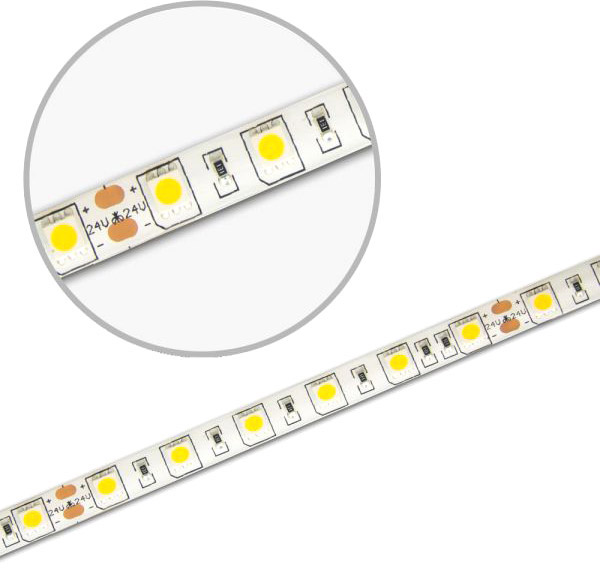

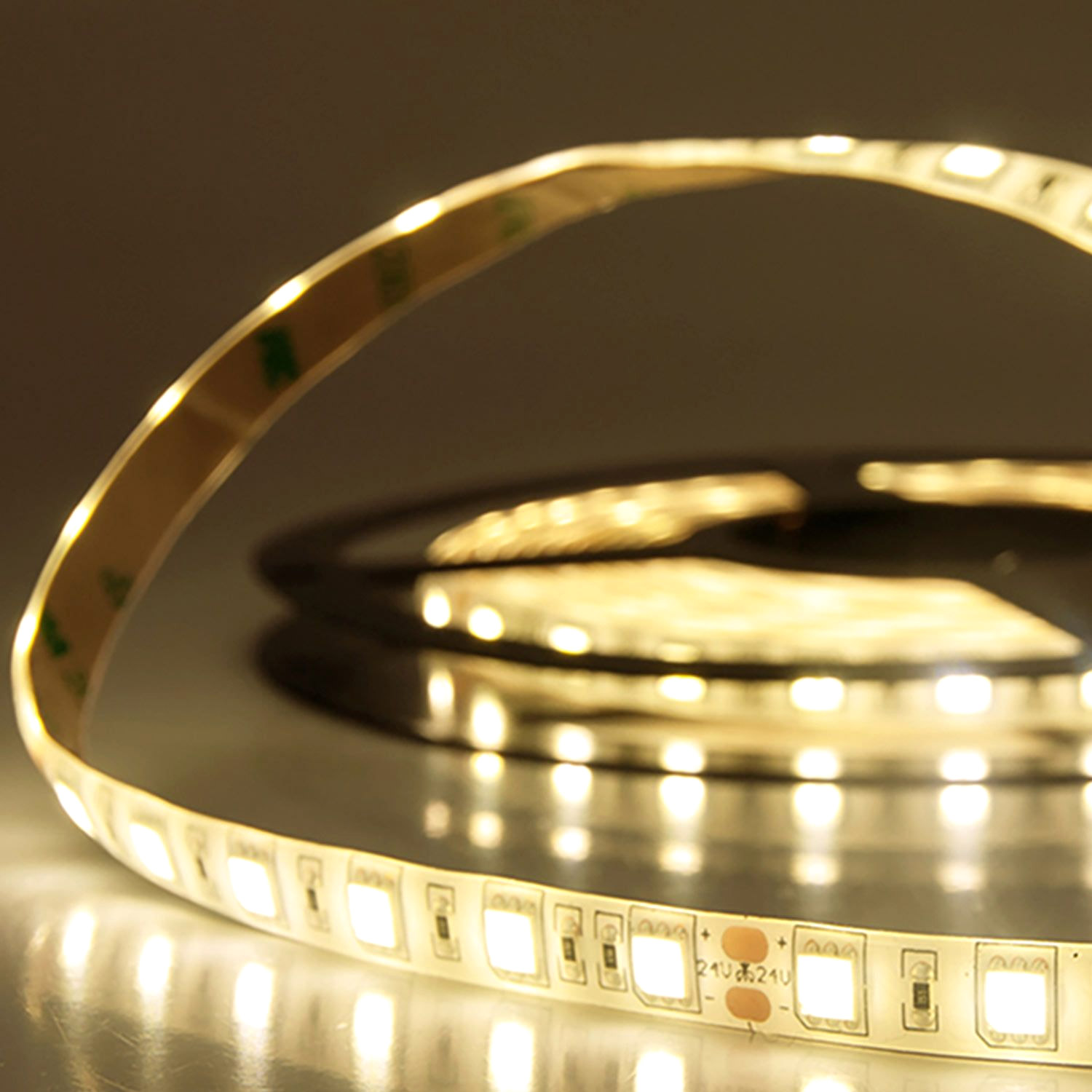

ISOLED LED SIL830 flex stripe, 24V, 14.4W, IP66, warm white
€63.39 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111000805
EAN: 9009377019845
LED SIL830 flex stripe, 24V, 14.4W, IP66, warm white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED SIL830 flex stripe, 24V, 14.4W, IP66, warm white"
LED SIL830 flex stripe, 24V, 14.4W, IP66, warm white

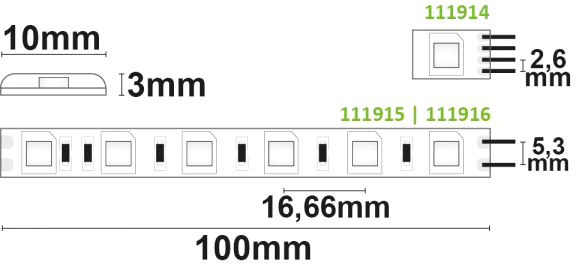

| Length: | 5000mm |
| Width: | 10mm |
| Height: | 3mm |
| Net weight: | 218g |
| LED type: | 300xSMD5050 |
| Nominal voltage: | 24V DC |
| Rated power: | 14,4 W/m |
| Colour temperature: | 3000K |
| Beam angle: | 120° |
| Light intensity: | 1541cd |
| Colour rendering: | > 85 CRI |
| Lifetime: | 25000h |
| Switching cycles: | 30000 |
| Protection class: | IP66 |
| Energy efficiency class: | A+ |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white, silicone |
| Indoor and Outdoor: | Yes |
| Incl. illuminant: | No |
| Special features: | Separation point: 100mm | Pitch (chip center-center): 16.66mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required! |
