ISOLED LED SIL RGB flex stripe, 24V, 7.2W, IP20

€39.59 *
incl. tax, plus shipping costs
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111001110
EAN: 9009377023392
LED SIL RGB flex stripe, 24V, 7.2W, IP20 Length: 5000mm Width: 10mm Height: 2mm... more
All information about the product:
"ISOLED LED SIL RGB flex stripe, 24V, 7.2W, IP20"
LED SIL RGB flex stripe, 24V, 7.2W, IP20
Length:5000mm
Width:10mm
Height:2mm
Net weight:104g
LED type:150xSMD5050
Nominal voltage:24V DC
Rated power:7 W/m
Colour temperature:RGB
Beam angle:120°
Luminous flux:RGBlm
Light intensity:302cd
Lifetime:25000h
Switching cycles:30000
Protection class:IP20
Energy efficiency class:A
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Incl. illuminant:No

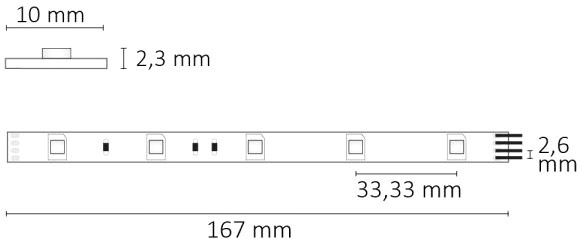

Special features:Separation point: 167mm | Pitch (chip center-center): 33.33mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 10m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required!
