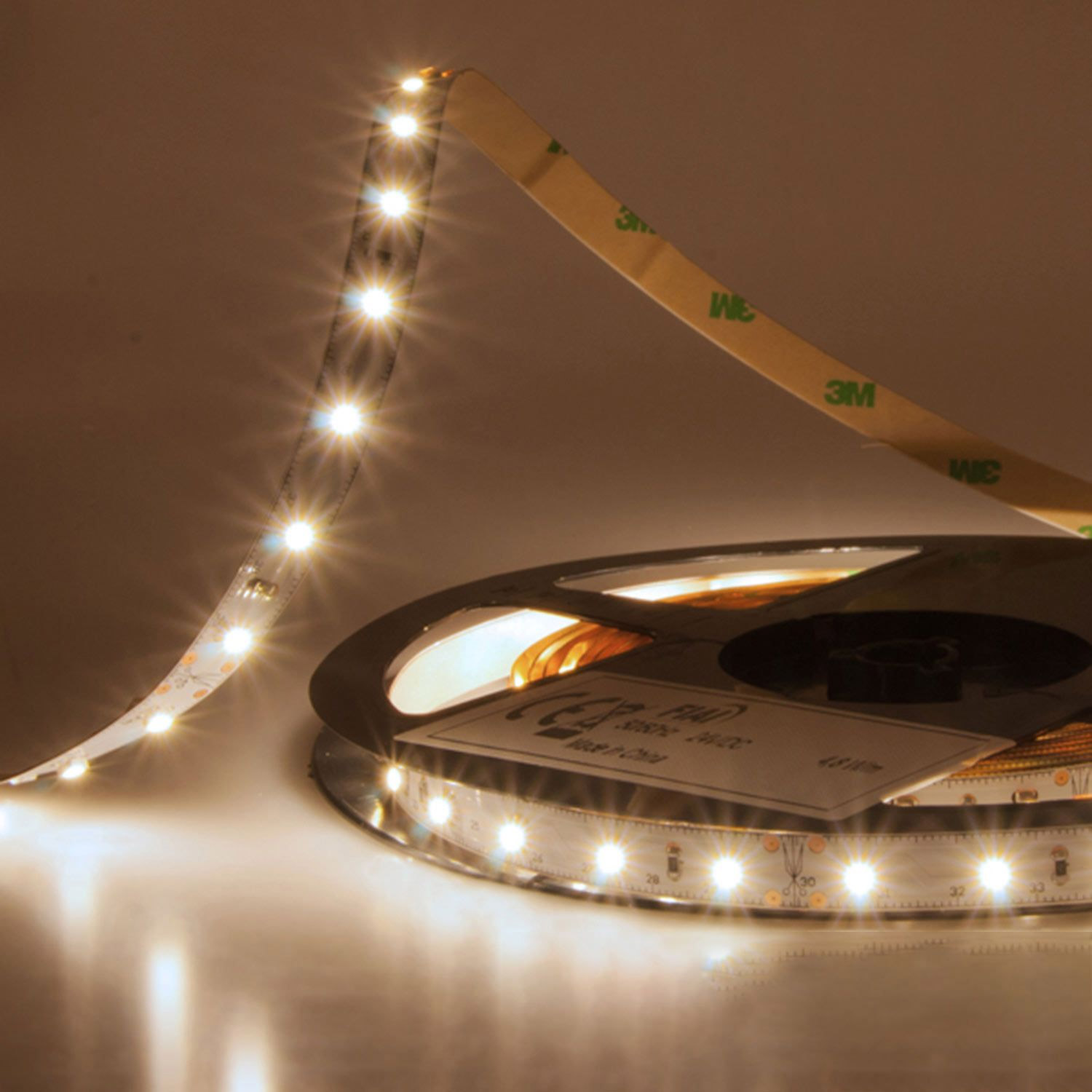

ISOLED LED SIL830 flex stripe, 24V, 4.8W, IP20, warm white
€27.69 *
incl. tax,
plus shipping costs
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111001325
EAN: 9009377026614
LED SIL830 flex stripe, 24V, 4.8W, IP20, warm white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED SIL830 flex stripe, 24V, 4.8W, IP20, warm white"
LED SIL830 flex stripe, 24V, 4.8W, IP20, warm white

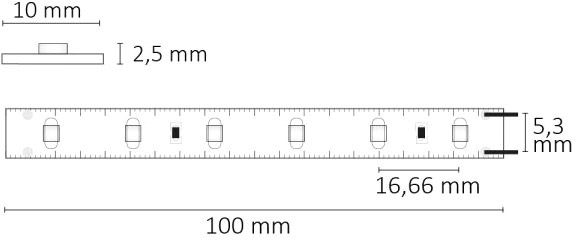

| Length: | 5000mm |
| Width: | 10mm |
| Height: | 3mm |
| Net weight: | 100g |
| LED type: | 300xSMD3528 |
| Nominal voltage: | 24V DC |
| Rated power: | 4,8 W/m |
| Colour temperature: | 3000K |
| Beam angle: | 120° |
| Light intensity: | 646cd |
| Colour rendering: | > 85 CRI |
| Lifetime: | 25000h |
| Switching cycles: | 30000 |
| Protection class: | IP20 |
| Energy efficiency class: | A++ |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white |
| Incl. illuminant: | No |

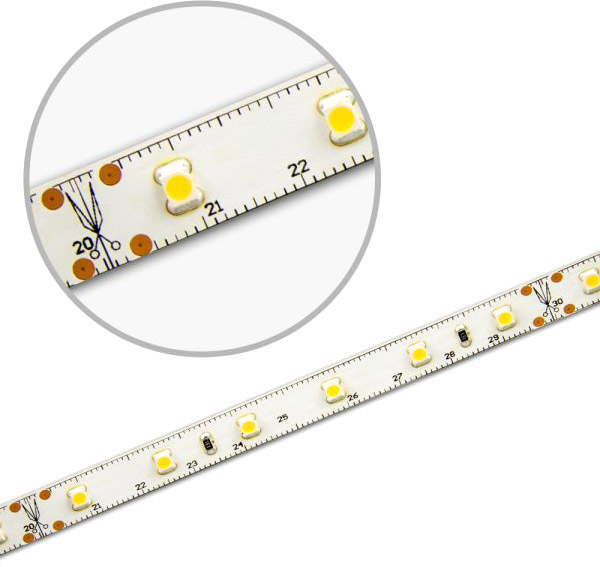

| Special features: | Separation point: 100mm | Pitch (chip center-center): 16.66mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 10m | Clean and degrease the substrate before gluing! Do not replace it again! |
Further links
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"ISOLED LED SIL830 flex stripe, 24V, 4.8W, IP20, warm white"
| Document type | File size | |
|
EPREL-Product data sheet | 0.24 MB |
