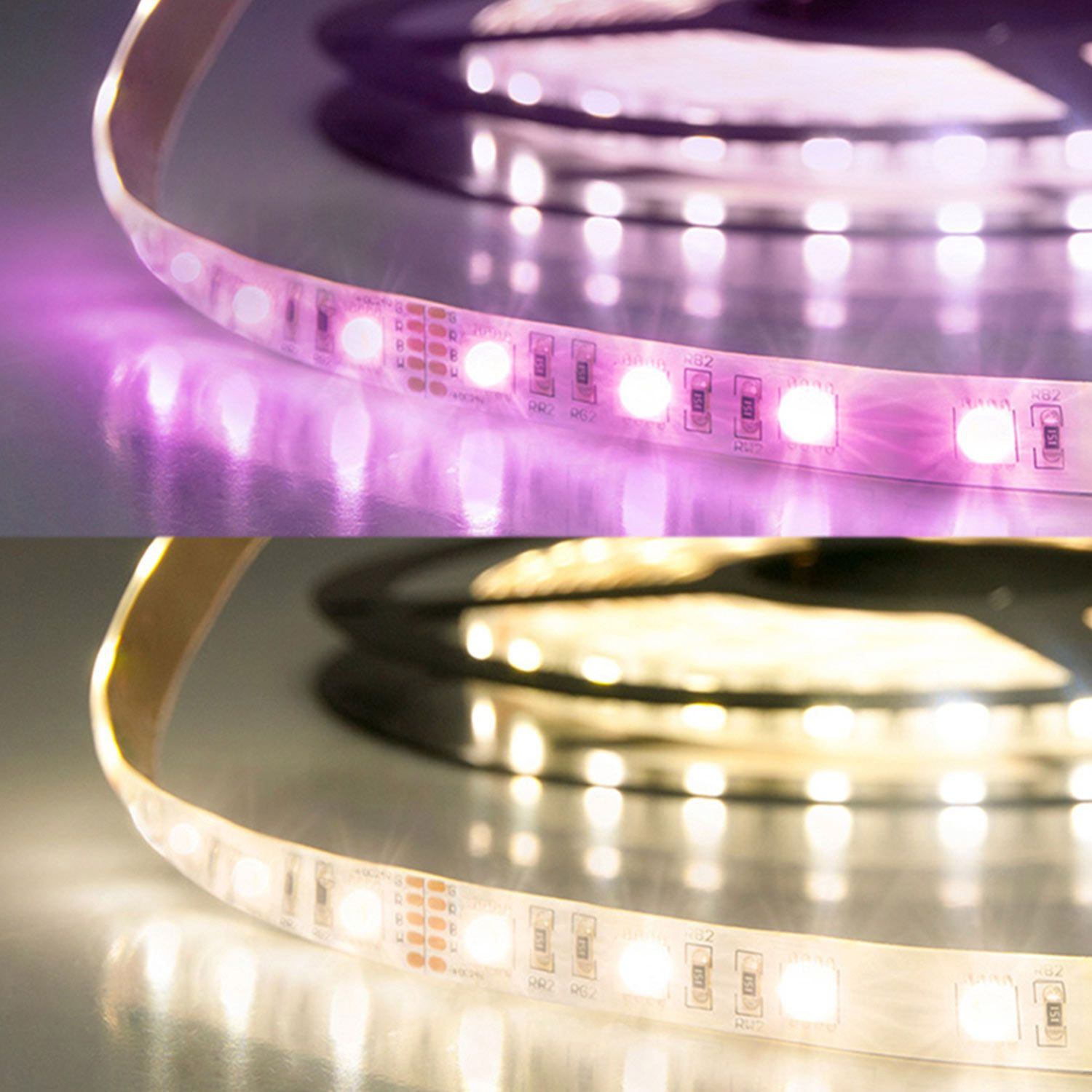

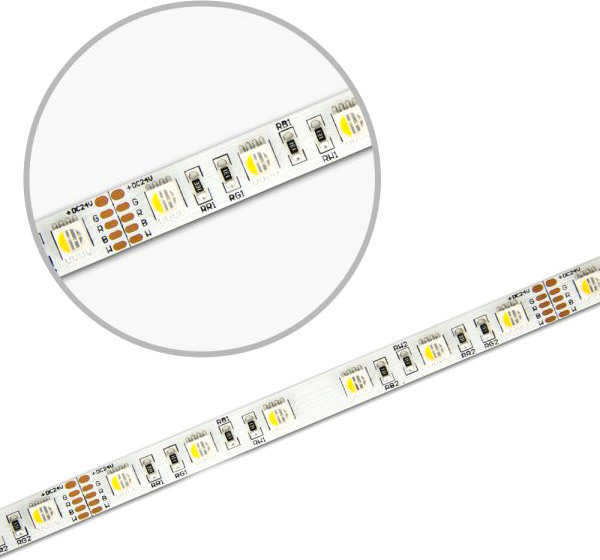

ISOLED LED SIL RGB+WW flex stripe, 24V, 19W, IP20, 4 in 1 chip
€86.47 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111002440
EAN: 9009377038907
LED SIL RGB+WW flex stripe, 24V, 19W, IP20, 4 in 1 chip Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED SIL RGB+WW flex stripe, 24V, 19W, IP20, 4 in 1 chip"
LED SIL RGB+WW flex stripe, 24V, 19W, IP20, 4 in 1 chip

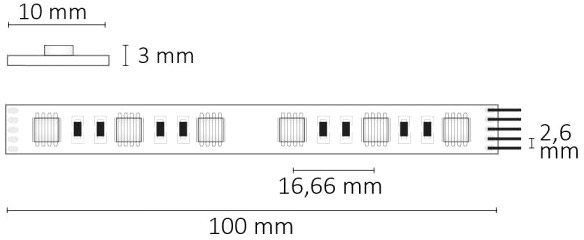

| Length: | 5000mm |
| Width: | 10mm |
| Height: | 3mm |
| Net weight: | 124g |
| LED type: | 300xSMD5050 4in1 |
| Nominal voltage: | 24V DC |
| Rated power: | 19 W/m |
| Colour temperature: | RGB+2700K |
| Beam angle: | 120° |
| Light intensity: | 1391cd |
| Colour rendering: | > 86 CRI |
| Lifetime: | 25000h |
| Switching cycles: | 30000 |
| Protection class: | IP20 |
| Energy efficiency class: | B |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white |
| Incl. illuminant: | No |
| Special features: | Separation point: 100mm | Pitch (chip center-center): 16.66mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 4m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required! |
