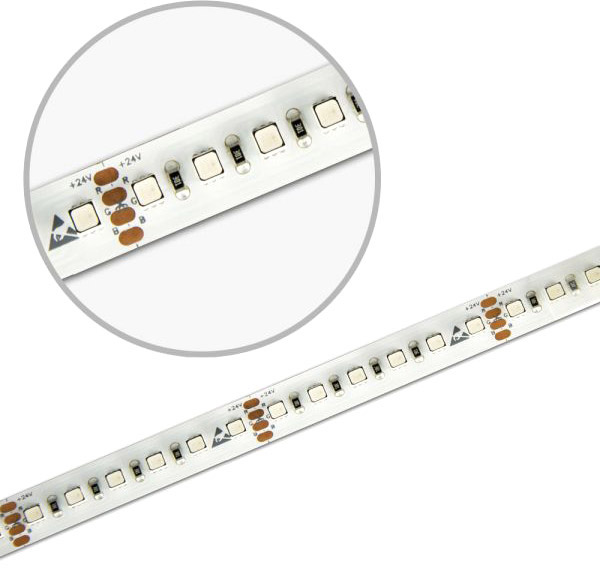

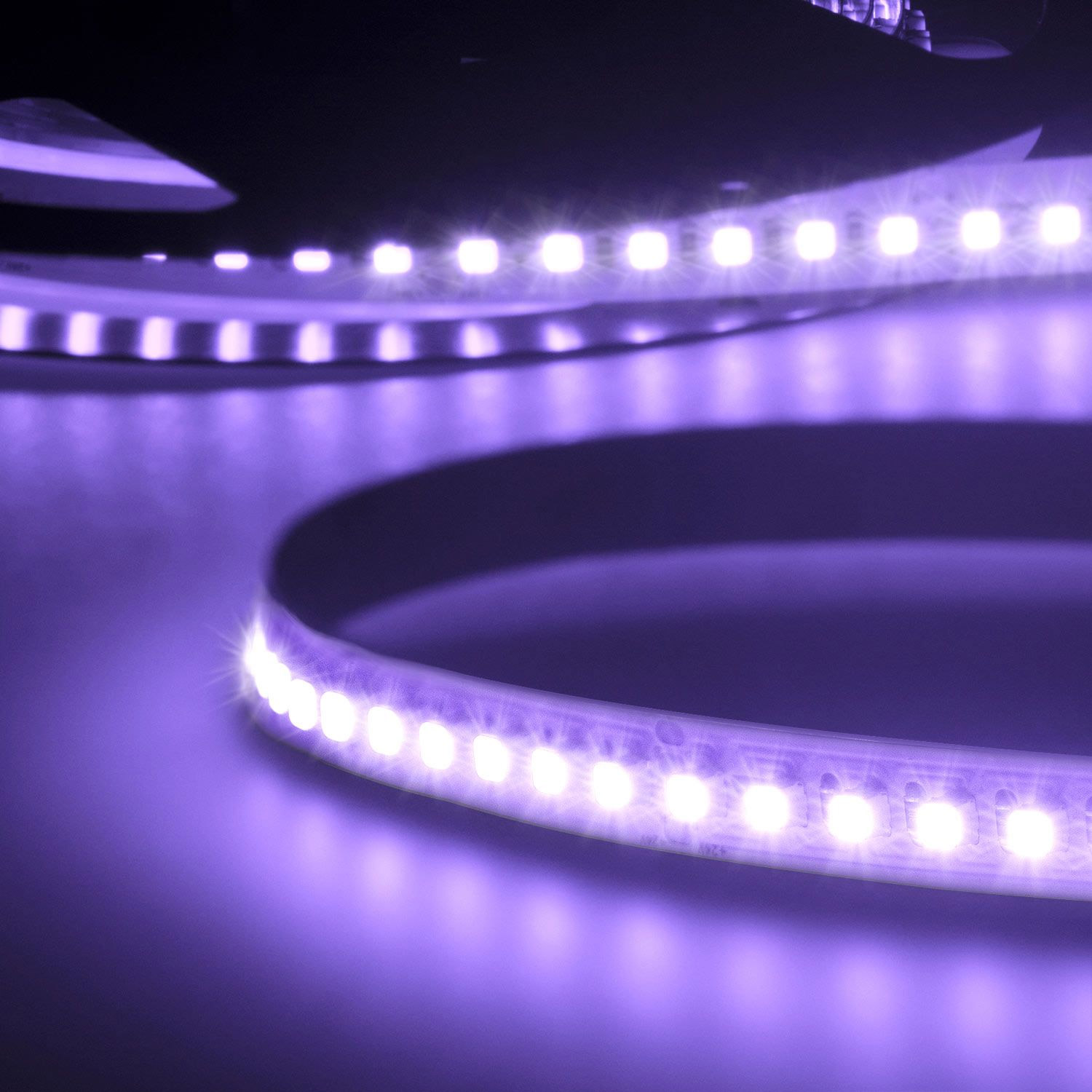

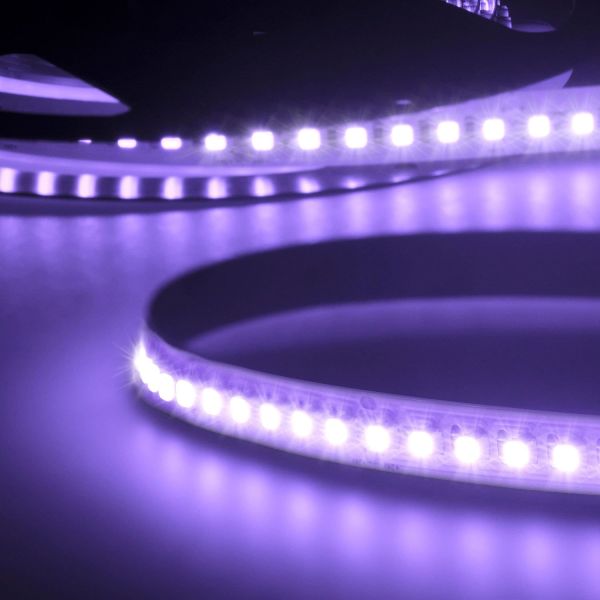

ISOLED LED HEQ HighPower RGB flex stripe, 24V, 28,8W, IP20
€276.87 *
Availability:
Currently not available.
Expected to be available again in 4 weeks.
Expected to be available again in 4 weeks.
Currently not available
Item number: 111002520
EAN: 9009377039607
LED HEQ HighPower RGB flex stripe, 24V, 28,8W, IP20 Length: 5000mm Width: 12mm... more
All information about the product:
"ISOLED LED HEQ HighPower RGB flex stripe, 24V, 28,8W, IP20"
LED HEQ HighPower RGB flex stripe, 24V, 28,8W, IP20
| Length: | 5000mm |
| Width: | 12mm |
| Height: | 3mm |
| Net weight: | 140g |
| LED type: | 600xSMD3535 |
| Nominal voltage: | 24V DC |
| Rated power: | 28,8 W/m |
| Colour temperature: | RGB |
| Beam angle: | 120° |
| Luminous flux: | RGBlm |
| Lifetime: | 30000h |
| Switching cycles: | 30000 |
| Protection class: | IP20 |
| Energy efficiency class: | A+ |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white |
| Incl. illuminant: | No |
| Special features: | Separation point: 50mm | Pitch (chip center-center): 8.33mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 3m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile with a mass of at least 140gr/m required! |
