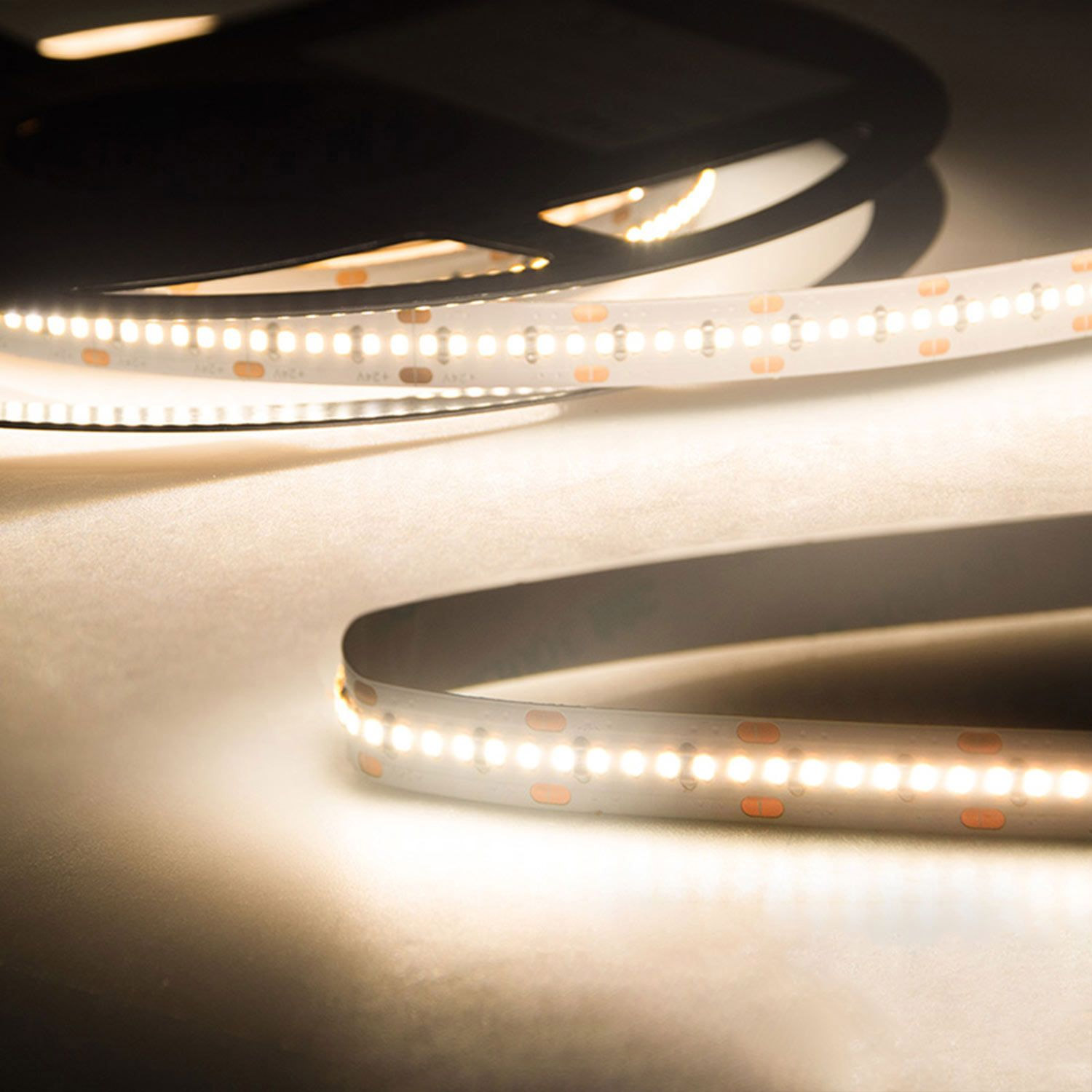

ISOLED LED CRI930 Linear flex stripe, 24V, 22W, IP20, warm white, 20m roll

€475.21 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111002985
EAN: 9009377043369
LED CRI930 Linear flex stripe, 24V, 22W, IP20, warm white, 20m roll Length: 20000mm... more
All information about the product:
"ISOLED LED CRI930 Linear flex stripe, 24V, 22W, IP20, warm white, 20m roll"
LED CRI930 Linear flex stripe, 24V, 22W, IP20, warm white, 20m roll
Length:20000mm
Width:10mm
Height:3mm
Net weight:278g
LED type:6000xSMD2115
Nominal voltage:24V DC
Rated power:22 W/m
Colour temperature:3000K
Beam angle:120°
Light intensity:9301cd
Colour rendering:> 93 CRI
Lifetime:50000h
Switching cycles:30000
Protection class:IP20
Energy efficiency class:A+
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Incl. illuminant:No

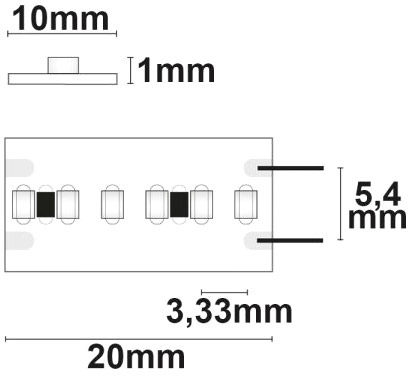

Special features:Separation point: 20mm | Pitch (chip center-center): 3.33mm | 1 roll= 20m | Length Tolerance 1% | max. flex band length per feed-in: 3m | Clean and degrease the substrate before gluing! Do not replace it again!
