ISOLED LED CRI930 Linear flex stripe, 24V, 15W, IP20, warm white, 20m roll
€356.21 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111003855
EAN: 9009377049835
LED CRI930 Linear flex stripe, 24V, 15W, IP20, warm white, 20m roll Length: 20000mm... more
All information about the product:
"ISOLED LED CRI930 Linear flex stripe, 24V, 15W, IP20, warm white, 20m roll"
LED CRI930 Linear flex stripe, 24V, 15W, IP20, warm white, 20m roll

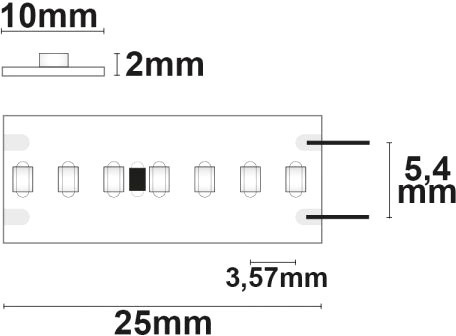

Length: | 20000mm |
Width: | 10mm |
Height: | 2mm |
Net weight: | 400g |
LED type: | 5600xSMD2115 |
Nominal voltage: | 24V DC |
Rated power: | 15 W/m |
Colour temperature: | 3000K |
Beam angle: | 120° |
Light intensity: | 2552cd |
Colour rendering: | > 92 CRI |
Lifetime: | 50000h |
Switching cycles: | 30000 |
Protection class: | IP20 |
Energy efficiency class: | A+ |
Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
Material: | PCB copper/white |
Incl. illuminant: | No |
Special features: | Separation point: 25mm | Pitch (chip center-center): 3.57mm | 1 roll= 20m | Length Tolerance 1% | max. flex band length per feed-in: 5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required! |
Further links
We will be happy to advise you!
You can reach us:
Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Downloads for the product:
"ISOLED LED CRI930 Linear flex stripe, 24V, 15W, IP20, warm white, 20m roll"
Document type | File size | |
EPREL-Product data sheet
(0.25 MB)
|
0.25 MB |
