ISOLED LED CRI940 Linear flex stripe, 24V, 15W, IP20, neutral white, 20m roll

€356.21 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111003865
EAN: 9009377049873
LED CRI940 Linear flex stripe, 24V, 15W, IP20, neutral white, 20m roll Length: 20000mm... more
All information about the product:
"ISOLED LED CRI940 Linear flex stripe, 24V, 15W, IP20, neutral white, 20m roll"
LED CRI940 Linear flex stripe, 24V, 15W, IP20, neutral white, 20m roll

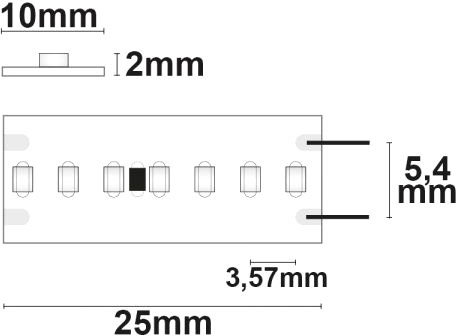

Length:20000mm
Width:10mm
Height:2mm
Net weight:400g
LED type:5600xSMD2115
Nominal voltage:24V DC
Rated power:15 W/m
Colour temperature:4000K
Beam angle:120°
Light intensity:2496cd
Colour rendering:> 95 CRI
Lifetime:50000h
Switching cycles:30000
Protection class:IP20
Energy efficiency class:A+
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Incl. illuminant:No
Special features:Separation point: 25mm | Pitch (chip center-center): 3.57mm | 1 roll= 20m | Length Tolerance 1% | max. flex band length per feed-in: 5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required!
