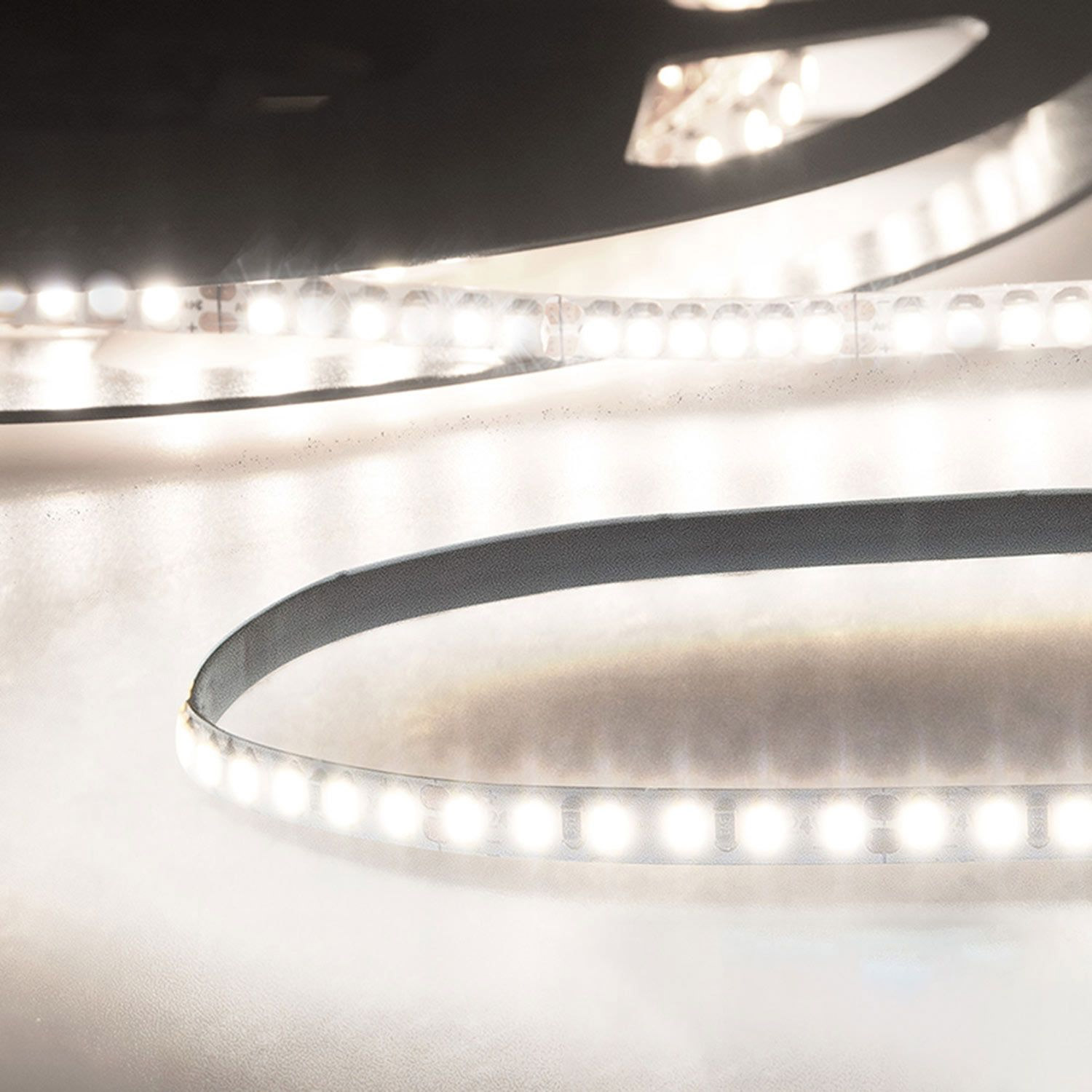

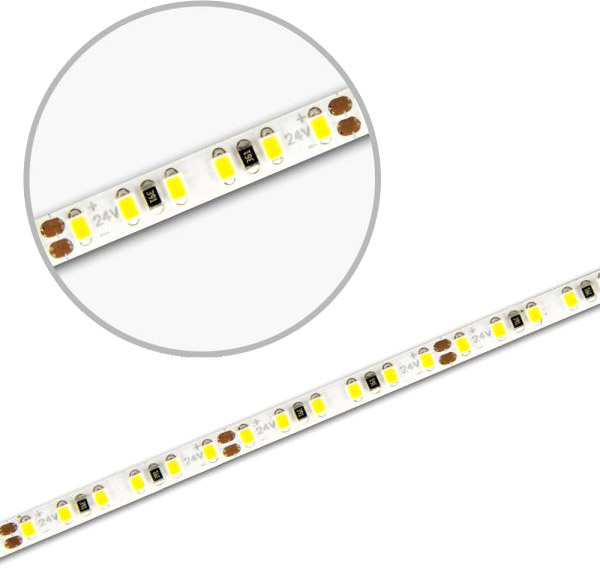

ISOLED LED CRI940 Micro Linear flex stripe, 24V, 10W, IP20, neutral white
€91.23 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111004835
EAN: 9009377054679
LED CRI940 Micro Linear flex stripe, 24V, 10W, IP20, neutral white Length: 5000mm Width:... more
All information about the product:
"ISOLED LED CRI940 Micro Linear flex stripe, 24V, 10W, IP20, neutral white"
LED CRI940 Micro Linear flex stripe, 24V, 10W, IP20, neutral white
| Length: | 5000mm |
| Width: | 4mm |
| Height: | 1mm |
| Net weight: | 90g |
| LED type: | 1200xSMD |
| Nominal voltage: | 24V DC |
| Rated power: | 10 W/m |
| Colour temperature: | 4000K |
| Beam angle: | 120° |
| Light intensity: | 1414cd |
| Colour rendering: | > 93 CRI |
| Lifetime: | 50000h |
| Switching cycles: | 30000 |
| Protection class: | IP20 |
| Energy efficiency class: | A+ |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white |
| Incl. illuminant: | No |

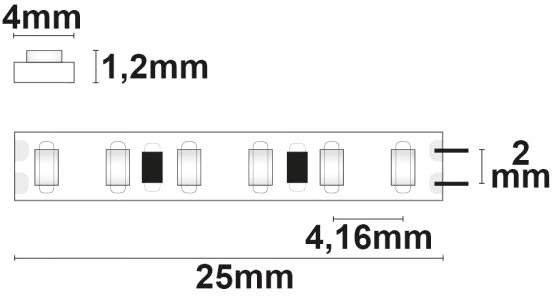

| Special features: | Separation point: 25mm | Pitch (chip center-center): 4.16mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required! |
