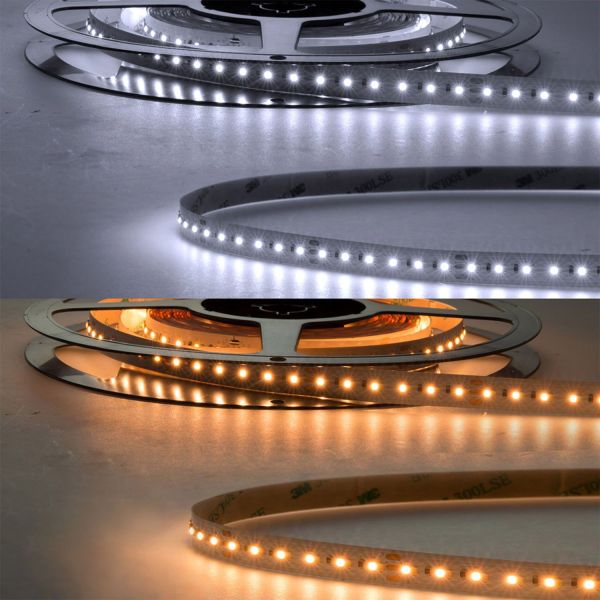

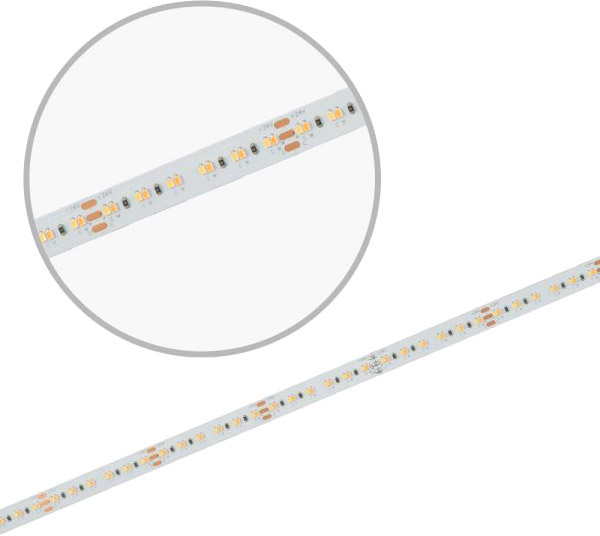

ISOLED LED CRI923/950 flex stripe, 24V, 20W, IP20, dynamic white

€118.21 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111005190
EAN: 9009377057076
LED CRI923/950 flex stripe, 24V, 20W, IP20, dynamic white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED CRI923/950 flex stripe, 24V, 20W, IP20, dynamic white"
LED CRI923/950 flex stripe, 24V, 20W, IP20, dynamic white

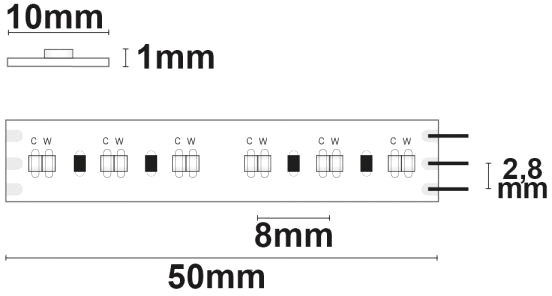

Length:5000mm
Width:10mm
Height:3mm
Net weight:96g
LED type:1200xSMD2115
Nominal voltage:24V DC
Rated power:20 W/m
Colour temperature:2300-5000K
Beam angle:120°
Light intensity:2499cd
Colour rendering:> 90 CRI
Lifetime:50000h
Switching cycles:30000
Protection class:IP20
Energy efficiency class:A+
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Incl. illuminant:No
Special features:Separation point: 50mm | Pitch (chip center-center): 4.16mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 10m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required!
