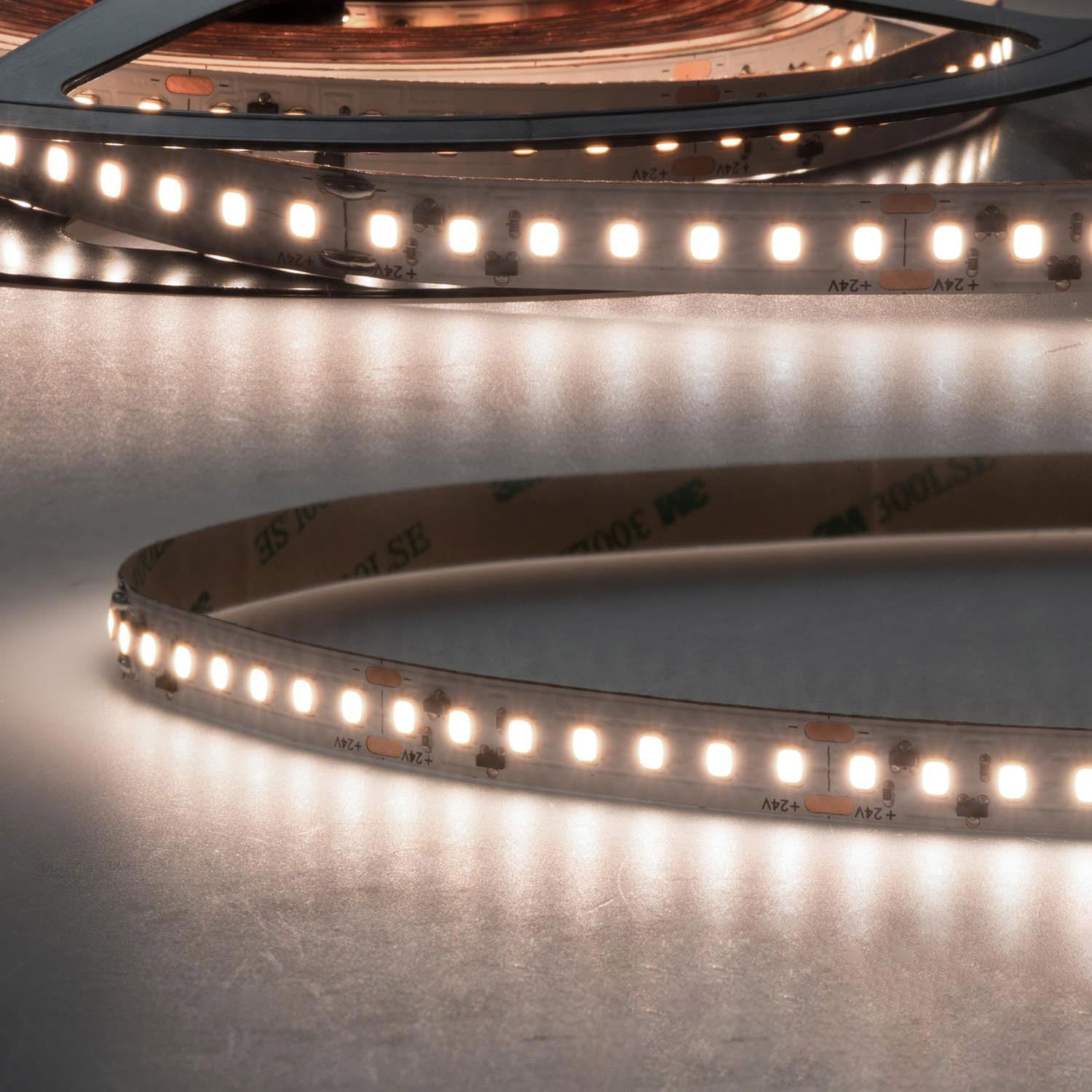

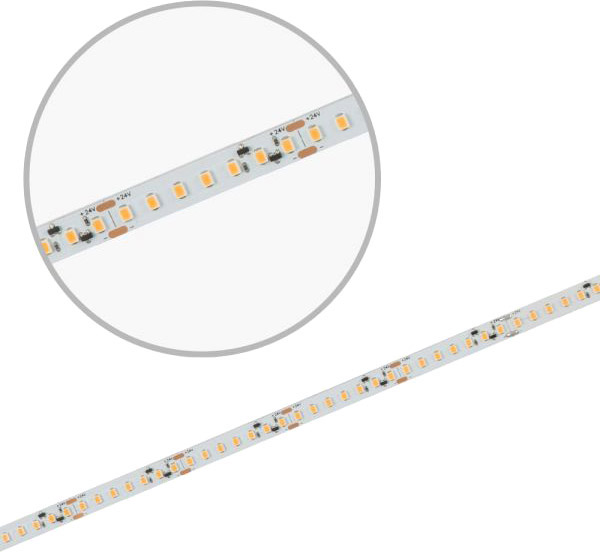

ISOLED LED CRI940 full spectrum flex tape, 24V, 17W, IP20, neutral white
€126.14 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111005205
EAN: 9009377057120
LED CRI940 full spectrum flex tape, 24V, 17W, IP20, neutral white Length: 5000mm Width:... more
All information about the product:
"ISOLED LED CRI940 full spectrum flex tape, 24V, 17W, IP20, neutral white"
LED CRI940 full spectrum flex tape, 24V, 17W, IP20, neutral white
| Length: | 5000mm |
| Width: | 10mm |
| Height: | 2mm |
| Net weight: | 96g |
| LED type: | 800SMDs |
| Nominal voltage: | 24V DC |
| Rated power: | 17 W/m |
| Colour temperature: | 4000K |
| Beam angle: | 120° |

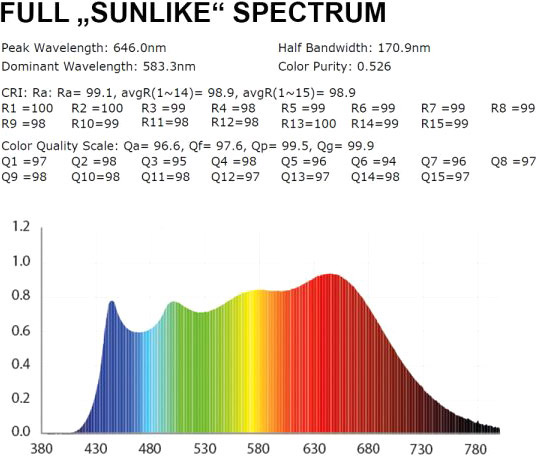

| Colour rendering: | > 99 CRI |
| Lifetime: | 50000h |
| Switching cycles: | 30000 |
| Protection class: | IP20 |
| Energy efficiency class: | A+ |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white |
| Incl. illuminant: | No |

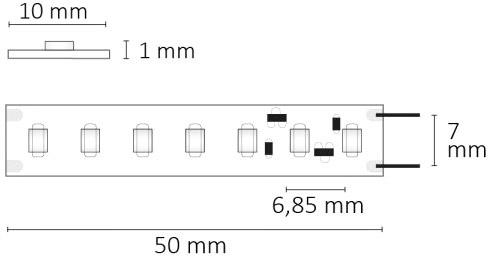

| Special features: | Separation point: 50mm | Pitch (chip center-center): 7.14mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 10m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required! |
