ISOLED LED RGB Micro flex stripe, 24V, 12W, IP20
€126.14 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111005400
EAN: 9009377059803
LED RGB Micro flex stripe, 24V, 12W, IP20 Length: 5000mm Width: 8mm Height: 2mm... more
All information about the product:
"ISOLED LED RGB Micro flex stripe, 24V, 12W, IP20"

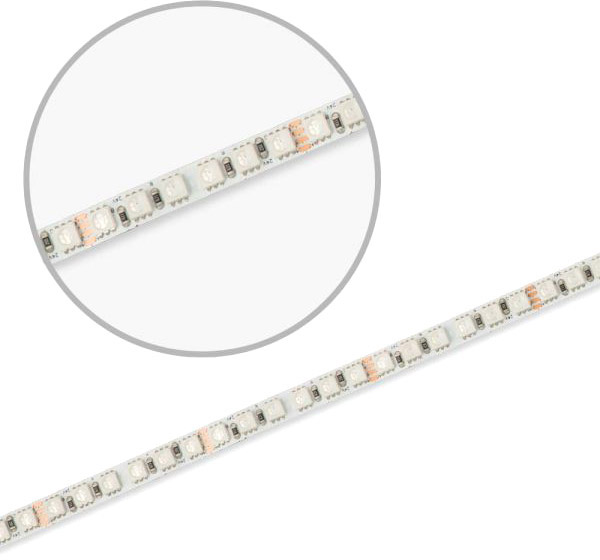

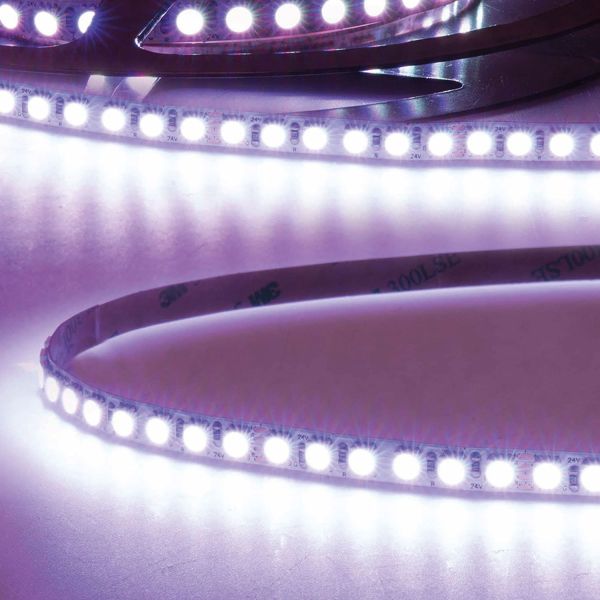

LED RGB Micro flex stripe, 24V, 12W, IP20
| Length: | 5000mm |
| Width: | 8mm |
| Height: | 2mm |
| Net weight: | 122g |
| LED type: | 600 |
| Nominal voltage: | 24V DC |
| Rated power: | 12 W/m |
| Colour temperature: | RGB |
| Beam angle: | 120° |
| Luminous flux: | RGBlm |
| Lifetime: | 25000h |
| Switching cycles: | 30000 |
| Protection class: | IP20 |
| Energy efficiency class: | A |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white |
| Incl. illuminant: | No |

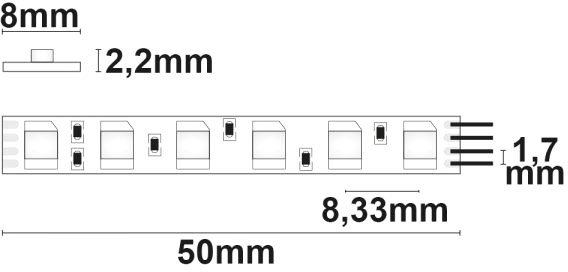

| Special features: | Separation point: 50mm | Pitch (chip center-center): 8.33mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required! |
