ISOLED LED AQUA RGB Linear flex stripe, 24V, 12W, IP67, 10m roll
€356.21 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111005415
EAN: 9009377059858
LED AQUA RGB Linear flex stripe, 24V, 12W, IP67, 10m roll Length: 10000mm Width: 12mm... more
All information about the product:
"ISOLED LED AQUA RGB Linear flex stripe, 24V, 12W, IP67, 10m roll"
LED AQUA RGB Linear flex stripe, 24V, 12W, IP67, 10m roll

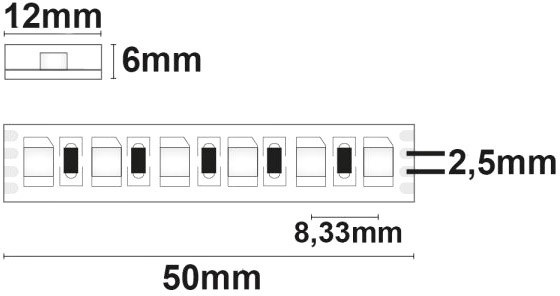

| Length: | 10000mm |
| Width: | 12mm |
| Height: | 6mm |
| Net weight: | 960g |
| LED type: | 1200 |
| Nominal voltage: | 24V DC |
| Rated power: | 12 W/m |
| Colour temperature: | RGB |
| Beam angle: | 120° |
| Luminous flux: | RGBlm |
| Light intensity: | 745cd |
| Lifetime: | 25000h |
| Switching cycles: | 30000 |
| Protection class: | IP67 |
| Energy efficiency class: | A |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white, silicone |
| Incl. illuminant: | No |
| Special features: | Separation point: 50mm | Pitch (chip center-center): 8.33mm | 1 roll= 10m | Length Tolerance 1% | max. flex band length per feed-in: 10m (NEW since reinforced PCB) | Clean and degrease the substrate before gluing! Do not replace it again! |
